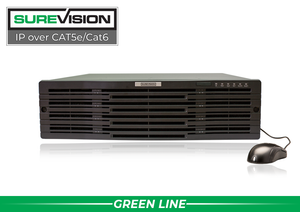

128 Channel IP Network Video Recorder with 8 TB Hard Drive

Superior Image Quality and Performance

Experience the next level of video monitoring with our 128 Channel EXTREME Series enterprise-level network video recorder. Powered by an Industrial grade processor, this top-of-the-line NVR is designed to deliver exceptional image quality with resolutions of up to 32 megapixels. Capture every detail with astonishing clarity, ensuring that no critical moment goes unnoticed.

With H.265 Compression technology, our NVR optimizes storage space, saving up to 40% of hard drive capacity. This means you can store more footage without compromising on image quality. Plus, with eight hot swappable hard drive bays, you have the flexibility to expand your storage when needed.

Effortless Integration and Multi-User Access

Setting up your surveillance system has never been easier. Simply connect a PoE network switch (sold separately) to the back of the NVR or anywhere on the same network, and effortlessly plug your cameras into the switch. Enjoy the convenience of power and video transmission over a single Ethernet cable.

Monitor and playback video from the NVR on various devices, including your PC, Mac, smartphone, and tablet. Our 100% free software and apps offer multi-user access, allowing you to view your footage anytime and anywhere. Stay connected and in control, no matter where you are.

Unmatched Reliability and Comprehensive Support

We understand the importance of safeguarding your video footage. That's why our EXTREME Series 128 channel NVR comes equipped with RAID functionality. Configure your NVR to support RAID 0/1/5/10, ensuring redundancy and data protection for your critical video recordings.

When you choose our products, you not only get cutting-edge technology but also peace of mind. We provide a pre-installed 8TB surveillance-grade hard drive and a step-by-step user manual to ensure a seamless setup process. And to further demonstrate our commitment to quality, all our superior products come with a 3-year warranty, free USA technical support, and a 100% money-back guarantee.

Technical Specification
System
Main Processor		Industrial-grade processor
Operating System		Embedded Linux
Operation Interface		Web/local GUI
Perimeter Performance AI by Recorder (Number of Channels)		24 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)		64 channels
Performance		24 channels
Face Attributes		6 attributes: Gender, age, glasses, expression, mouth mask, and beard
Face Detection Performance of AI by Recorder (Number of Channels)		4 channels (up to 12 face images/second/channel)
Face Detection Performance of AI by Camera (Number of Channels)		64 channels
Face Database Capacity		Up to 40 face databases with 300,000 images, with a total capacity of 48 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels)		1. 20 channels FD (by camera) + FR (by recorder), image stream: 20 face images/s 2. 4 channels FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels		64 channels
SMD Plus by Recorder		32-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera		64 channels
Video Metadata By Camera
Metadata Performance of AI by Recorder (Number of Channels)		8 channels
Metadata Performance of AI by Camera (Number of Channels)		32 channels
Human Attributes		Top color, top type, hat, bag, age, gender and umbrella
Motor Vehicle Attributes		License plate, plate color, vehicle model, vehicle logo, plate color, ornament, calling,
Non-motor Vehicle		Vehicle model, vehicle color, number of persons, helmet.
AI Search		Support search target video by metadata
Vehicle License Plate Comparison
ANPR by Camera (Number of Channels)		32 channels
License Plate Database Capacity		Blocklist and allowlist: 20,000
Audio and Video
Access Channel		128
Network Bandwidth		AI disabled: 1024 Mbps incoming, 1024 Mbps recording and 800 Mbps outgoing AI enabled: 512 Mbps incoming, 512 Mbps recording and 400 Mbps outgoing
Resolution		32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1
Decoding Capability		2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 8-channel 8 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps; 72-channel 720P@30 fps 160-channel D1@30 fps
Video Output		2-channel VGA, 4-channel HDMI video output. Simultaneous mode: max. resolution of VGA1 and VGA2 is 1080p, max. resolution of HDMI1 and HDMI2 is 4K max. resolution of HDMI3 is 8K max. resolution of HDMI4 is1080p Heterogeneous mode: Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 max. resolution of VGA1 and VGA2 is 1080p, max. resolution of HDMI1, HDMI2 and HDMI3 is 4K max. resolution of HDMI4 is 1080p
Multi-screen Display		Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16/25/36
Third-party Camera Access	ONVIF; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression
Video		Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; MJPEG
Audio		G.711a; G.711u; PCM; G726
Network
Network Protocol		HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; ISCSI
Mobile Phone Access		iOS, Android
Interoperability		ONVIF (profile T/S/G), CGI, SDK
Browser		Chrome, IE9 or later, Firefox
Record Playback
Multi-channel Playback		Up to 16 channels
Record Mode		Manual, Schedule (General, MD (Motion Detection), Alarm, MD & Alarm, Intelligent, POS)
Storage Method		Local HDD and network
Backup		Portable hard drive, eSATA disk, burner, USB device and network
Playback Function		1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off
Storage
Disk Group		Support
Raid Support		RAID 0/1/5/6/10
Hot Swapping		Support
Alarm
General Alarm		Motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm
Anomaly Alarm		Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan
Intelligent Alarm		Face detection; face recognition; perimeter protection (intrusion and tripwire); SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat map
Alarm Linkage		Record, snapshot, IPC external alarm output, buzzer, log, preset, email
External Port
Audio Input		1 channel, RCA connector
Audio Output		2 channel, RCA connector
HDD		8 SATA III ports, up to 10 TB for a single HDD
Alarm Input		16 channels
Alarm Output		8 channels
eSATA		1 eSATA
RS-232		1 channel, used to debug and pass through serial data
RS-485		1 channel, used to control PTZ, and it supports multiple protocols
USB		4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)
HDMI		4
VGA		2
Network		2 (10/100/1000/2500) Mbps Ethernet port, RJ-45
General Parameter
Power Supply		AC100–240V, 50–60 Hz
Power Consumption		< 18 W (Without HDD)
Net Weight		6.4 kg (14.11 lb) (without HDD)
Gross Weight		8.59 kg (18.94 lb) (without HDD)
Product Dimensions		440.0 mm × 458.4 mm x 94.9 mm (17.32" × 18.05" × 3.57") (W × D × H)
Package Dimensions		571.0 mm × 499.0 mm × 211.0 mm (22.48" × 19.65" × 8.31")(W × D × H)
Operating Conditions		–10°C to +55°C (+14°F to +131°F), +35°C (+95°F) when raid enabled
Storage Conditions		0°C to +40°C (+32°F to +104°F)
Operating Humidity		10%–93% (RH)
Storage Humidity		30%–85% (RH)
Operating Altitude		3000 m (9843 ft)
Certifications		FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014+A11:2017

NVR FEATURES

4K Ultra High Definition
External POE Switch (Up to 128 Cameras)
Remote Viewing – No Monthly Fees
H.265 High Video Compression
1024Mbps Incoming Bandwidth
Supports Raid 0/1/5/6/10
HDMI and VGA Display Output
8 Hard Drive Bays
