SureVision NVR Features Video
16 Camera 4K IP Security Camera System with Wide Angle Viewing, Audio & Night Vision
This complete 16 camera 4K IP security camera system provides professional wired surveillance for larger homes, businesses, warehouses, schools, churches, retail stores, apartment properties, offices, and commercial facilities. It includes sixteen SureVision 8MP PoE bullet cameras with wide-angle viewing, built-in microphones, infrared night vision, a 16-channel NVR, Cat5e camera cables, local recording, remote viewing, and no monthly fees.
Your complete 16 camera security camera system includes a free 22-inch HD SureVision monitor, giving you a dedicated display for live viewing, playback, system management, and recorded video review.
Camera & NVR Performance Highlights
A quick look at the most important camera and recorder features before reviewing the complete specifications below.
Camera Features
- 8MP / 4K Ultra HD resolution
- 2.8mm wide-angle lens
- 107° horizontal field of view
- Built-in microphone for audio
- Up to approximately 100ft infrared night vision
- True 120dB Wide Dynamic Range
- Ultra 265 / H.265 / H.264 compression
- Weatherproof IP67 metal housing
- Power over Ethernet installation
- ONVIF Profile S, G and T support
Recognize: Up to 41.3ft
Observe: Up to 82.7ft
Detect: Up to 206.7ft
NVR Features
- 16 IP camera channels
- Built-in PoE camera connections
- Local surveillance recording
- Continuous, scheduled and motion recording
- HDMI and VGA monitor outputs
- Timeline playback and recorded video search
- Secure evidence export
- Remote viewing from phone, PC and Mac
- H.265 / H.264 video compression
- No required monthly recording fees
Professional 4K Wide Angle IP Cameras with Audio
The sixteen included SureVision SV-B8IR-N bullet cameras deliver detailed 4K surveillance for larger properties that need dependable coverage across entrances, parking areas, offices, warehouses, hallways, loading zones, inventory spaces, and outdoor perimeters.
Each camera provides 8MP resolution, a 2.8mm wide-angle lens, built-in microphone audio, True 120dB WDR, approximately 100ft infrared night vision, PoE installation, and weatherproof IP67 protection.
Each camera connects to the recorder with one Cat5e cable for both power and video, creating a cleaner and more dependable installation than basic wireless camera systems.

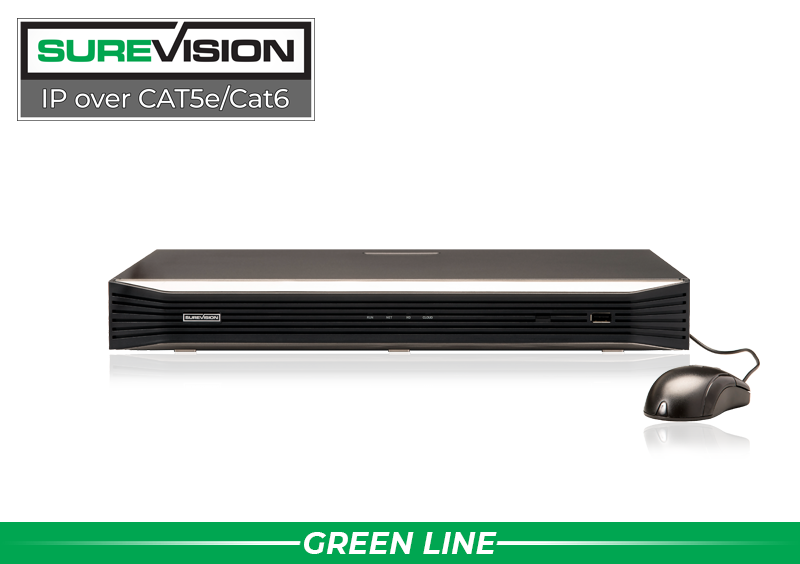

SureVision 16-Channel PoE NVR
The included SureVision NVR powers and records all sixteen cameras while giving owners and managers one central place to monitor multiple areas, search footage, organize recordings, and export evidence.
Continuous, scheduled, motion-triggered, and event recording options help customize the system around your property and operating hours.
Remote viewing is included, and because footage records locally, you maintain direct control of your recordings without monthly cloud-storage fees.
What This 16 Camera 4K Security Camera System Includes & Does

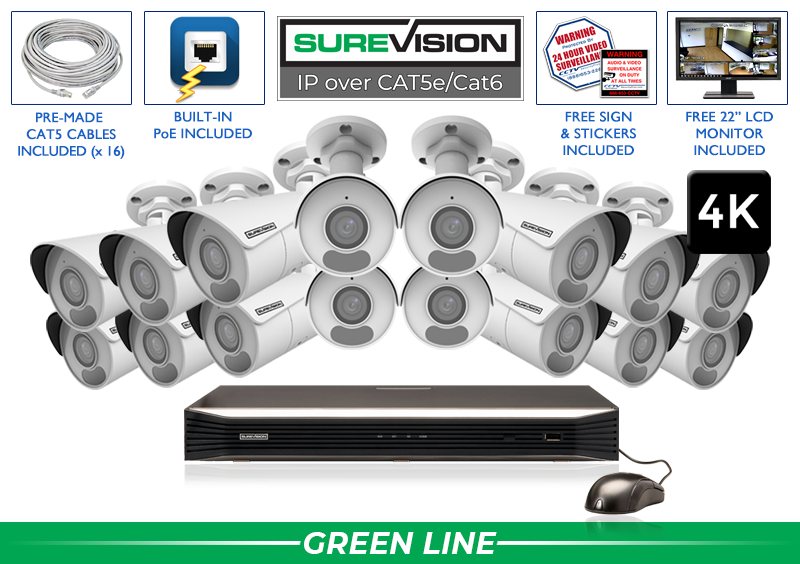

This complete 16 camera 4K IP security system includes sixteen professional SureVision bullet cameras, a matching 16-channel PoE NVR, pre-installed surveillance storage, Cat5e installation cables, a free 22-inch HD SureVision monitor, free remote viewing apps, a quick-start guide, surveillance sign and stickers, and unlimited USA-based support.
The cameras capture detailed wide-angle video and synchronized audio while the NVR records, stores, organizes, and manages footage from every area. Watch live video, search recordings, review incidents, export evidence, and remotely monitor your property from compatible phones and computers.
This system is designed for customers who need professional coverage across multiple entrances, hallways, work areas, parking zones, storage rooms, loading areas, exterior walls, and other important locations without relying on consumer Wi-Fi cameras or monthly cloud subscriptions.
Everything Included with Your 16 Camera System
| Feature | Specification |
|---|---|
| SureVision Model | SV-B8IR-N |
| Camera Type | 4K 8MP mini fixed bullet IP security camera |
| Maximum Resolution | 8MP / 4K Ultra HD, 3840 × 2160 |
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | Color: 0.01 Lux at F1.6 with AGC on; 0 Lux with infrared on |
| Day / Night | IR-cut filter with automatic switching |
| Shutter | Auto / Manual, 1 to 1/100000 second |
| Adjustment Angle | Pan 0°–360°; tilt 0°–90°; rotate 0°–360° |
| Signal-to-Noise Ratio | Greater than 52 dB |
| Wide Dynamic Range | True 120 dB WDR |
| Lens and Viewing Angle | |
| Focal Length | 2.8mm fixed lens |
| Aperture | F1.6 |
| Horizontal Field of View | 107.0° |
| Vertical Field of View | 59.7° |
| Diagonal Field of View | 111.5° |
| Approximate Viewing Distances | |
| Detect | Up to 206.7 ft. |
| Observe | Up to 82.7 ft. |
| Recognize | Up to 41.3 ft. |
| Identify | Up to 20.7 ft. |
| Night Vision and Audio | |
| Infrared Distance | Up to approximately 100 ft. |
| Infrared Wavelength | 850 nm |
| Built-In Microphone | Supported |
| Audio Compression | G.711U and G.711A |
| Two-Way Audio | Not supported |
| Video and Network | |
| Video Compression | Ultra 265, H.265, H.264 and MJPEG |
| Main Stream | 8MP at 15 fps; lower resolutions support higher frame rates |
| Video Bitrate | 128 Kbps to 16 Mbps |
| Image Features | 2D/3D DNR, Smart IR, HLC, BLC, defog, privacy mask, OSD and ROI |
| MicroSD Storage | Up to 512GB |
| Integration | ONVIF Profiles S, G and T; API and SDK |
| Network Interface | RJ45 10/100 Base-TX Ethernet |
| Power, Construction and Environment | |
| Power | 12V DC or PoE IEEE 802.3af |
| Maximum Power Consumption | 3.7W |
| Construction | Metal |
| Weather Protection | IP67 |
| Operating Temperature | -22°F to 140°F |
| Dimensions | 7.5 × 2.9 × 2.8 inches |
| Weight | 0.95 lb. |
| Certifications | CE, FCC, UL, CUL, RoHS, WEEE and IP67 |
| Feature | Specification |
|---|---|
| Recorder Type | SureVision 16-channel PoE Network Video Recorder |
| Channel Capacity | 16 IP camera channels |
| Cameras Included | 16 cameras |
| Video Compression | H.265 and H.264 |
| Recording Modes | Continuous, scheduled, motion-triggered and event recording |
| Playback | Timeline playback, recorded video search and evidence export |
| Storage | Internal surveillance hard drive for local recording |
| Remote Viewing | iPhone, Android, PC and Mac remote access |
| Video Output | HDMI and VGA monitor outputs |
| Networking | Ethernet LAN / WAN access for remote viewing |
| PoE | Built-in PoE connections for power and video over one cable |
| Included Monitor | SureVision SV-LCD22-N 22-inch HD monitor |
| Ownership | No monthly fees; local recording ownership |
