64 Camera 4K Bullet Security Camera System

Model: SV-64IPBIR8-N
64 Camera 4K Bullet Security Camera System
superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100

Select your options:

$19,134.99
Save 25% at Checkout
Enter code UPGRADE25 at checkout
Price After Coupon
The discount is applied only after the coupon code is entered during checkout.

SureVision NVR Features Video



Complete 64 Camera Enterprise Security Camera System with Cameras and Recorder



This professional 64 camera security camera system is designed for enterprise, industrial, institutional, and multi-building properties that require comprehensive surveillance across a large number of indoor and outdoor areas. The complete SureVision package includes sixty-four SV-B8IR-N 4K 8MP bullet security cameras with built-in microphones, a 64-channel enterprise network video recorder, two 16-port PoE network switches, a free 22-inch LCD monitor, an installed 8TB surveillance-grade hard drive, Cat5e installation cabling, local recording, remote access, and no monthly fees.

A 64-camera system is well suited for warehouses, distribution centers, schools, churches, apartment communities, office campuses, large retail locations, industrial sites, municipal facilities, and properties with multiple buildings, parking areas, entrances, corridors, loading zones, inventory areas, and perimeter approaches. Every camera uses a stable wired network connection rather than relying on consumer Wi-Fi.

At the center of the system is a professional SureVision enterprise NVR that centrally manages live viewing, local recording, playback, recorded video search, remote access, and video export. The included external PoE switches help distribute camera power and network connectivity across the property while the recorder maintains centralized control of the complete surveillance layout.



SureVision 64 Camera 4K Ultra HD PoE Security Camera System with Audio and Enterprise NVR



This 64 camera 4K PoE security camera system provides enterprise-scale coverage while preserving the installation and management advantages of professional IP surveillance. It is built for buyers who need dependable 24/7 monitoring across complex layouts and who want direct ownership of their recordings instead of a cloud-only subscription platform.

Each camera connects through Cat5e cabling for power and video. The two included 16-port PoE network switches help deploy cameras throughout larger facilities and across multiple network locations while the enterprise recorder manages recording and playback from one central interface.

Browse all security camera systems, compare SureVision IP security cameras, or view compatible NVR recorders.



Why Professionals Choose This System


  • Complete 64-camera coverage for enterprise and multi-building properties
  • Ultra HD 4K (8MP) video with built-in microphones
  • True 120 dB WDR for difficult backlit scenes
  • Smart IR night vision up to approximately 100 feet
  • Professional external PoE architecture for large deployments
  • Local 24/7 NVR recording with no required monthly cloud fees
  • Remote viewing from iPhone, Android, PC, and Mac
  • 3-year warranty and lifetime U.S.-based technical support

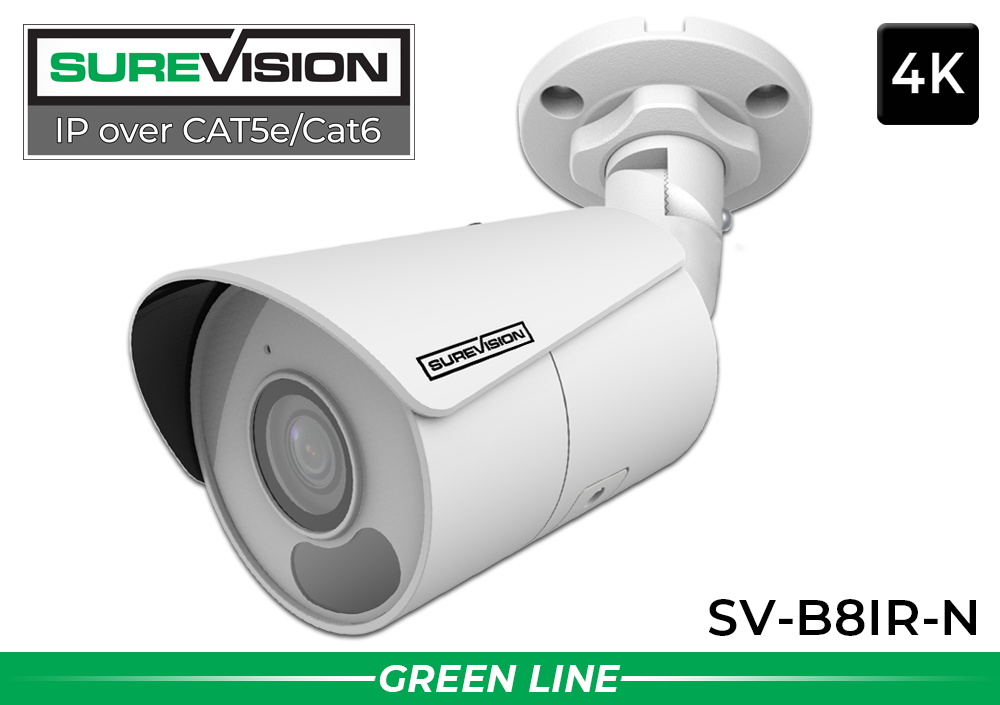

Professional SV-B8IR-N 4K Bullet Security Cameras



The system includes sixty-four professional SureVision SV-B8IR-N 4K IP bullet security cameras. Each camera captures 8MP 4K Ultra HD video at up to 3840 × 2160 resolution, uses a 2.8mm fixed lens with a wide 107° horizontal field of view, includes a built-in microphone, supports True 120 dB Wide Dynamic Range, and provides Smart IR night vision up to approximately 100 feet.

The SV-B8IR-N provides four times the pixel detail of standard 1080p video. True 120 dB Wide Dynamic Range helps preserve important image detail in difficult backlit scenes, while the IP67 metal housing makes the camera suitable for entrances, hallways, warehouses, offices, loading areas, parking lots, building exteriors, fenced areas, and perimeter surveillance.

The directional bullet design is ideal for visible perimeter protection. PoE connectivity carries power and video through one Cat5e cable, providing a clean and dependable wired installation without separate power runs or reliance on unstable wireless connections.

To compare other styles, shop all SureVision IP cameras.

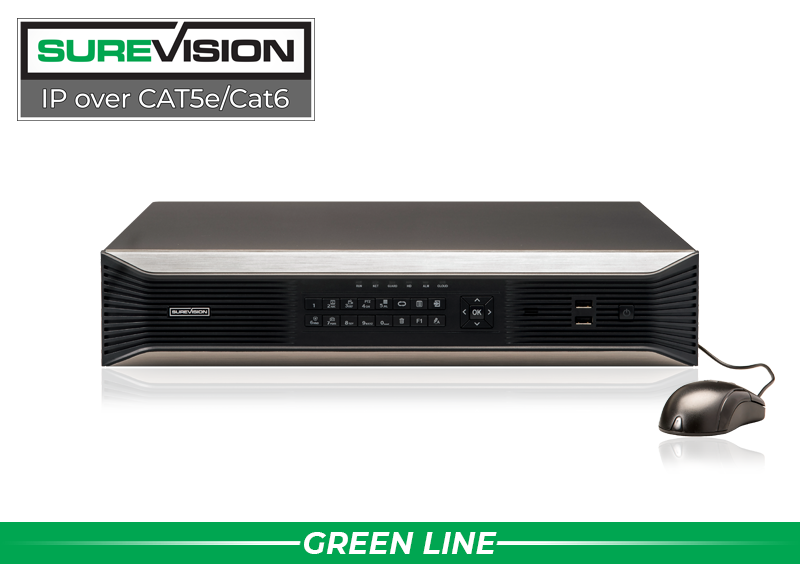

Enterprise Network Video Recorder (NVR)



The included 64-channel enterprise network video recorder is the command center for the complete surveillance system. It manages live viewing, recording, playback, recorded video search, remote access, video export, and storage for all sixty-four cameras.

This package includes two 16-port PoE network switches to provide camera power and network connectivity across broader facilities. This architecture is especially useful for warehouses, campuses, industrial buildings, schools, apartment complexes, and multi-building properties where all cameras cannot be cabled directly to one central recorder location.

The NVR supports 4K-class recording and display, H.265 compression, continuous, scheduled, and motion-based recording, timeline playback, recorded video search, and remote viewing from phones, tablets, PCs, and Macs. Local storage gives the owner direct control of recordings without required monthly cloud-storage fees.

This package includes an installed 8TB surveillance-grade hard drive, two 16-port PoE network switches, and Cat5e camera cables for each camera. Call 888-653-2288 for assistance planning camera placement, switching, network layout, and video-retention requirements.



What’s Included with This System


  • 64 professional SureVision SV-B8IR-N 4K 8MP IP bullet security cameras with built-in microphones
  • 64-channel SureVision enterprise network video recorder
  • 8TB surveillance-grade hard drive installed
  • (2) 16-port PoE network switches

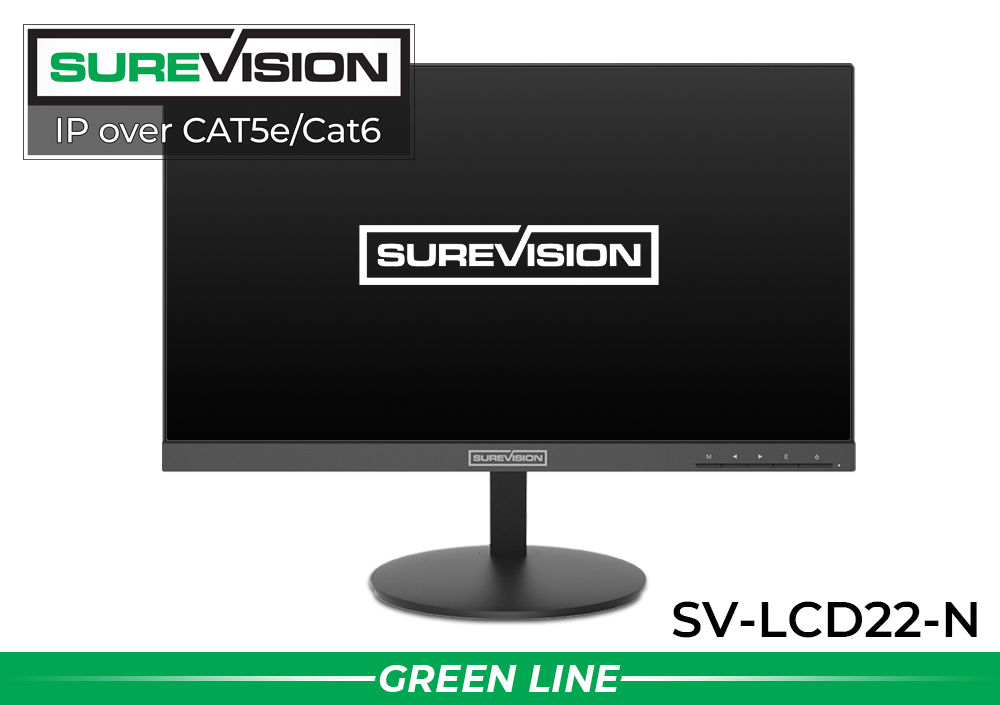

  • Free 22-inch LCD monitor
  • Cat5e camera cables for each camera
  • Free remote viewing software and mobile apps
  • Local recording with no required monthly fees
  • 3-year warranty
  • Lifetime U.S.-based technical support



SV-B8IR-N Camera Technical Specifications


FeatureSpecification
SureVision Model SV-B8IR-N
Camera Type 4K 8MP mini fixed bullet IP security camera
Maximum Resolution 8MP / 4K Ultra HD, 3840 × 2160
Image Sensor 1/2.7" CMOS
Minimum Illumination Color: 0.01 Lux at F1.6 with AGC on; 0 Lux with infrared on
Day / Night IR-cut filter with automatic switching (ICR)
Shutter Auto / Manual, 1 to 1/100000 second
Adjustment Angle Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Signal-to-Noise Ratio Greater than 52 dB
Wide Dynamic Range True 120 dB WDR
Lens & Viewing Angle
Focal Length 2.8mm fixed lens
Iris Type Fixed
Aperture F1.6
Horizontal Field of View 107.0°
Vertical Field of View 59.7°
Diagonal Field of View 111.5°
Approximate Distances
Detect Up to 206.7 ft. (63.0 m)
Observe Up to 82.7 ft. (25.2 m)
Recognize Up to 41.3 ft. (12.6 m)
Identify Up to 20.7 ft. (6.3 m)
Infrared Night Vision
Supplemental Light Infrared
Infrared Distance Up to 30 m (98.4 ft.); marketed as up to 100 ft.
Infrared Wavelength 850 nm
IR Control Auto / Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Profile Baseline, Main, and High profiles
Main Stream 8MP (3840 × 2160) at 15 fps; 5MP (2880 × 1620) at 25/20 fps; 4MP (2560 × 1440) at 25/20 fps; 3MP (2304 × 1296) at 30/25 fps; 1080p (1920 × 1080) at 30/25 fps
Sub Stream 720p (1280 × 720) at 30/25 fps; D1 (720 × 576) up to 30 fps; 640 × 360 up to 30 fps
Video Bitrate 128 Kbps to 16 Mbps
U-Code Supported
OSD Up to 4 OSD areas
Privacy Mask Up to 4 areas
Region of Interest Up to 8 areas
Video Streams Dual streams
Corridor Mode 9:16 supported
Image Processing
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction 2D / 3D DNR
Smart IR Supported
Image Flip Normal, vertical, horizontal, 180°, 90° clockwise, 90° counterclockwise
HLC Supported
BLC Supported
Defog Digital defog
Audio
Built-In Microphone Supported
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-Way Audio Not supported
Noise Suppression Supported
Sampling Rate 8 kHz
Storage
MicroSD Edge Storage Up to 512GB
Network Storage ANR and NAS via NFS
Network & Cybersecurity
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
Compatible Integration ONVIF Profiles S, G, and T; API; SDK
Users Up to 32 users with administrator, operator, and common-user levels
Security Password protection, strong-password support, HTTPS encryption, operation-log export, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE, and ONVIF digest authentication
Client Software Mobile app and Guard Station
Web Browser Support Plug-in live view: Internet Explorer 10+, Chrome 45+, Firefox 52+, Edge 79+; plug-in-free live view: Chrome 57+, Firefox 58+, Edge 16+
Interfaces
Network Interface 1 × RJ45 10/100 Base-TX Ethernet
Audio Input / Output Not available; built-in microphone included
Alarm Input / Output Not available
Serial Port Not available
Built-In Speaker Not available
Wi-Fi Not available
Video Output Not available
Reset Button Not available
Power, Construction & Environmental
Power 12V DC ±25% or PoE IEEE 802.3af
Maximum Power Consumption 3.7 W
Power Interface Ø5.5mm coaxial power connector
Construction Metal
Weather Protection IP67
Operating Temperature -30°C to 60°C (-22°F to 140°F)
Operating Humidity Up to 95% RH, non-condensing
Storage Environment -30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing
Surge Protection 4 kV
Dimensions 191 × 73 × 71 mm (7.5 × 2.9 × 2.8 in.)
Weight 0.43 kg (0.95 lb.)
Certifications
EMC CE-EMC and FCC Part 15 B
Safety CE LVD, CB, UL, and CUL
Environmental RoHS and WEEE
Ingress Protection IP67 (IEC 60529)



Recorder (NVR) Technical Specifications


FeatureSpecification
Recorder Type SureVision 64-channel enterprise network video recorder
Channel Capacity Up to 64 IP cameras
Camera Count Included 64 cameras included
PoE Architecture (2) included 16-port PoE network switches
Video Resolution Supports 4K-class IP camera recording and display
Video Compression H.265 / H.264
Recording Modes Continuous, scheduled, motion-triggered, and event recording
Playback and Export Timeline playback, recorded video search, and evidence export
Storage 8TB surveillance-grade hard drive installed
Display Included Free 22-inch LCD monitor
Remote Viewing iPhone, Android, PC, Mac, and tablet access
Video Outputs HDMI / VGA output; exact outputs vary by recorder model
Networking Ethernet LAN / WAN access with enterprise external-switch architecture
Compatibility ONVIF-compatible IP surveillance platform
Ownership Local recording with no required monthly fees



Quick Buying Questions



Who should choose a 64 camera security camera system?
A 64-camera system is intended for large warehouses, campuses, schools, industrial facilities, apartment communities, distribution centers, multi-building properties, and commercial sites with extensive interior, parking, and perimeter coverage requirements.

Does this enterprise system require monthly fees?
No. Video is recorded locally to the included enterprise NVR, giving you ownership of your footage without required cloud-storage subscriptions.

How are sixty-four cameras connected?
The package includes two 16-port PoE network switches and Cat5e network cabling. Switch placement and network design should be planned around the property layout and camera locations.

Can the system cover multiple buildings?
Yes. A network-based external PoE architecture can support cameras distributed across multiple buildings when the network, cabling, switch placement, and bandwidth are properly planned.

Shop Professional Security Camera Systems by Camera Count



CCTV Security Pros offers complete wired PoE security camera systems for properties of every size, with local NVR recording, remote viewing, professional support, and no monthly fees.

Need help planning an enterprise layout?

Our team can help determine camera placement, cable lengths, PoE switch locations, network topology, monitor requirements, storage capacity, and retention goals.

Call 888-653-2288
