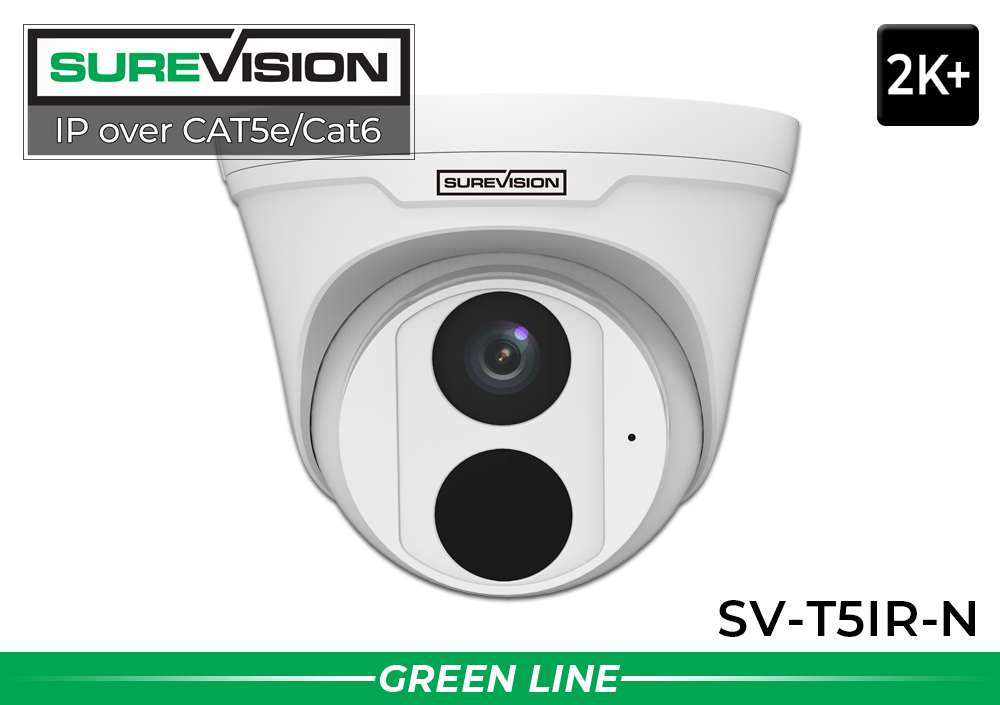

5MP (2K+) IP Dome with Audio & Night Vision | SV-T5IR-N

Model: SV-T5IR-N
5MP (2K+) IP Dome with Audio  & Night Vision | SV-T5IR-N
superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100

Select your options:

$186.65
Save 25% Today
Use code UPGRADE25 at checkout
Price After Coupon
The discount is applied only after the coupon code is entered during checkout.

SureVision NVR Features Video

Professional 5MP Wired Security Camera

5MP 2K+ Turret Security Camera with Audio & 100ft Night Vision



The SureVision SV-T5IR-N is a dependable 5MP turret security camera built for clear day-and-night surveillance at an excellent value. It captures sharp 2K+ video at up to 2592 × 1944 resolution and combines a built-in microphone, wide 2.8mm lens, Smart IR night vision up to approximately 100 feet, PoE connectivity, and IP67 weather protection in a clean low-profile turret design.

Use the camera for live remote viewing or connect it to a compatible SureVision NVR for continuous recording, playback, video search, centralized camera management, and easy system expansion. Free compatible mobile and desktop software is available with no required monthly viewing or cloud-storage fees.

5MP / 2K+ 100ft IR Night Vision Built-In Microphone 2.8mm Lens PoE IP67 No Monthly Fees
Sharp 5MP 2K+ Video
More image detail than standard 1080p cameras for better everyday surveillance.
Built-In Audio
Integrated microphone records sound with video when audio recording is enabled.
Night Vision to 100ft
Smart infrared automatically provides black-and-white nighttime surveillance after dark.
Simple Wired PoE
One network cable carries both power and video for a clean, stable installation.

Why Choose the SV-T5IR-N 5MP Turret Camera?



The SV-T5IR-N is designed for buyers who want professional wired surveillance without paying for features they may not need. Its combination of 5MP resolution, built-in audio, wide-angle coverage, infrared night vision, weather resistance, and PoE connectivity makes it a practical choice for both residential and commercial installations.

Common applications include entrances, offices, retail stores, restaurants, warehouses, hallways, loading areas, apartment properties, garages, walkways, parking areas, and building exteriors.

Camera Performance

Professional Features for Everyday Surveillance



5MP 2K+ High-Resolution Video

The SV-T5IR-N captures video at up to 2592 × 1944 resolution, providing more image detail than standard 1080p security cameras. The added resolution can help when reviewing people, clothing, packages, vehicles, entrances, and other important activity.

Wide-Angle 2.8mm Lens

The fixed 2.8mm lens provides an approximately 89.1-degree horizontal field of view, giving the camera broad general-purpose coverage for entrances, halls, offices, walkways, stores, warehouses, and outdoor areas.

Smart IR Night Vision up to Approximately 100 Feet

Integrated Smart IR illumination provides nighttime black-and-white surveillance at distances up to approximately 98 feet, marketed as up to 100 feet. Automatic day/night switching allows the camera to transition from daytime color video to infrared imaging as lighting conditions change.

Built-In Microphone for Video with Audio

The integrated microphone records one-way audio together with video when audio recording is enabled. Sound can add useful context to recorded surveillance footage by capturing conversations, alarms, impacts, deliveries, and other nearby activity when legally permitted.

Adjustable Low-Profile Turret Design

The three-axis turret design allows the camera to be aimed after installation while maintaining a compact appearance. It works well on ceilings, soffits, walls, overhangs, and other mounting surfaces.

IP67 Indoor / Outdoor Protection

The IP67-rated housing is designed for dependable indoor or outdoor surveillance. The camera operates from approximately -22°F to 140°F and includes 4kV surge protection for added durability.

Simple Power over Ethernet Installation

When connected to a compatible PoE NVR or network switch, one Ethernet cable carries both camera power and video. This reduces wiring and provides a stable hardwired connection without relying on batteries or Wi-Fi.

Record Locally & View Remotely with No Required Monthly Fees



Pair the SV-T5IR-N with a compatible SureVision NVR to add continuous or motion recording, local hard-drive storage, playback, recorded video search, evidence export, and centralized multi-camera management.

Free compatible mobile apps and desktop software allow authorized users to remotely view live video and access supported functions from compatible phones, tablets, PCs, and Macs without mandatory monthly viewing fees.

Money-Back Guarantee
3-Year Warranty
Free USA Support
No Monthly Fees

Build Your Professional Surveillance System

Use the SV-T5IR-N by itself or combine it with other SureVision cameras and a compatible NVR to build a complete wired security camera system.

Audio Recording Notice: Audio recording laws vary by jurisdiction. Confirm local requirements before enabling audio recording.

SV-T5IR-N Technical Specifications



Complete specifications are provided below for surveillance system design, installation planning, procurement, and compatibility review.

Camera
Model SV-T5IR-N
Maximum Resolution 5MP, 2592 × 1944
Image Sensor 1/3-inch progressive-scan CMOS
Minimum Illumination Color: 0.02 Lux at F2.1 with AGC on; 0 Lux with IR on
Day/Night IR-cut filter with automatic switching
Shutter Auto/Manual, 1 to 1/100000 second
Adjustment Pan: 0° to 360°; Tilt: 0° to 80°; Rotate: 0° to 360°
Signal-to-Noise Ratio Greater than 56 dB
Wide Dynamic Range Digital WDR
Noise Reduction 2D/3D digital noise reduction
Lens & Viewing Angle
Focal Length 2.8mm fixed lens
Aperture F2.1
Horizontal Field of View 89.1°
Vertical Field of View 47.3°
Diagonal Field of View 94.3°
Approximate Distances
Detect 63.0 m (206.7 ft.)
Observe 25.2 m (82.7 ft.)
Recognize 12.6 m (41.3 ft.)
Identify 6.3 m (20.7 ft.)
Infrared Night Vision
Supplemental Light Smart infrared
IR Distance Up to 30 m (98 ft.), marketed as up to 100 ft.
IR Operation Automatic day/night switching
Video
Compression Ultra 265, H.265, H.264, MJPEG
Main Stream 5MP 2592 × 1944 up to 20 fps; 4MP 2560 × 1440 up to 20 fps; 3MP 2304 × 1296 up to 20 fps; 1080p and 720p up to 30 fps
Sub Stream D1, 640 × 360, 2CIF, and CIF at up to 30 fps
HLC / BLC Supported
Defog Digital defog
OSD Up to 4 OSD areas
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Audio, Network & Interface
Built-In Microphone Supported
Audio Compression G.711
Sampling Rate 8 kHz
Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP
Compatible Integration ONVIF Profiles S and T; API
Network Interface 1 × RJ45 10/100 Mbps Ethernet
Onboard MicroSD Storage Not supported
Power, Construction & Environmental
Power 12V DC ±25% or PoE
Power Consumption Maximum 4.5 W
Weather Protection IP67
Operating Temperature -30°C to 60°C (-22°F to 140°F)
Operating Humidity Up to 95% RH, non-condensing
Surge Protection 4 kV
Dimensions Ø118 × 97 mm (Ø4.6 × 3.8 in.)
Weight 0.27 kg (0.60 lb.)
Reset Button Not available

Buy with Confidence from CCTV Security Pros

Get professional surveillance equipment backed by knowledgeable USA-based support, a 3-year warranty, and a money-back satisfaction guarantee. Our team can help with product selection, NVR compatibility, camera placement, cabling, setup, and remote viewing.

3-Year Warranty USA-Based Support Money-Back Guarantee No Monthly Fees
Call 888-653-2288 for Expert Help
