2 Camera 4K 4K Active Deterrent Dome Camera System with NVR

Model: SV-2IPTA8-N
2 Camera 4K 4K Active Deterrent Dome Camera System with NVR
30-Day Money-Back Guarantee
3-Year Product Warranty
Unlimited Live USA Support
Free Shipping
4.8/5 Google Rating 325 Google Reviews

Choose Your Product Options

Required selections are marked Required. All other choices are optional upgrades.

Before code $1,333.32 Price with FALL25 Enter FALL25 at checkout
Secure Checkout 30-Day Money-Back Guarantee Expert Help: 888-653-2288

SureVision Camera Features Video

SureVision NVR Features Video

SureVision • SV-2IPTA8-N

2 Camera 4K Dual-Light Turret Security Camera System

Clear video. Local recording. Room to expand.

Monitor your property with 2 SureVision 4K dual-light turret cameras and a 4-channel NVR. Each camera has a 2.8mm fixed lens. Infrared and warm-light illumination up to 98 feet. Built-in microphone and speaker for 2-way audio. Record locally and view your system remotely with no monthly viewing fees.

4-channel recorder included

Start with 2 cameras and add up to 2 more as your coverage needs grow.

Your cameras and recorder

SV-TA8-N2 × SV-TA8-NSV-NVR1P4-NSureVision 4-channel NVR • SV-NVR1P4-N

What makes this system a practical choice?

Resolution

4K video gives you useful detail across entrances, work areas, and outdoor spaces.

Lens

The 2.8mm fixed lens provides broad coverage for rooms, entrances, and open areas.

Night viewing

Infrared and warm-light illumination up to 98 feet. Choose camera placement to suit the scene and available lighting.

Audio

Built-in microphone and speaker for 2-way audio.

Camera design

IP67 housing.

PoE installation

1 network cable carries power and video between each camera and the PoE recorder.

Local recording and remote viewing

Store video on the NVR’s hard drive. Use the free compatible app or desktop software to view live video and recordings remotely. An internet connection is needed for remote access.

What’s included

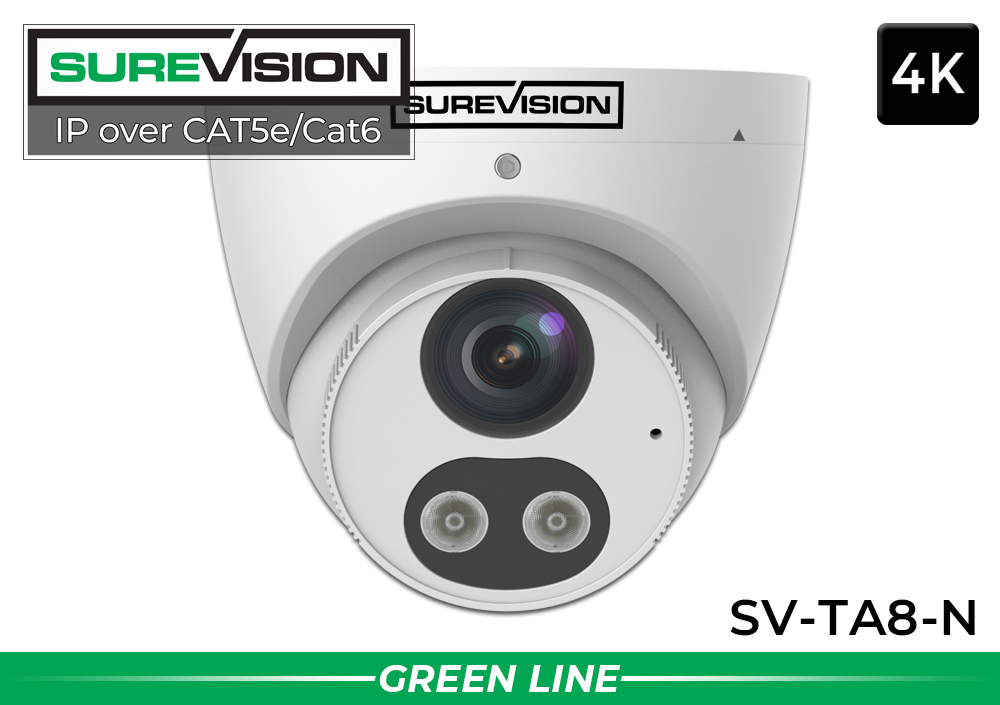

  • 2 SureVision cameras (SV-TA8-N)
  • 1 SureVision 4-channel NVR (SV-NVR1P4-N)
  • Surveillance hard drive — capacity follows your selected product option
  • 2 × 100-foot premade Cat5 camera cables
  • Free remote-viewing app and software
  • Unlimited U.S.-based technical support

Storage upgrades, cable choices, and monitor options follow the configuration selected when ordering.

Professional equipment, backed by people who can help

Your system includes a 3-year warranty and a money-back guarantee. Our U.S.-based team can help with placement, setup, and remote viewing.

Call 888-653-2288 for help planning your coverage.

Common questions

Can I zoom in?

Digital zoom lets you enlarge part of the image for a closer look.

Is internet needed to record?

The NVR records locally. Internet is needed for remote access from outside the property.

Does this system record sound?

Built-in microphone and speaker for 2-way audio.

SureVision. Professional quality. Proven performance. 3-Year Warranty. Unlimited U.S. Technical Support.

Full camera specifications — SV-TA8-N

Sensor 1/2.8" CMOS
Min. Illumination Color: 0.0025 Lux (F1.6, AGC ON), 0 Lux with light
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N >52 dB
WDR 120 dB
Focal Length 2.8 mm
Iris F1.6
Field of View (H) 101.0°
Field of View (V) 56.3°
Field of View (D) 115.5°
Lens Type Fixed
DORI Distance (Lens) 2.8 mm
DORI Distance (Detect) 86.9 m (285.1 ft.)
DORI Distance (Observe) 34.8 m (114.2 ft.)
DORI Distance (Recognize) 17.4 m (57.1 ft.)
DORI Distance (Identify) 8.7 m (28.5 ft.)
Supplemental Light Dual light
Illumination Distance (IR) 30 m (98.4 ft.)
Illumination Distance (Warm Light) 30 m (98.4 ft.)
Light On/Off Control Auto/Manual
Wavelength 850 nm
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Triple streams
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anticlockwise
Dewarping Support
HLC Support
BLC Support
Defog Digital defog
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting Support people flow counting and crowd density detection
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Edge Storage MicroSD, up to 512 GB
Network Storage ANR, NAS (NFS)
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZStation, APP
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker Support
WIFI N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
Power DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption Max. 8.0 W
Power Interface Ø5.5 mm coaxial power plug
Dimensions Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)
Weight 0.45 kg (0.992 lb.)
Material Metal + Plastic
Working Environment -30 C to 60 C (-22 F to 140 F), Humidity: <= 95% RH (non-condensing)
Storage Environment -30 C to 60 C (-22 F to 140 F), Humidity: <= 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button N/A

Full recorder specifications — SV-NVR1P4-N

Model SV-NVR1P4-N
Included Storage 4TB surveillance-grade hard drive, preinstalled
Decoding
Decoding Format Ultra 265, H.265, H.264
Decoding Capability Ultra 265/H.265: 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30
H.264: 2 × 16MP(4800×2688)@30, 2 × 12MP@30, 2 × 4K@30, 4 × 5MP@30
Capability Description The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 64 Mbps
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video / Audio Input
IP Video Input 4-ch
RCA Audio Input 1-ch
Video / Audio Output
HDMI Output 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output 1-ch
Liveview Display 1 / 4
Corridor Mode Screen 3 / 4
Two-Way Audio
Two-Way Audio 1-ch, RCA (using the audio input and output)
Snapshot
FTP / Schedule / Event Snapshot 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution 16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Smart
Smart by IPC Total 4-ch (Face Detection, SIP, UMD)
VCA Search Face Snapshot Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
Languages 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 1 SATA Interface
Included Hard Drive 1 × 4TB surveillance-grade hard drive, preinstalled
Capacity Up to 20TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size. The environment temperature for use should not exceed 40°C.)
External Interface
Network Interface 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
RS485 N/A
RS232 N/A
Alarm In N/A
Alarm Out N/A
Power Supply DC 48 V / 1.35 A
PoE
PoE Interface 4 RJ45 10 M/100 M self-adaptive Ethernet PoE Interface
Max Power Max 30 W for single port, Max 50 W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature -10 C to 55 C (14 F to 131 F)
Working Humidity <= 90% RH (non-condensing)
Power Consumption (without HDD) <= 10W
Weight (without HDD) <= 1.1Kg (2.43lb)
Dimensions 260mm × 222mm × 47mm (10.2"×8.7"×1.8")
Certification
Certification CE; FCC; UL; RoHS; WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
