What’s included
Your complete system includes monitoring software and a remote-viewing app. No monthly fees.
SureVision Camera Features Video
SureVision • SV-2IPSB8-B-N
2 Camera 4K active-deterrent black bullet PoE Security System
The choice is clear. Protect what you have worked hard to build with a professional hardwired system that keeps you connected to your property. This package brings 2 SureVision SV-SB8-B-N 4K active-deterrent black bullet cameras together with a 4-channel SV-NVR1P4-N network video recorder for live viewing, local recording and practical incident review.
Professional equipment, real support
CCTV Security Pros has served government, business and residential customers since 2008. Your SureVision system is backed by a three-year limited product warranty, a money-back guarantee and unlimited U.S.-based technical support, subject to the applicable terms. Get help with installation, remote viewing and making the most of your system.
Your cameras and recorder

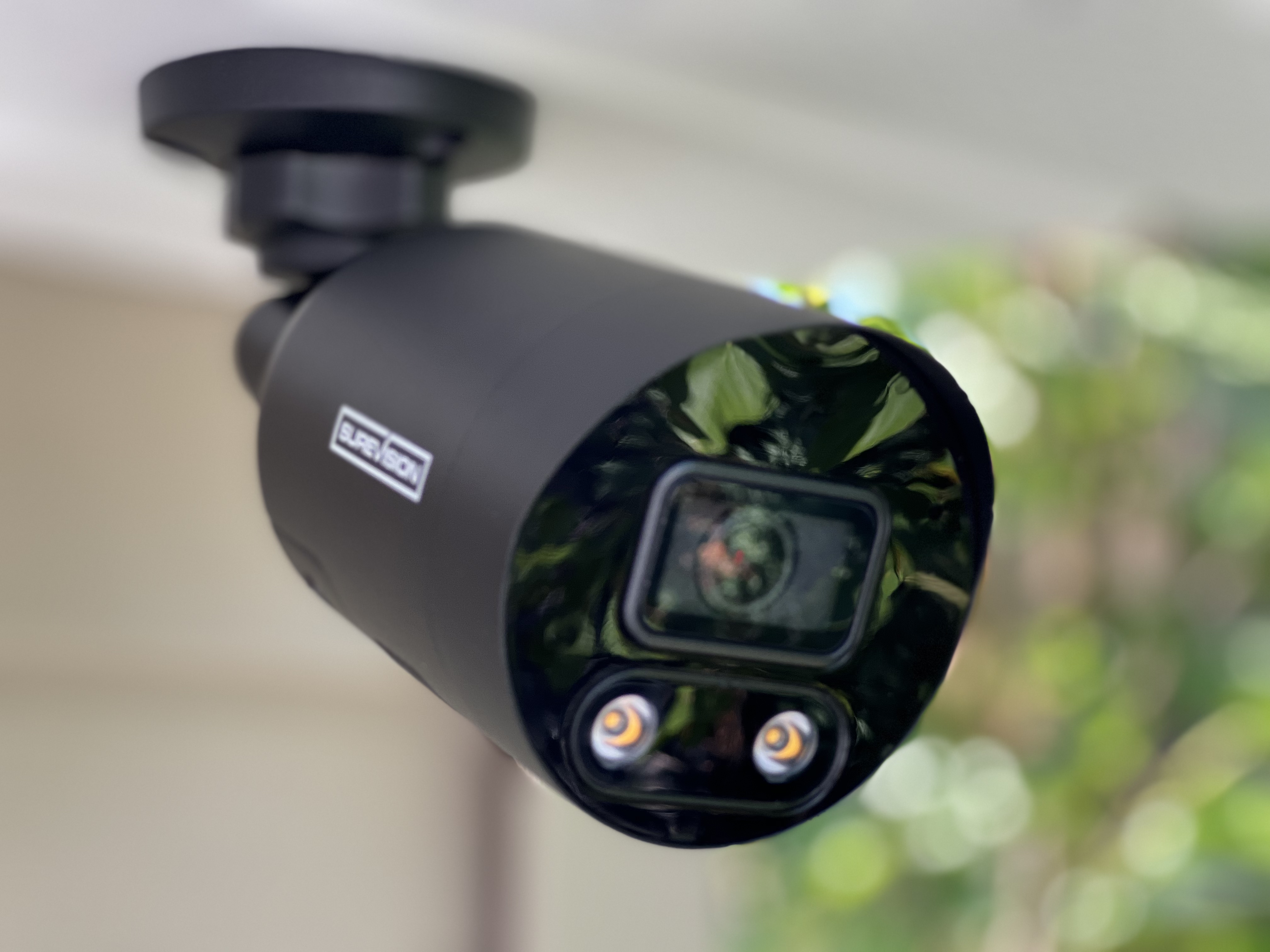

2 SureVision 4K Ultra HD active-deterrent bullet cameras • SV-SB8-B-N
SureVision 4-channel recorderSee the areas that matter

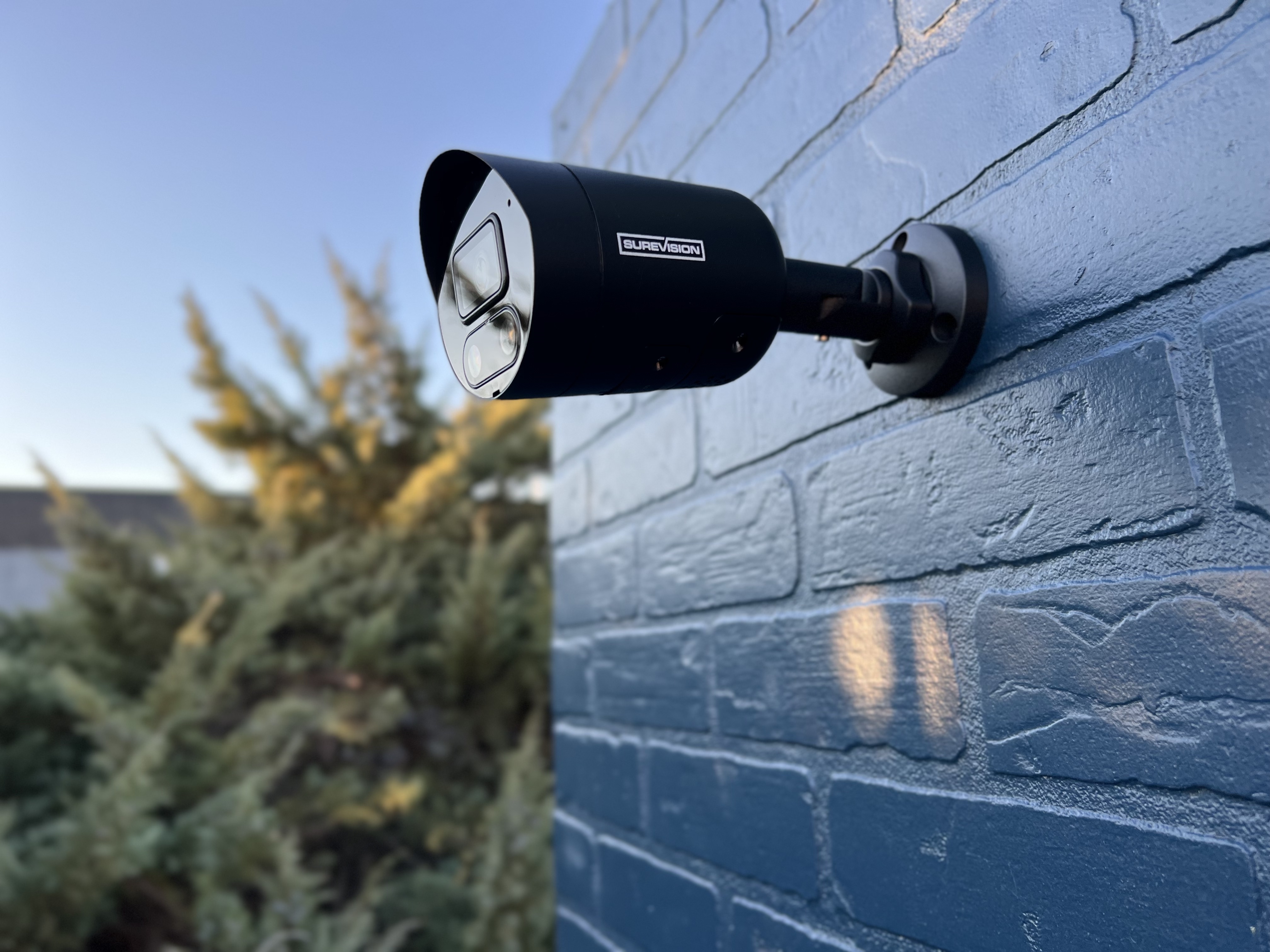

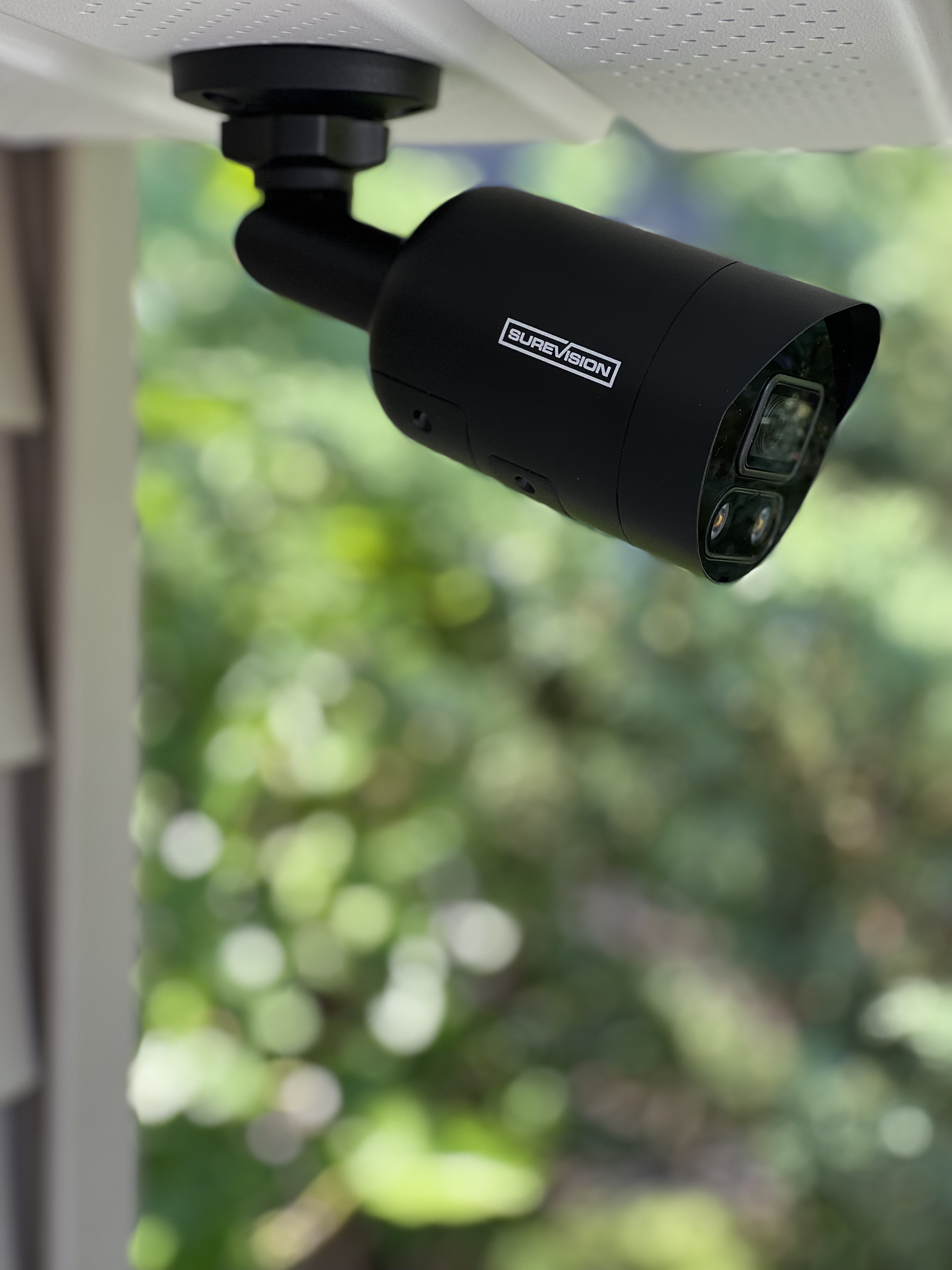

The fixed 2.8mm lens gives a broad 4K view of entrances and work areas. Infrared illumination reaches up to 98.4 feet under specified conditions. The built-in microphone and speaker support two-way audio, while active warning features can call attention to activity around the property. Use the two views for front and rear access, or for a reception area and stockroom.
Your footage stays with you
The recorder brings your cameras into one viewing and recording system. Check several areas together, select a camera for a closer look, and review recordings when you need to check a delivery or an after-hours event. Export useful footage for later review or sharing.
The 4-channel recorder leaves capacity for 2 more compatible cameras, within its specifications. This package includes a preinstalled 4TB surveillance hard drive. Recording time depends on resolution, frame rate, bitrate and recording settings.
Stay connected when you are away
Use compatible free mobile and desktop viewing software to see live video and review recordings from your phone or computer. Remote viewing requires a working internet connection. Local recording continues without internet, and there are no required monthly recording or remote-viewing fees.
Simple wired connections
PoE carries power and video over one Ethernet cable per camera. The package includes 2 premade 100-foot Cat5 camera cables, one for each camera. Choose the recording schedule and settings that suit your property. Allow a little extra cable length for routing and slack. A free surveillance yard sign and warning stickers are included with complete systems.

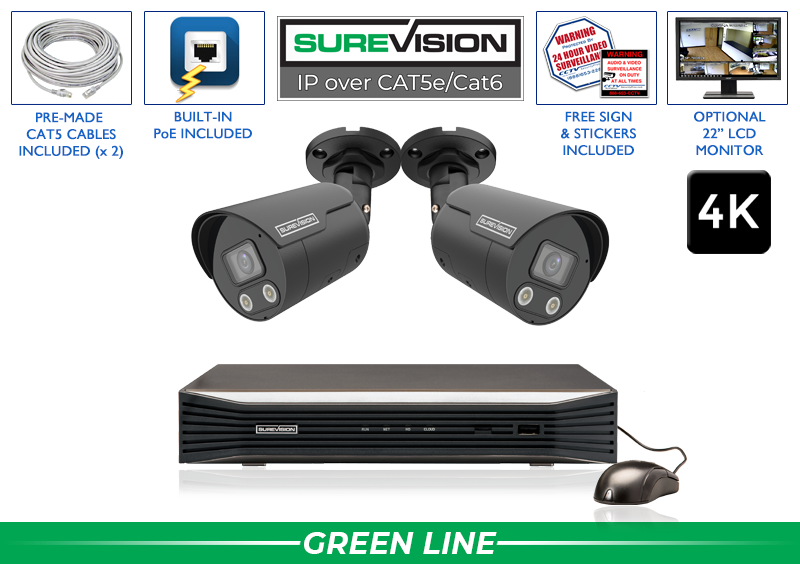

What’s Included With Your System
- 2 SureVision cameras — SV-SB8-B-N
- 1 SureVision 4-channel network video recorder — SV-NVR1P4-N
- 4TB surveillance hard drive, preinstalled
- 2 premade 100-foot Cat5 camera cables — CSP-C100
- Free remote-viewing app and desktop software
- Free surveillance yard sign and warning stickers
Storage, cable and monitor selections on the product page determine your final configuration.
Common questions
Does recording need internet?
No. Recordings stay on the local recorder. Internet is needed for remote access while you are away.
Can I review an earlier event?
Yes. Use playback and search to review the camera and time period you need, then export useful footage.
Need a different mix? Explore our custom security camera system builder or call 888-653-2288.
Full Technical Specifications
Complete technical specifications
| Feature | Specification |
|---|---|
| Camera Type | 8MP / 4K active deterrent bullet camera |
| Resolution | 8MP / 4K Ultra HD |
| Audio | 2-way audio |
| Lens | 2.8mm fixed lens |
| Field of View | Approx. 110° wide angle |
| Night Vision | Up to 100ft infrared / white light |
| Deterrence | Active deterrent lighting and audio response |
| Housing | Weather-rated bullet camera |
| Installation | Indoor / outdoor rated |
| Connection | PoE over Cat5 cable |
| Monitoring | Smart motion detection and perimeter monitoring |
| Recording | Pairs with NVR for 24/7 local recording |
| Feature | Specification |
|---|---|
| Recorder Type | SureVision SV-NVR1P4-N 4-Channel PoE Network Video Recorder (NVR) |
| Channel Capacity | 4 IP camera channels |
| Camera Count Included | 2 cameras included; room for 2 more compatible cameras |
| Video Compression | H.265 / H.264 |
| Recording Mode | Continuous, scheduled, motion-triggered, and event recording |
| Playback | Smart search, timeline playback, and evidence export |
| Storage | Internal surveillance hard drive for local recording |
| Remote Viewing | iPhone, Android, PC, and Mac remote access |
| Video Output | HDMI / VGA monitor output |
| Networking | Ethernet LAN / WAN access for remote viewing |
| Mobile Alerts | Push notifications for motion and perimeter events |
| Smart Features | Smart motion detection, perimeter monitoring, and event tagging |
| PoE | Built-in PoE ports for power + video over one cable |
| Ownership | No monthly fees; local recording ownership |
Complete Component Specifications
Detailed specifications for the standard camera and recorder models in this package. Optional equipment selections may change the final configuration.

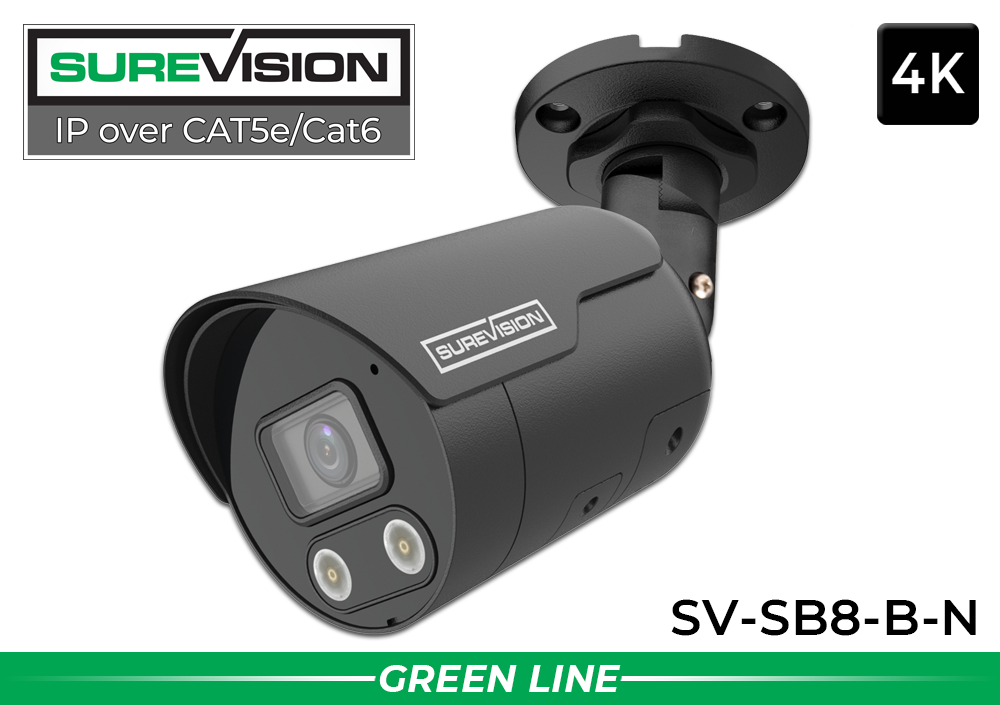

Camera Specifications — SV-SB8-B-N
| Max Resolution | 8 MP |
| Sensor | 1/2.7" CMOS |
| Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR / white light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >56 dB |
| WDR | 120 dB |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 111.1° |
| Field of View (V) | 58.8° |
| Field of View (D) | 134.6° |
| Supplemental Light | IR + White Light + Siren |
| Illumination Distance (IR) | 30 m (98.4 ft.) |
| Illumination Distance (White Light) | 30 m (98.4 ft.) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2688 × 1520), max. 30 fps; 1080P (1920 × 1080), max. 30 fps. Sub Stream: 720P, D1, 640 × 360, max. 30 fps. |
| Video Bit Rate | 128 Kbps to 16384 Kbps |
| Audio Compression | G.711U, G.711A |
| Two-way Audio | Support |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Active Deterrent | White light warning, siren, audio interaction |
| Edge Storage | MicroSD, up to 512 GB |

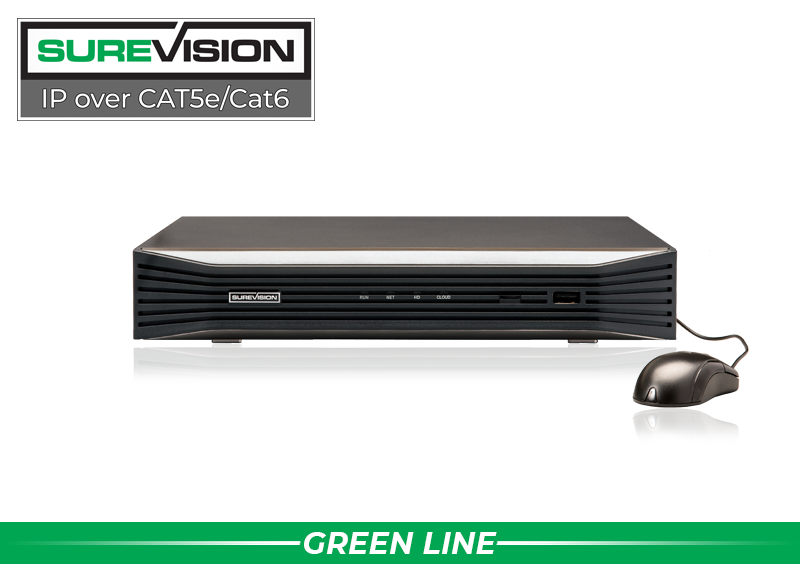

Recorder Specifications — SV-NVR1P4-N
| Model | SV-NVR1P4-N |
| Included Storage | 4TB surveillance-grade hard drive, preinstalled |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Ultra 265/H.265: 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30 H.264: 2 × 16MP(4800×2688)@30, 2 × 12MP@30, 2 × 4K@30, 4 × 5MP@30 |
| Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
| Browser | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video / Audio Input | |
| IP Video Input | 4-ch |
| RCA Audio Input | 1-ch |
| Video / Audio Output | |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 1 / 4 |
| Corridor Mode Screen | 3 / 4 |
| Two-Way Audio | |
| Two-Way Audio | 1-ch, RCA (using the audio input and output) |
| Snapshot | |
| FTP / Schedule / Event Snapshot | 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
| Recording | |
| Recording Resolution | 16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Smart | |
| Smart by IPC | Total 4-ch (Face Detection, SIP, UMD) |
| VCA Search | Face Snapshot Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language | |
| Languages | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 1 SATA Interface |
| Included Hard Drive | 1 × 4TB surveillance-grade hard drive, preinstalled |
| Capacity | Up to 20TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size. The environment temperature for use should not exceed 40°C.) |
| External Interface | |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| RS485 | N/A |
| RS232 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Power Supply | DC 48 V / 1.35 A |
| PoE | |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet PoE Interface |
| Max Power | Max 30 W for single port, Max 50 W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Working Environment | |
| Working Temperature | -10 C to 55 C (14 F to 131 F) |
| Working Humidity | <= 90% RH (non-condensing) |
| Power Consumption (without HDD) | <= 10W |
| Weight (without HDD) | <= 1.1Kg (2.43lb) |
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
| Certification | |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
