16 Channel Digital Video Recorder – 4K Ultra HD Hybrid DVR with AI Smart Detection

Take your surveillance system to the next level with our advanced 16 Channel Digital Video Recorder, designed to deliver unmatched video clarity, smart functionality, and seamless compatibility. Whether you're upgrading from analog or adding new high-definition IP cameras, this professional-grade DVR gives you the flexibility and performance you need to protect your home or business.

4K Ultra HD Video Quality

Capture every critical moment in stunning 4K Ultra High Definition. This DVR supports the latest HD cameras and is backward compatible with analog formats, including CVI, TVI, AHD, and standard analog systems. Its hybrid design automatically adapts to your connected cameras, giving you a hassle-free installation and crisp, clear footage across all channels.

Supports Up to 16 Cameras

Get comprehensive security coverage with up to 16 connected cameras. Monitor entrances, interiors, exteriors, and more — all from a single powerful DVR.

AI-Powered Motion Detection

Equipped with advanced AI capabilities, the DVR features Ultra Motion Detection that intelligently identifies and alerts you to human or vehicle activity — reducing false alarms and increasing response accuracy. Stay informed in real time with push notifications sent directly to your smartphone or tablet.

Efficient Video Storage with H.265 Compression

Maximize your recording time with the latest H.265 video compression technology, saving up to 40% more storage without sacrificing video quality. With two internal hard drive bays, you can easily expand your storage capacity as needed.

Remote Access & Simple Controls

Easily view live or recorded footage remotely using our free mobile apps or desktop software. The user-friendly interface allows for quick navigation, digital zoom, and control of pan-tilt-zoom (PTZ) cameras. You can even set up automated tours for added convenience.

Key Features:

Supports 4K UHD, CVI, TVI, AHD, Analog, and IP camera inputs
Connect up to 16 surveillance cameras
AI detection for people and vehicles only
Motion alerts sent to your mobile device
24/7 recording, playback, and event search
Dual hard drive bays for extended storage
Free iOS, Android, Mac, and PC viewing apps
Plug-and-play setup with intuitive GUI
Digital zoom and PTZ camera control

Protect what matters most with the power of 4K clarity and intelligent motion detection. Whether you're securing a small business, warehouse, or large property, this 16 Channel DVR delivers the performance and flexibility trusted by professionals nationwide.

✅ 3-Year Warranty
✅ Free USA-Based Tech Support
✅ 100% Satisfaction Guarantee

? Questions? Call us at (888) 653-2288 or shop our camera systems now to get started.

Looking for a Complete HD Security Camera System? Choose By Number of Cameras:

Complete HD coax camera packages include the security cameras, recorder, and all the parts you need for installation.

Technical Specification
System
Main Processor																		Industrial-grade processor
Operating System																		Embedded Linux
Operating Interface																		Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)																		2 channels, 10 IVS rules for each channel
Face Detection
Face Attributes																		Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)																		2 channels (up to 12 face images/s)
Face Recognition
Face Database Capacity																		Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Face Recognition Performance of AI by Recorder (Number of Channels)																		2 channels
SMD Plus
SMD Plus by Recorder																		16 channels:Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input																		16 channel BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input																		1. CVI: 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps. 2. TVI: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps. 3. AHD: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps.
IP Camera Input																		Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) well be disabled.
Encoding Capacity																		Main stream: All channel 4K@(1-7fps); 6MP@(1-10fps); 5MP@(1-12fps); 4K-N/4MP/3MP@(1-15fps); 4M-N/1080P/720P/960H/D1/CIF(1fps–25/30fps); Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps)
Dual-stream																		Yes
Video Frame Rate																		PAL: 1 fps–25 fps. NTSC: 1 fps–30 fps.
Video Bit Rate																		32 kbps–6144 kbps per channel
Audio Sampling																		8 kHz, 16 bit
Audio Bit Rate																		64 kbps
Bit Rate Type																		Video stream and composite stream.
Video Output																		1 HDMI ,1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display																		When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36
Third-party Camera Access																		Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
Compression Standard
Video Compression																		AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression																		G.711A; G.711u; PCM
Network
Network Protocol																		HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access																		iOS, Android
Interoperability																		ONVIF 21.06, CGI
Browser																		Chrome, IE9 or above, Firefox
Network Mode																		Single-address mode
Recording Playback
Record Mode																		General, motion detection; intelligent; alarm; POS
Recording Playback																		When the AI Function (IVS, FACE) is not enabled:1/4/9/16 When the AI Function (IVS, FACE) is enabled:1/4/9
Backup Method																		USB device and network
Playback Mode																		Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk Group																		Yes
Alarm
General Alarm																		Motion detection, video loss, tampering, and local alarm
Anomaly Alarm																		No disk, storage error, low space, offline, IP conflict, MAC conflict
Intelligent Alarm																		Face detection, face recognition, perimeter protection
Alarm Linkage																		Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

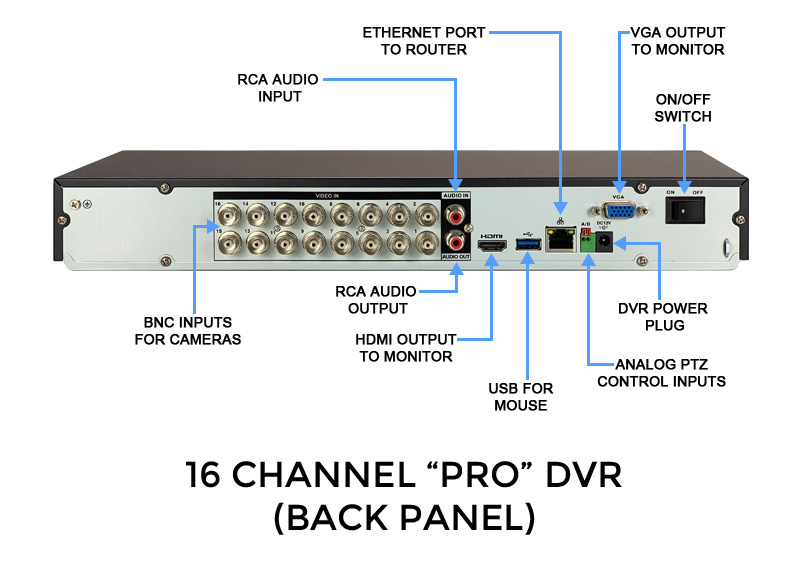

Ports
Audio Input																		1-channel RCA (external) 16-channel BNC (coaxial audio)
Audio Output																		1, RCA
Two-way Talk																		Yes (share the same audio input with the first channel)
HDD Interface																		2 SATA ports,up to 16 TB for a single HDD, the maximum HDD capacity varies with environment temperature
RS-485																		1
USB																		2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI																		1
VGA																		1 (Sub Screen Support)
Network Port																		1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply																		12 VDC, 5 A
Power Consumption																		Lower than 15 W
Net Weight																		1.77 kg (3.90 lb)
Gross Weight																		2.94 kg (6.48 lb)
Product Dimensions																		1U, 375.0 mm × 289.0 mm × 53.0 mm (14.76" × 11.38" × 2.09") (W × D × H)
Packaging Dimensions																		433.0 mm × 141.0 mm × 366.0 mm (17.05" × 5.55" × 14.41") (W × D × H)
Operating Temperature																		–10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity																		10%–90% (RH)
Installation																		Desktop
Certifications																		CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B

All of our NVR and DVR recorders come with Skyhawk AI Surveillance Hard Drives to preserve the integrity of your important video!

SURVEILLANCE DVR FEATURES

4K 16 Channel Ultra High Definition
16 BNC Security Camera Inputs
Supports CVI/TVI/AHD/Analog CCTV Cameras
Remote Viewing – No Monthly Fees
H.265 High Video Compression
HDMI and VGA Display Output
2 Hard Drive Bays
