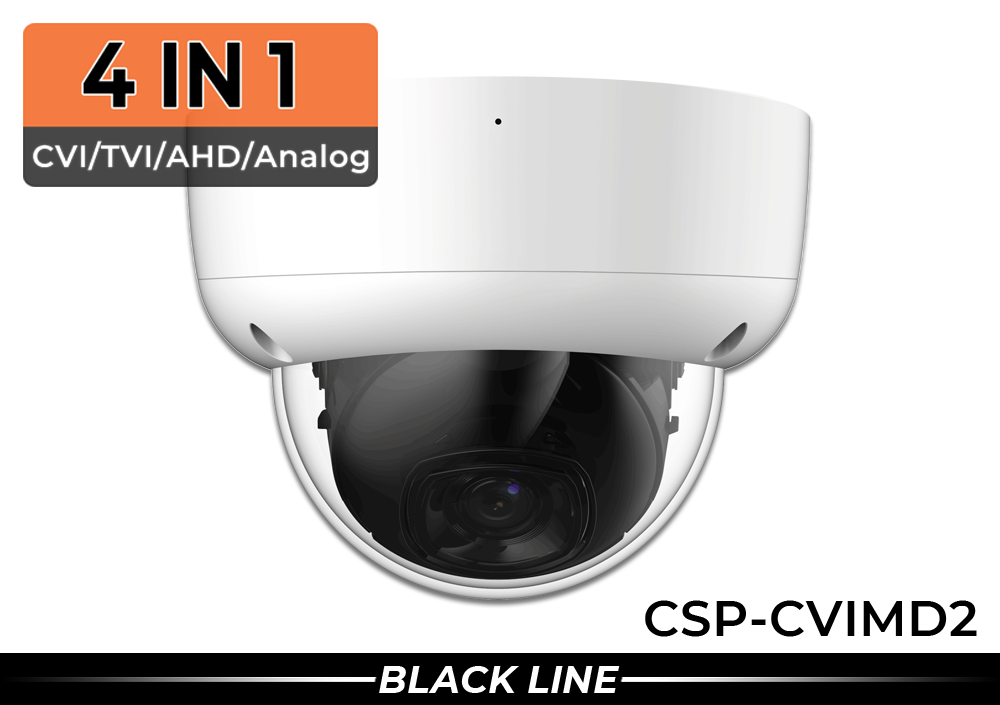

High Definition 1000-Line Analog Replacement Dome CCTV Camera

Versatile Analog and HD Compatibility – Built for Performance and Clarity

Upgrade your surveillance system with our professional-grade CCTV camera, delivering exceptional clarity with 1000 TV lines of resolution. Designed as a seamless replacement for older analog cameras, this versatile unit works with both traditional analog DVRs and modern HD-over-Coax systems (CVI, TVI, AHD).

Key Features of This High-Definition CCTV Camera:

Dual-Mode Compatibility: Easily switch between standard analog (CVBS) and HD modes. Supports legacy systems and modern DVRs — ideal for phased upgrades.
Super High Resolution: Get crisp video with 1000 TV lines in analog mode. Upgrade to HD for even greater clarity using compatible DVRs.
Wide-Angle Surveillance: Equipped with a 2.8mm lens, this CCTV camera offers a 110° wide-angle field of view — perfect for large rooms, entryways, parking lots, and more.
100ft Infrared Night Vision: Monitor your property day and night with powerful infrared night vision, ensuring visibility even in total darkness.
Built-in Audio: Capture audio in addition to video with the integrated microphone (available in CVI/TVI/AHD modes).

Easy Integration & Installation

Plug-and-play setup with existing coaxial cabling (RG59)
No need to replace your analog DVR — just connect and start viewing
Ideal for DIY installs or professional security deployments

Why Choose This CCTV Camera?

Flexible compatibility with analog and HD systems
Perfect for residential, commercial, and industrial use
Reliable coverage for entrances, warehouses, stores, offices, and more
Future-proof your CCTV system with switchable tech
Save money by keeping existing infrastructure

What’s Included:

High Definition 1000-Line CCTV Camera (Analog & HD Compatible)
Pre-installed 2.8mm Wide-Angle Lens
Quick Start Installation Guide

Need Help?

Call our experts at CCTV Security Pros: (888) 653-2288. Get a custom quote or guidance on the best DVR and CCTV camera system for your setup.

Explore Our Full Line of CCTV Camera Systems »

Looking for a complete coax system?

Check out our Black Line Series
HD over Coax Security Camera Systems.

SHOP NOW

Looking for a digital video recorder for this camera?

Check out our compatible
Black Line Series
Digital Video Recorders.

SHOP NOW

Security Camera Technical Specification
Camera
Image Sensor	2MP CMOS
Effective Pixels	1920(H)×1080(V),
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination	0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	More than 65dB
IR Distance	Up to 40m (131 feet)
IR On/Off Control	Auto
IR LEDs	3 (IR Lights)
Lens
Lens Type	Fixed focal
Iris Type	Fixed Iris
Mount Type	M12
Focal Length	2.8mm
Max Aperture	F2.0
Angle of View	2.8 mm: H: 102°; V: 60°; D: 129°
Angle Adjustment	Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355°
Focus Control	N/A
Close Focus Distance	2.8 mm: 0.5 m (1.64 ft)
DORI Distance
Note: The DORI distance is a "general proximity" of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
	DORI Definition	Distance
Detect	25px/m (8px/ft)	41.4 m (136 ft)
Observe	63px/m (19px/ft)	16.5 m (42 ft)
Recognize	125px/m (38px/ft)	8.3 m (27 ft)
Identify	250ppm (76px/ft)	4.1 m (13 ft)
Video
Resolution	1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Frame Rate	CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H
Video Output	1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night	Auto(ICR)/Color/B/W
OSD Menu	Multi-language
BLC Mode	BLC / HLC / DWDR
WDR	DWDR
Gain Control	Auto
Noise Reduction	3D NR
White Balance	Auto
Smart IR	Auto
Certifications
Certifications	CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Electrical
Power Supply	12V DC ±30%
Power Consumption	Max 2.8W (12V DC, IR on)
Environmental
Operating Conditions	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Conditions	–40 °C to +60 °C (–40 °F to +140 °F)
Ingress Protection & Vandal Resistance	IK10; IP67
Construction
Casing	Metal
Dimensions	112.0 mm × 89.1 mm (4.41" × 3.51")
Net Weight	0.44 kg (0.97 lbs)
Gross Weight	0.62 kg (1.37 lbs)
Installation	Wall mount; ceiling mount; vertical pole mount

SECURITY CAMERA FEATURES

2 Megapixel HD-CVI Security Camera (1920×1080)
4-1 Camera (CVI, TVI, AHD, Analog)
2.8mm Lens (110° Wide Angle View)
Up to 130ft Infrared Night Vision
Weatherproof, Vandalproof (IP67, IK10)
12 Volt DC
Measurement: 4.4" W x 3.5" H

Approximate Distances:
Identify (Up to 13ft)
Recognize (Up to 27ft)
Detect (Up to 136ft)
