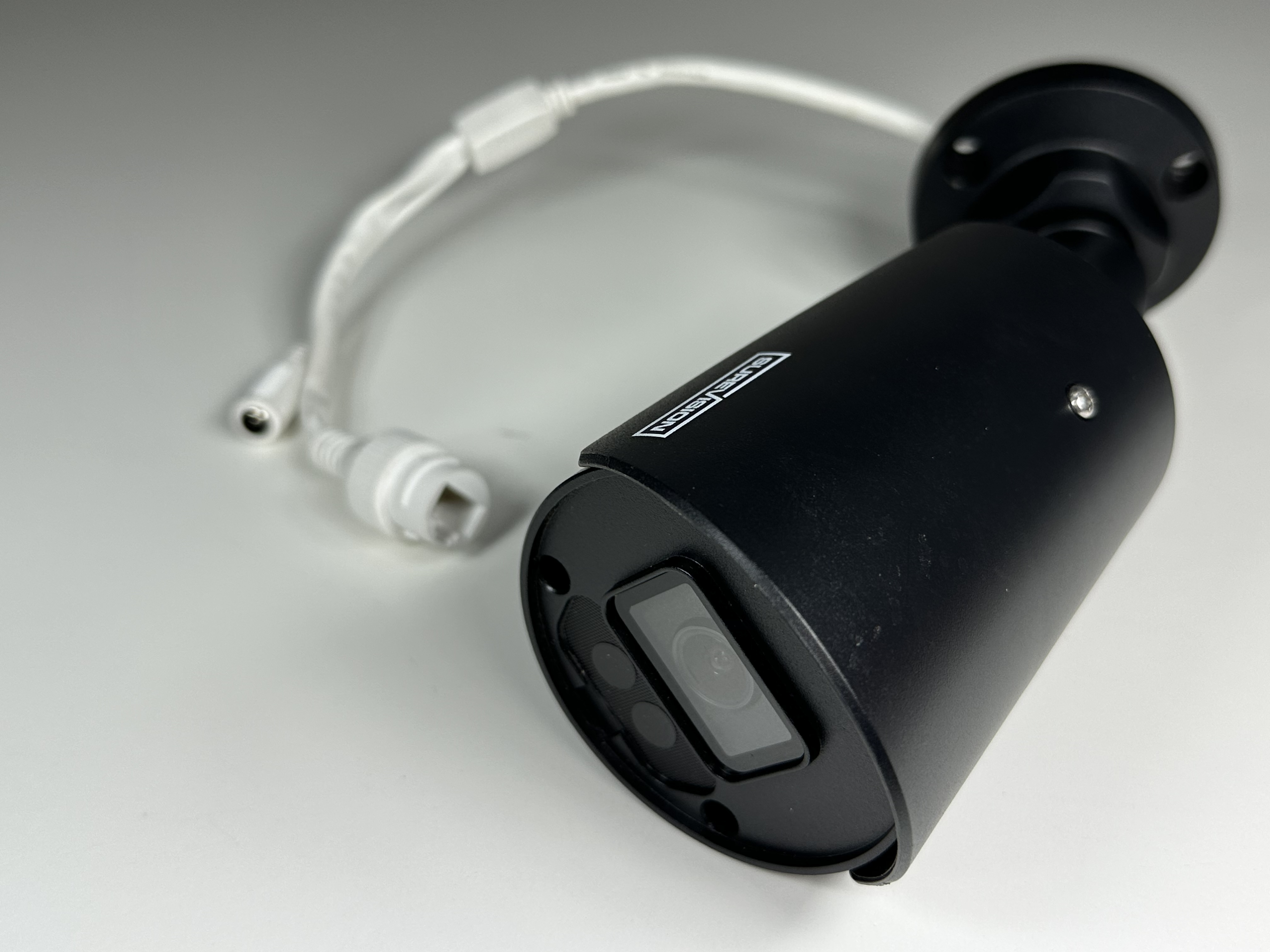

(SV-BA8-B-N) Green Line - 4K Infrared Bullet IP Camera / BS1038

Model: BS1038
(SV-BA8-B-N) Green Line - 4K Infrared Bullet IP Camera / BS1038
30-Day Money-Back Guarantee
3-Year Product Warranty
Unlimited Live USA Support
Free Shipping
4.8/5 Google Rating 325 Google Reviews
Before code $199.99 Price with CELEBRATE25 Enter CELEBRATE25 at checkout · Ends Friday, October 16
Secure Checkout 30-Day Money-Back Guarantee Expert Help: 888-653-2288

SureVision Camera Features Video

SureVision NVR Features Video

B-Stock Products

B-Stock products offer outstanding value and performance. These items were previously returned by customers and cannot be sold as new. Although many of these cameras appear like new as depicted in their respective images, some have been briefly mounted or may show signs of light use. Please note that original packaging is not always included.

Every B-Stock product is inspected, tested, and factory restored to meet the same performance and reliability standards as a brand-new model. Our B-Stock products are backed by a 90-day limited warranty.

Security Camera Technical Specifications

Camera
Model IPC2128LE-ADF28KM-H
Maximum Resolution 8 Megapixel / 3840 × 2160
Image Sensor 1/2.8" CMOS
Minimum Illumination EasyStar Low-Light Technology
Color: 0.005 Lux (F1.6, AGC ON)
0 Lux with IR On
Day / Night IR-Cut Filter with Auto Switch (ICR)
Shutter Auto / Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotate: 0° ~ 360°
S/N Ratio >52dB
Wide Dynamic Range 120dB WDR
Lens
Lens Type Fixed
Focal Length 2.8mm
Iris Type Fixed
Aperture F1.6
Horizontal Field of View 98.7°
Vertical Field of View 53.9°
Diagonal Field of View 103.6°
DORI Distance
2.8mm Lens Detect: 86.9 m (285.1 ft)
Observe: 34.8 m (114.2 ft)
Recognize: 17.4 m (57.1 ft)
Identify: 8.7 m (28.5 ft)
Infrared Illumination
Supplemental Light Infrared (IR)
IR Illumination Distance Up to 50 m (164 ft)
IR Wavelength 850nm
IR On/Off Control Auto / Manual
Video
Video Compression Ultra 265 / H.265 / H.264 / MJPEG
H.264 Code Profile Baseline Profile / Main Profile / High Profile
Main Stream 8MP (3840 × 2160): Max. 20fps
5MP (3072 × 1728): Max. 30fps
4MP (2560 × 1440): Max. 30fps
1080P (1920 × 1080): Max. 30fps
720P (1280 × 720): Max. 30fps
Sub Stream 1080P (1920 × 1080): Max. 30fps
720P (1280 × 720): Max. 30fps
D1 (720 × 576): Max. 30fps
640 × 360: Max. 30fps
2CIF (704 × 288): Max. 30fps
CIF (352 × 288): Max. 30fps
Video Bit Rate 128 Kbps ~ 16 Mbps
U-Code Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 Areas
Region of Interest (ROI) Supported
Video Streams Dual Streams
9:16 Corridor Mode Supported
White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction 2D / 3D DNR
Smart IR Supported
Image Flip Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-Clockwise
Dewarping N/A
HLC Supported
BLC Supported
Digital Defog Supported
Events & Detection
Motion Detection Supported
Ultra Motion Detection Supported
Tampering Alarm Supported
Audio Detection Supported
Cross Line Detection Supported – Based on Human Body Detection
Intrusion Detection Supported – Based on Human Body Detection
General Functions Watermark / IP Address Filtering / Access Policy / ARP Protection / RTSP Authentication / User Authentication / HTTP Authentication
Audio
Built-In Microphone Supported
Audio Compression AAC-LC / G.711U / G.711A
Audio Bit Rate G.711U / G.711A: 64 Kbps
AAC-LC: 128 Kbps
Two-Way Audio N/A
Audio Suppression Supported
Sampling Rate G.711U / G.711A: 8kHz
AAC-LC: 8kHz / 16kHz / 48kHz
Storage
Edge Storage MicroSD Card up to 512GB
Network Storage ANR / NAS (NFS)
Network
Network Protocols IPv4 / IGMP / ICMP / ARP / TCP / UDP / DHCP / RTP / RTSP / RTCP / DNS / DDNS / NTP / FTP / UPnP / HTTP / HTTPS / SMTP / SSL/TLS / QoS / 802.1x / SNMP
Compatible Integration ONVIF Profile S / Profile G / Profile T / API / SDK
Users Up to 32 Users
Administrator / Common User / Operator
Security Password Protection / Strong Password / HTTPS Encryption / Export Operation Logs / Basic and Digest Authentication for RTSP / Digest Authentication for HTTP / TLS 1.2 / WSSE and Digest Authentication for ONVIF
Client EZStation / APP
Web Browser Support Plug-in Required Live View: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Plug-in-Free Live View: Chrome 57+, Firefox 58+, Edge 16+
Interface
Network Interface 1 × RJ45 10M/100M Base-TX Ethernet
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-In Microphone Supported
Built-In Speaker N/A
Wi-Fi N/A
Video Output N/A
Power
Power Supply 12V DC ±25% / PoE (IEEE 802.3af)
Power Consumption Maximum 6.9W
Power Interface Ø5.5mm Coaxial Power Plug
Environmental
Operating Temperature -30°C to +60°C (-22°F to +140°F)
Operating Humidity ≤95% RH (Non-Condensing)
Storage Temperature -30°C to +60°C (-22°F to +140°F)
Storage Humidity ≤95% RH (Non-Condensing)
Surge Protection 4kV
Ingress Protection IP67
Construction
Material Graphene + Metal
Dimensions 190mm × 73mm × 71mm (7.5" × 2.9" × 2.8") (L × W × H)
Weight 0.40kg (0.88 lb)
Reset Button Supported
Camera Adjustment 3-Axis
Certifications
CE-EMC EN 55032 / EN 61000-3-3 / EN IEC 61000-3-2 / EN 55035
FCC FCC 47 CFR Part 15 B
CE-LVD EN 62368-1
UL / CUL UL 62368-1 / CAN/CSA C22.2 No. 62368-1
Environmental Compliance CE-RoHS (2011/65/EU; (EU) 2015/863)
WEEE (2012/19/EU)
Web Client
Languages English / Simplified Chinese / Polish / German / Russian / French / Korean / Dutch / Czech / Portuguese / Spanish / Spanish (Europe) / Italian

CAMERA FEATURES

  • 8 Megapixel 4K IP Security Camera (3840 × 2160)
  • 1/2.8" CMOS Image Sensor
  • 2.8mm F1.6 Fixed Lens (98.7° Horizontal Field of View)
  • EasyStar Low-Light Technology – 0.005 Lux Color
  • Up to 164 ft Infrared Night Vision
  • Built-In Microphone
  • Human-Based Cross Line Detection
  • Human-Based Intrusion Detection
  • Ultra Motion Detection
  • Audio Detection
  • Ultra 265 / H.265 Video Compression
  • 120dB True Wide Dynamic Range
  • 2D / 3D Digital Noise Reduction
  • Smart IR
  • Digital Defog
  • 9:16 Corridor Mode
  • MicroSD Card Storage – Up to 512GB
  • ONVIF Compatible – Profiles S, G and T
  • Weatherproof – Indoor/Outdoor (IP67)
  • Power over Ethernet (PoE)
  • 12V DC Power Option
  • 4kV Surge Protection
  • 3-Axis Adjustment
  • Graphene + Metal Construction
  • Measurements: 7.5" L × 2.9" W × 2.8" H
  • Weight: 0.88 lb

Approximate Distances

  • Identify: Up to 29 ft
  • Recognize: Up to 57 ft
  • Observe: Up to 114 ft
  • Detect: Up to 285 ft
