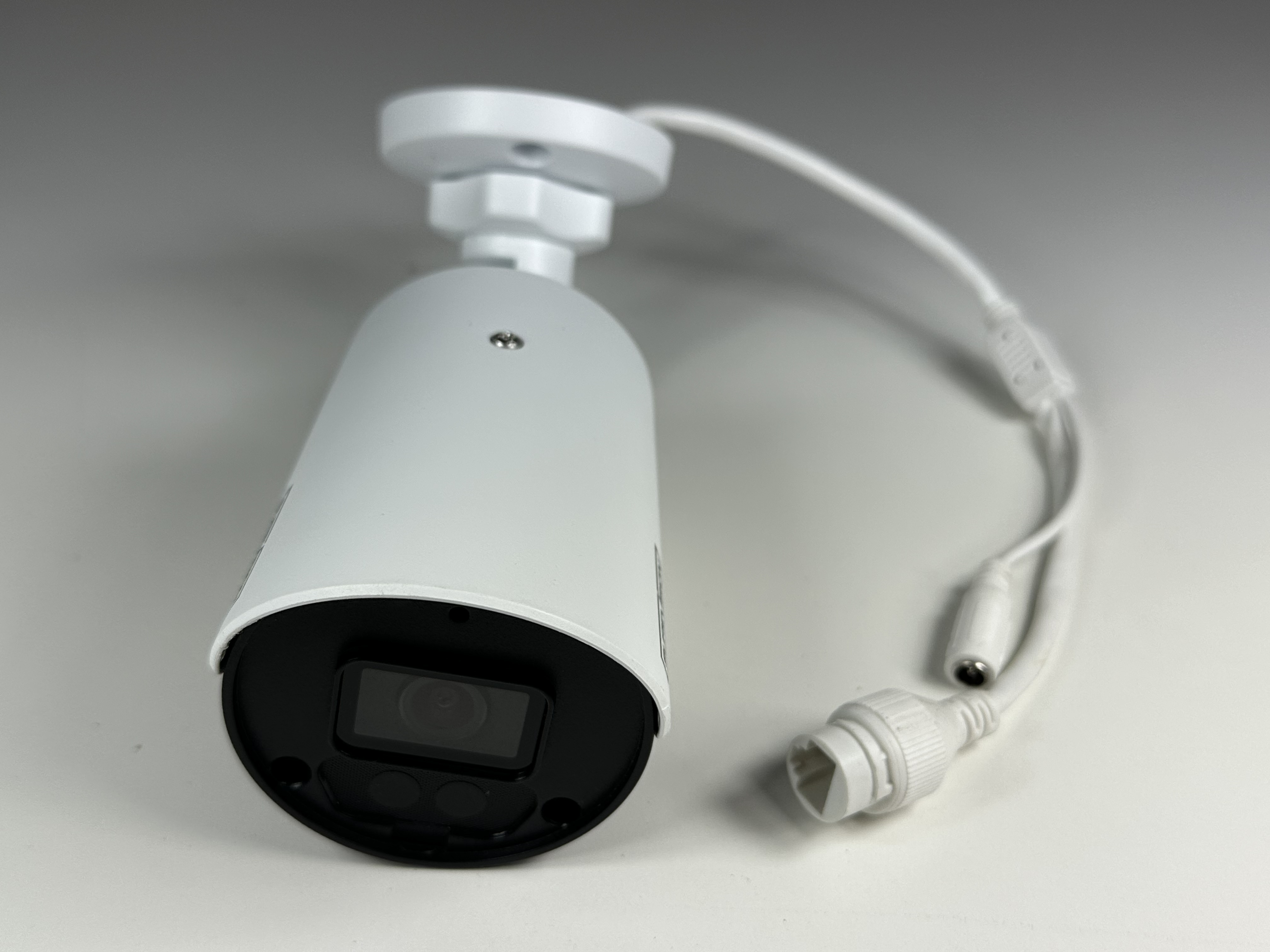

(SV-SB4-N) Green Line - 4MP Infrared Bullet IP Camera / BS1016

Model: BS1016
(SV-SB4-N) Green Line - 4MP Infrared Bullet IP Camera / BS1016
30-Day Money-Back Guarantee
3-Year Product Warranty
Unlimited Live USA Support
Free Shipping
4.8/5 Google Rating 325 Google Reviews
Before code $162.49 Price with CELEBRATE25 Enter CELEBRATE25 at checkout · Ends Friday, October 16
Secure Checkout 30-Day Money-Back Guarantee Expert Help: 888-653-2288

SureVision Camera Features Video

SureVision NVR Features Video

B-Stock Products

B-Stock products offer outstanding value and performance. These items were previously returned by customers and cannot be sold as new. Although many of these cameras appear like new as depicted in their respective images, some have been briefly mounted or may show signs of light use. Please note that original packaging is not always included.

Every B-Stock product is inspected, tested, and factory restored to meet the same performance and reliability standards as a brand-new model. Our B-Stock products are backed by a 90-day limited warranty.



Camera Specifications

Camera
Max Resolution 4 MP
Sensor 1/3.0" CMOS
Min. Illumination Color: 0.003 lux (F1.6, AGC ON); 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N >52 dB
WDR 120 dB
Lens
Focal Length 2.8 mm
Iris Type Fixed Iris F1.6
Field of View (H) 97.0°
Field of View (V) 52.2°
Field of View (D) 107.5°
DORI Distance (2.8mm Lens)
Detect 63.0 m (206.7 ft)
Observe 25.2 m (82.7 ft)
Recognize 12.6 m (41.3 ft)
Identify 6.3 m (20.7 ft)
Illuminator
Supplemental Light IR
IR Illumination Distance 50 m (164.0 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream:
4MP (2688 × 1520), Max 25fps
4MP (2560 × 1440), Max 25fps
3MP (2304 × 1296), Max 30fps
1080P (1920 × 1080), Max 30fps
720P (1280 × 720), Max 30fps

Sub Stream:
720P (1280 × 720), Max 30fps
D1 (720 × 576), Max 30fps
640 × 360, Max 30fps
Video Bit Rate 128 Kbps to 6144 Kbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Dual streams
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital defog
Events
Basic Detection Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users; 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client UNV-Link, UNV-Link Pro, EZStation
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WiFi N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR Part 15 B)
Safety CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC 12V ±25%, PoE (IEEE 802.3af)
Power Consumption Max 5.6W
Power Interface Ø5.5 mm coaxial power plug
Dimensions 190 × 73 × 71 mm (7.5" × 2.9" × 2.8") (L × W × H)
Weight 0.40 kg (0.88 lb)
Material Graphene + Metal
Working Environment -30°C to 60°C (-22°F to 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C to 60°C (-22°F to 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4 KV
Reset Button Support
Web Client Language 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

CAMERA FEATURES

  • 4 Megapixel IP Camera (2688 × 1520)
  • 2.8mm Lens (110° Wide Angle View)
  • Up to 164 ft Infrared Night Vision
  • Starlight – Low-light performance
  • Built-in Microphone
  • H.265 Video Compression
  • Weatherproof – Indoor/Outdoor (IP67)
  • Wide Dynamic Range – WDR (120dB)
  • Power Over Ethernet – PoE
  • Measurements: 7.5" L × 2.9" W × 2.8"

Approximate Distances

  • Identify: Up to 21 ft
  • Recognize: Up to 41 ft
  • Detect: Up to 207 ft
