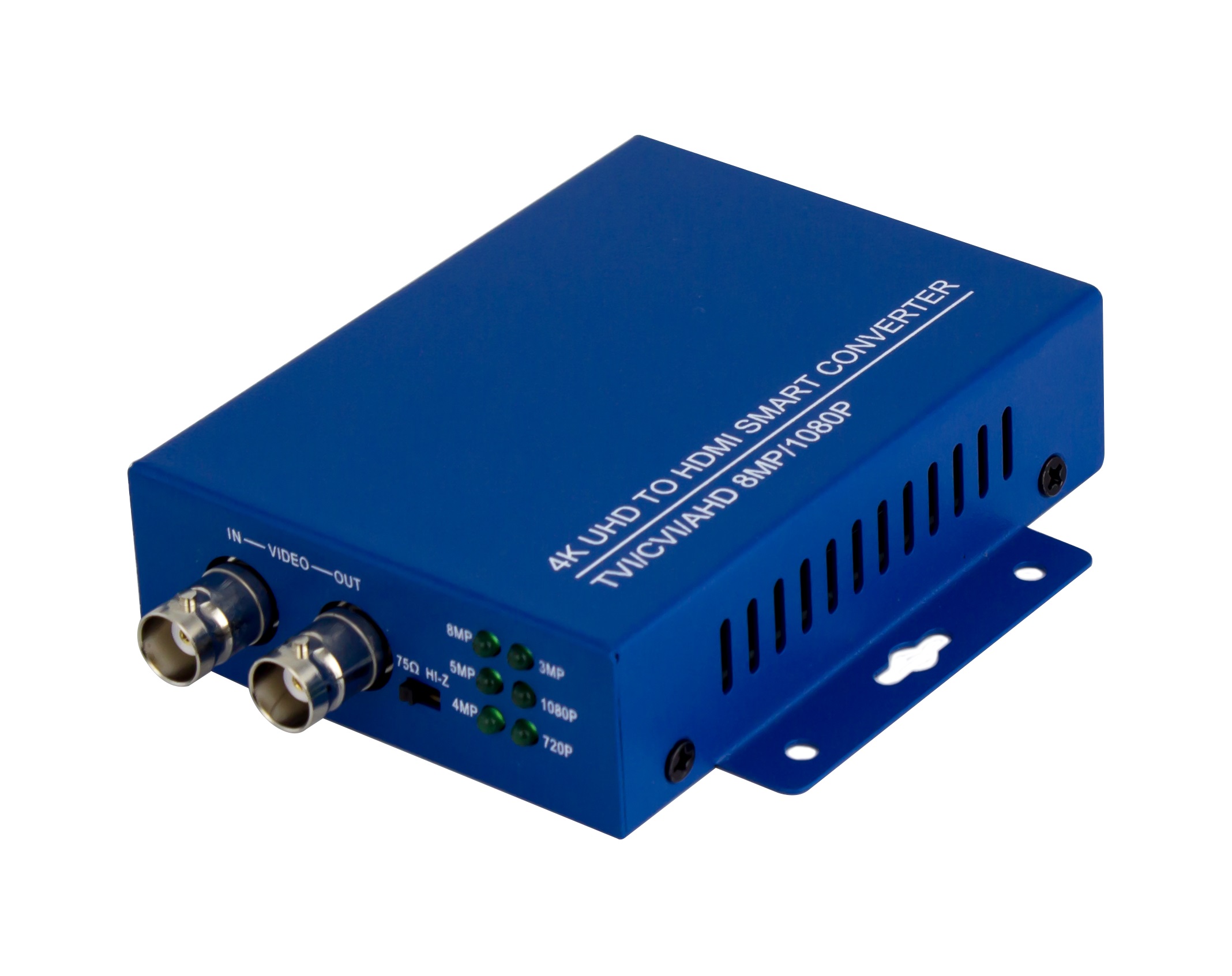

HD Over Coax to HDMI Converter - Stream To Your Display!

$149.99 after 20% promo after 20% promo $119.99
(You save $30.00)
Model: CSP-DSOB
HD Over Coax to HDMI Converter - Stream To Your Display!
superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100
Ask a question

Stream Your HD Over Coax / Analog Cameras Directly To Your TV or Display!

  • Accepts CVI/TVI/AHD/Analog Formats and converts them to HDMI
  • Connect to your DVR with the Loop Out / Spot Out port
  • Zero Configuration - Plug & Play with all formats and displays



AHD/TVI/CVI supported resolution table:

Resolution CVI TVI AHD
720P

1280 x 720P 25/30/50/60 FPS

1280 x 720P 25/30 FPS
1080P

1920 x 1080P 25/30 FPS
3 MP -

2048 x 1536P 18/25/30 FPS
4MP

2560 x 1440P 25/30 FPS

2688 x 1520P 15 FPS / 2560 x 1440P 15/25/30 FPS

2560 x 1440P 15/25/30 FPS
5MP -

2592 x 1944P 12.5/20FPS
4K（8MP）

3840 x 2160P 12.5/15 FPS

3840 x 2160P 15 FPS

Specifications:

Item Description
Optional cable length



One channel CVI/TVI/AHD/CVBS BNC input
Output Port One Channel CVI/TVI/AHD/CVBS BNC output, One channel HDMI output
Impedance

75Ω（When the IN port of the converter is connected to the camera, and the OUT is not connected to the DVR, please set the impedance switch to 75Ω.When the IN port of the converter is connected to the camera and the OUT port is connected to the DVR set to HI-Z.）
Cable length 500~700meters
Power
External power supply DC5V（2A）
General
Working Temperature -10℃~+50℃
Working Humidity 30%-90%
Dimension 109x94x25mm
