One of the most important factors when choosing a security camera is the lens size. The lens determines how wide the camera sees and how much detail it can capture at distance.

Professional security camera systems commonly use lenses such as 2.8mm, 4mm, and 6mm. Each lens size provides a different viewing angle and is better suited for different environments.

What Does a Security Camera Lens Do?

The camera lens controls the camera’s field of view. A smaller lens number creates a wider viewing angle, while a larger lens number focuses on a narrower area but captures more detail farther away.

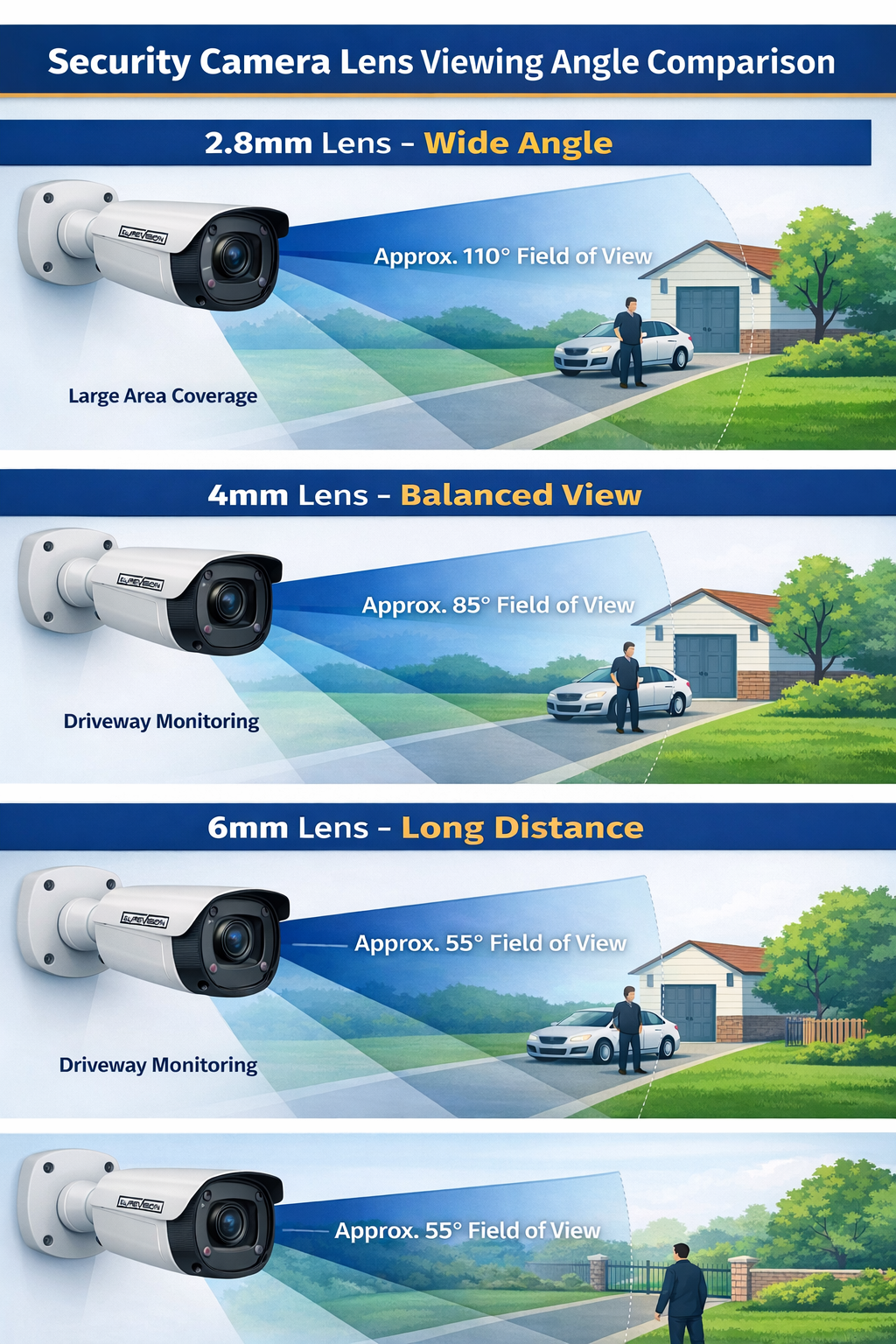

2.8mm Security Camera Lens (Wide Angle)

A 2.8mm lens provides one of the widest viewing angles available on fixed security cameras. It typically captures a field of view around 100° to 110°.

• Ideal for large coverage areas
• Great for indoor rooms and front entries
• Useful for monitoring driveways and general areas
• Captures more scene but less distance detail

This lens is commonly used on bullet security cameras and dome security cameras where wide coverage is needed.

4mm Security Camera Lens (Balanced View)

The 4mm lens provides a more balanced field of view. Many professional installers consider it a strong middle ground between wide coverage and better distance detail.

• Typical viewing angle: 80°–90°
• Great for driveways and front walkways
• Good for storefronts and small parking areas
• Captures better detail than wide-angle lenses

Many businesses choose 4mm lenses for exterior building monitoring where you want a good balance between scene coverage and facial or activity detail.

6mm Security Camera Lens (Long Distance)

A 6mm lens narrows the field of view but increases the camera’s ability to capture distant objects more clearly.

• Viewing angle around 50°–60°
• Ideal for long driveways
• Great for gates and controlled entrances
• Better identification at distance

This lens is a better fit when detail matters more than wide coverage.

Which Lens Should You Choose?

Choosing the Right Lens for Your Property

Most professional installations use a mix of lens types. For example:

• Wide lenses for indoor rooms and general coverage
• Medium lenses for front doors, walkways, and small exterior areas
• Narrow lenses for long driveways, fence lines, and gates

When installed correctly, a professional security camera system combines multiple camera angles to reduce blind spots and give you better overall coverage.

Conclusion

Choosing the right security camera lens is not just about the camera itself — it is about matching coverage and detail to the area you need to protect.

If you need wider coverage, a 2.8mm lens is often the best fit. If you want a more balanced view, 4mm is a strong middle ground. If distance detail matters most, 6mm is usually the better choice.

The best professional surveillance systems use the right camera, the right lens, and the right placement to create dependable coverage for homes and businesses.
