SureVision Complete 2 IP Camera System with 4 Channel NVR / 2IPTD4-B-N

$849.99
Model: SV-2IPTD4-B-N
SureVision Complete 2 IP Camera System with 4 Channel NVR / 2IPTD4-B-N

Select your options:

superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100


This is video monitoring at its best. This is SureVision.

This complete system package comes with our industry leading SureVision NVR. This professional grade NVR unit was designed to be simple and easy to setup while offering unmatched quality, function and reliability. The NVR comes equipped with all of the latest features such as 24/7 recording, motion recording, object masking, mobile alerts, audio and much more. You can easily view and receive instant motion alerts from your cameras remotely on any smartphone, tablet or computer using our free software and mobile apps. Built-in PoE (power over ethernet) makes this unit ideal for simple plug and play setup. All SureVision NVR units have extended PoE allowing you to cable over 800ft away! You can expect the very best surveillance for your business or home with this top of the line NVR.

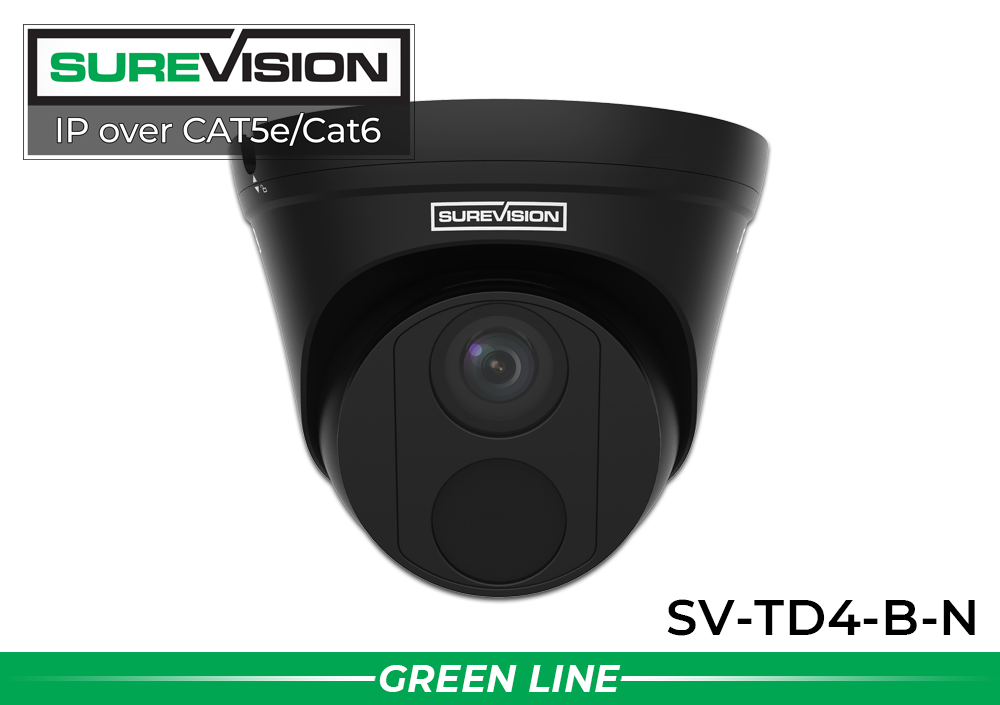

This complete security camera system package includes our SureVision 4 megapixel infrared turret style dome camera with 110 degree extra wide-angle lens and powerful night vision of up to 100ft. This well-designed camera is packed with high-end features including a built-in microphone for audio recording. It also leverages the latest color at night technology to display illuminated images in low light conditions. This professional-grade dome has a 3-axis lens meaning that it can be mounted to a ceiling or wall. Other advanced features of these cameras include WDR used to combat any glare from intense lighting as well as the latest H.265 high video compression technology for extended video storage time. This indoor/outdoor camera is the perfect choice for super high definition with audio.

This Complete High Definition IP Security Camera System comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.

Installation of our IP camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.

*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects

Superior Video Surveillance

The SUREVISION 2 camera IP dome system comes with our SUREVISION network video recorder that’s designed to be easy to set up and use. This complete video surveillance system allows you to individually customize the security settings for each security camera and control and manage surveillance. Enjoy live video footage directly over the internet, smartphone, or tablet.

With CCTV Security Pros products, you pay no monthly fees apart from your high-speed internet connection. Monitor your family at home, business assets, or operations in your business with our remote viewing software and free mobile app anytime, anyplace, and from anywhere. Use our QR code P2P to setup remote viewing for your dome IP camera system.

This Complete HD Security Camera System Includes:

  • (1) 4 Channel SUREVISION HD Network Video Recorder
  • (1) 1 Terabyte Surveillance Grade Hard Drive (installed)
  • (2) 4MP IP Infrared Indoor/Outdoor Turret Dome Security Cameras with over 100 Foot Night Vision
  • (2) 100 Foot CAT5e Cables
  • High Definition LCD Monitor is OPTIONAL
  • Quick Start Instruction Guide
  • Free Remote Viewing Software and Apps
  • Video Surveillance Warning Stickers and Aluminum Sign

home-run-version-1-.pngShop Online Now

Whether you want to enhance your business security or upgrade to a simple yet innovative dual security camera surveillance system, the SUREVISION 2 camera IP dome system offers a true plug-and-play installation with everything you need to complete the setup process. This camera is ideal for both indoor and outdoor applications.

Enjoy full-featured use and functionality with our SUREVISION IP camera systems. Order online 24/7 or call us at CCTV Security Pros for a quote or advice at 888.653.2288.





Security Camera Features:


Specifications:

  • High quality image with 4MP, 1/3"CMOS sensor
  • 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Easystar technology ensures high image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • ONVIF Supported
  • Support PoE power supply
  • 3-Axis





Camera
Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
4.0 90.0 36.0 18.0 9.0
Angle Of View (H) 101.1° 83.7°
Angle Of View (V) 55.3° 44.9°
Angle Of View (O) 111.1° 89.2°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >56dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Interface
Network 10/100M Base-TX Ethernet
Built-in Mic Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.0W
Dimensions (Ø x H) Φ118 x 95mm (Φ4.6" x 3.8")
Net Weight 0.35kg (0.77lb)
Material Metal + Plastic
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67



About the Network Video Recorder:

Features

  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Plug & Play with 4 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • 1 SATA HDD up to 10 TB
  • Support cloud upgrade
TECHNICAL SPECIFICATIONS
Model SV-NVR1P4-N
Video/Audio Input
IP Video Input 4-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 4-ch
Corridor Mode Screen 3/4
Decoding
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080P@30
Hard Disk
SATA 1 SATA interface
Capacity up to 6TB for each disk
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB2.0, 1 x USB3.0
PoE
Interface 4 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 54W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC
Power Consumption: ≤9 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight (without HDD) 1kg (2.20 lb)
NVR FEATURES
  • 4K Ultra High Definition
  • 4 PoE Camera Inputs
  • Remote Viewing – No Monthly Fees
  • H.265 High Video Compression
  • 40 Mbps Incoming Bandwith
  • HDMI and VGA Display Output
  • 1 Hard Drive Bay
CAMERA FEATURES
  • 4 Megapixel IP Camera (2688×1520)
  • 2.8mm Lens (110° Wide Angle View)
  • Up to 100ft Infrared Night Vision
  • Starlight - low light performance
  • Built-in Microphone
  • H.265 Video Compression
  • Weatherproof - Indoor/Outdoor(IP67)
  • Wide Dynamic Range (120dB)
  • Power Over Ethernet - PoE
  • Measurement: 4.6" H x 3.8" D
Approximate Distances:
Identify (Up to 21ft)
Recognize (Up to 41ft)
Detect (Up to 207ft)
