16 Camera 4K Turret IP Security Camera System with Full Color Night Vision
This 16 camera 4K turret IP security camera system gives you professional wired surveillance with 16 SureVision SV-TL8-N 4K turret cameras, full color warm-light night vision, built-in audio, a SureVision NVR, Cat5e camera cables, remote viewing apps, local recording, and expert support — all with no monthly fees ever.
Your 16 camera system includes a professional SureVision NVR plus a FREE 22-inch HD SureVision monitor, giving you a ready-to-view local surveillance station for live view and playback.
Camera & NVR Performance Highlights
A quick look at the most important camera and recorder features before you review the full specifications below.
Camera Features
- 8MP / 4K Ultra HD Resolution
- Full Color Warm-Light Night Vision
- Built-In Microphone for Audio
- 2.8mm Wide Angle Lens
- 111° Horizontal Field of View
- 120dB Wide Dynamic Range
- Smart Intrusion & Crossline Detection
- Ultra 265 / H.265 / H.264 Compression
- Weatherproof IP67 Rated Housing
Recognize: Up to 41.3ft
Detect: Up to 206.7ft
NVR Features
- 16-Channel SureVision NVR
- 16 PoE camera inputs
- 4K HDMI Display Output
- Remote Viewing – No Monthly Fees
- Ultra 265 / H.265 / H.264 Compression
- 320 Mbps incoming / 160 Mbps outgoing
- 16-channel local playback
- Expandable Surveillance Storage
- Smart Search and Playback Tools
Professional 4K Turret IP Cameras with Built-In Audio
The included SureVision SV-TL8-N 4K turret IP cameras are built for customers who want a clean camera style, sharp 4K video, full color night vision, and dependable wired surveillance for business, commercial, and residential properties.
Each camera includes 8MP resolution, warm-light full color night vision, built-in audio, WDR, PoE installation, smart intrusion detection, and IP67 outdoor-rated protection.
As part of a complete PoE security camera system, each camera connects to the recorder with one Cat5e cable for both power and video, making installation cleaner and more dependable than wireless camera kits.
SureVision NVR for Local Recording & Remote Viewing
This system includes a SureVision NVR designed to record, manage, and organize your surveillance footage locally without required subscription fees.
The NVR supports remote viewing, playback, alerts, camera management, and smart search tools so you can monitor your property from your phone, tablet, PC, or Mac.
With local storage, PoE camera support, and professional expandability, this recorder gives you full ownership and control of your security footage. This system also includes a free 22-inch HD SureVision monitor for local viewing.
What This 16 Camera 4K Security Camera System Includes & Does

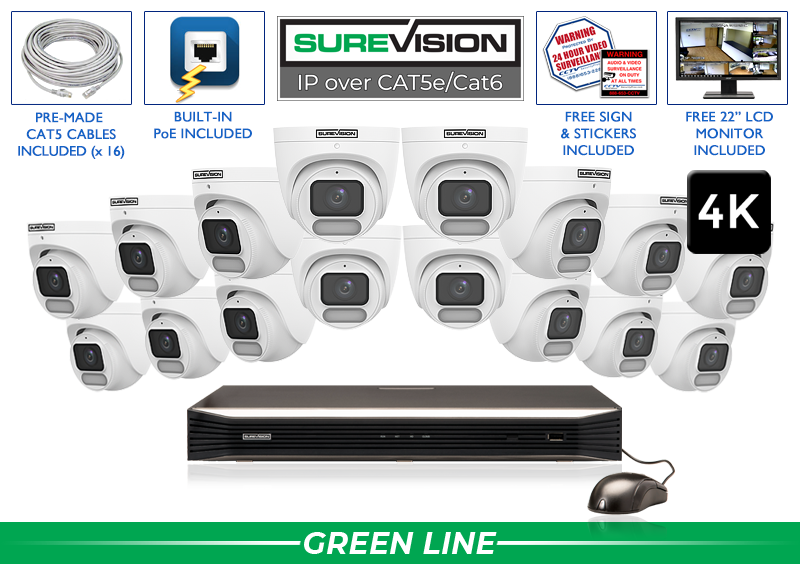

This complete 16 camera 4K IP camera system includes everything you need to build a reliable wired surveillance setup: 16 professional SV-TL8-N turret IP cameras, SureVision NVR, surveillance storage, Cat5e camera cables, free app access, quick start guide, surveillance sign and stickers, and lifetime support.
The cameras capture high-resolution 4K video while the NVR records, stores, organizes, and manages your footage. You can watch live video, search recorded events, receive alerts, export evidence, and monitor your property remotely without monthly fees.
This system is built for customers who want a professional 4K security camera system with full color night vision, built-in audio, and dependable wired PoE performance instead of a basic consumer kit.
Perfect For
Everything Included With Your 16 Camera System
| Model: SV-TL8-N | |
| Max Resolution | 8 MP |
| Sensor | 1/1.8" CMOS |
| Minimum Illumination | Color: 0.0003 Lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | 120 dB |
| Focal Length | 2.8 mm fixed lens |
| Iris | F1.0 fixed iris |
| Field of View | 111.0° H / 63.0° V / 131.0° D |
| DORI Distance | Detect 206.7 ft; Observe 82.7 ft; Recognize 41.3 ft; Identify 20.7 ft |
| Supplemental Light | Warm light |
| Illumination Distance | Warm light up to 98.4 ft; Auto/Manual light control |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8MP (3840 × 2160) max 20fps; 5MP, 4MP, 1080P, and 720P up to 30fps. Sub Stream: 1080P, 720P, D1, 640 × 360, 2CIF, CIF up to 30fps. |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| Video Stream | Dual streams |
| Image Features | White balance, 2D/3D DNR, Smart Illumination, HLC, BLC, digital defog, flip, privacy mask, ROI, OSD |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| Smart Intrusion Prevention | Intrusion and crossline detection based on human body and vehicle detection |
| Audio | Built-in microphone support; G.711U/G.711A; 64 Kbps; 8 kHz sampling; two-way audio N/A |
| Edge Storage | MicroSD up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF Profile S, Profile G, Profile T, API, SDK |
| Network Interface | 1 × RJ45 10M/100M Base-TX Ethernet |
| Protection | IP67, 4KV surge protection |
| Power | DC 12V ±25%, PoE IEEE 802.3af |
| Power Consumption | Max 3.9W |
| Dimensions / Weight | Ø118mm × 106mm; 0.48kg / 1.06 lb |
| Material / Environment | Metal + Plastic; -30°C to 60°C; Humidity ≤95% RH non-condensing |
| Certifications | CE, FCC, UL/CUL, RoHS, WEEE |
| Model: SV-NVR2P16-N | |
| IP Video Input | 16-channel |
| Recording Resolution | 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Decoding Format | Ultra 265, H.265, H.264 |
| Playback | 16-channel local playback |
| Incoming / Outgoing Bandwidth | 320 Mbps incoming / 160 Mbps outgoing |
| HDMI Output | Up to 4K display output |
| VGA Output | Up to 1920 × 1080 |
| Hard Drive Storage | Surveillance hard drive included; supports expandable internal storage depending on selected recorder configuration |
| PoE Support | 16 PoE camera inputs |
| Network Interface | RJ45 Ethernet network interface for local network and remote viewing access |
| Remote Viewing | Free mobile app and desktop software access with no monthly fees required |
| Smart Features | Motion alerts, smart search, playback tools, event search, camera management, and compatible camera analytics support |
| Alarm / Event Support | Motion, tampering, video loss, disk alerts, network alerts, and compatible smart camera event support |
| Operating Environment | Professional indoor recorder environment; store in a clean, ventilated, dry location |
| Warranty / Support | 3-year warranty and unlimited USA-based technical support from CCTV Security Pros |
| Free Monitor | Free 22-inch HD SureVision monitor included with this system |
