Name: Security Camera System with 2 4K IP Cameras with COLOR Day and Night Performance
SKU: SV-2IPTL8-N
Price: 1399.99 USD
Availability: InStock

SureVision • SV-2IPTL8-N

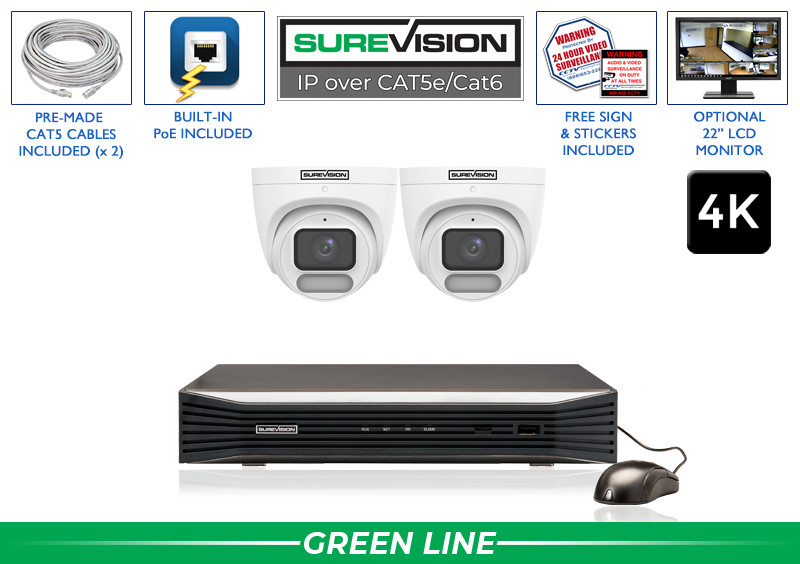

2 Camera 4K full-color turret PoE Security System

The choice is clear. Protect what you have worked hard to build with a professional hardwired system that keeps you connected to your property. This package brings 2 SureVision SV-TL8-N 4K full-color turret cameras together with a 4-channel SV-NVR1P4-N network video recorder for live viewing, local recording and practical incident review.

Professional equipment, real support

CCTV Security Pros has served government, business and residential customers since 2008. Your SureVision system is backed by a three-year limited product warranty, a money-back guarantee and unlimited U.S.-based technical support, subject to the applicable terms. Get help with installation, remote viewing and making the most of your system.

Your cameras and recorder

2 × SV-TL8-N

SureVision 4-channel NVR • SV-NVR1P4-N

See the areas that matter

The 2.8mm lens provides broad coverage. Warm-light illumination reaches up to 98.4 feet under specified conditions, and the built-in microphone adds sound to recorded video. IP67 protection supports indoor or outdoor placement. Use the two views for front and rear access, or for a reception area and stockroom.

Your footage stays with you

The recorder brings your cameras into one viewing and recording system. Check several areas together, select a camera for a closer look, and review recordings when you need to check a delivery or an after-hours event. Export useful footage for later review or sharing.

The 4-channel recorder leaves capacity for 2 more compatible cameras, within its specifications. This package includes a preinstalled 4TB surveillance hard drive. Recording time depends on resolution, frame rate, bitrate and recording settings.

Stay connected when you are away

Use compatible free mobile and desktop viewing software to see live video and review recordings from your phone or computer. Remote viewing requires a working internet connection. Local recording continues without internet, and there are no required monthly recording or remote-viewing fees.

Simple wired connections

PoE carries power and video over one Ethernet cable per camera. The package includes 2 premade 100-foot Cat5 camera cables, one for each camera. Choose the recording schedule and settings that suit your property. Allow a little extra cable length for routing and slack. A free surveillance yard sign and warning stickers are included with complete systems.

What’s Included With Your System

2 SureVision cameras — SV-TL8-N
1 SureVision 4-channel network video recorder — SV-NVR1P4-N
4TB surveillance hard drive, preinstalled
2 premade 100-foot Cat5 camera cables — CSP-C100
Free remote-viewing app and desktop software
Free surveillance yard sign and warning stickers

Storage, cable and monitor selections on the product page determine your final configuration.

Common questions

Does recording need internet?

No. Recordings stay on the local recorder. Internet is needed for remote access while you are away.

Can I review an earlier event?

Yes. Use playback and search to review the camera and time period you need, then export useful footage.

Need a different mix? Explore our custom security camera system builder or call 888-653-2288.

Full Technical Specifications

Full camera specifications — SV-TL8-N

Maximum Resolution	8MP 4K Ultra HD
Built-In Audio	Built-in microphone
Night Viewing	Warm-light full-color and ultra-low-light color modes
Installation	PoE network connection with IP67 indoor/outdoor protection

Max Resolution	8 MP
Sensor	1/1.8" CMOS
Min. Illumination	Color: 0.0003 Lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	>52 dB
WDR	120 dB

Focal Length	2.8 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	111.0°
Field of View (V)	63.0°
Field of View (D)	131.0°
Lens Type	Fixed

DORI Distance (Lens)	2.8 mm
DORI Distance (Detect)	63.0 m (206.7 ft.)
DORI Distance (Observe)	25.2 m (82.7 ft.)
DORI Distance (Recognize)	12.6 m (41.3 ft.)
DORI Distance (Identify)	6.3 m (20.7 ft.)

Supplemental Light	Warm light
Illumination Distance	30 m (98.4 ft.)
Light On/Off Control	Auto/Manual

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps. Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps.
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams

White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart Illumination	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Image Stabilization	N/A

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Smart Intrusion Prevention (Lite)

Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+. Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 3.9 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)
Weight	0.48 kg (1.06 lb.)
Material	Metal + Plastic
Working Environment	-30 C to 60 C (-22 F to 140 F), Humidity: <= 95% RH (non-condensing)
Storage Environment	-30 C to 60 C (-22 F to 140 F), Humidity: <= 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

Full recorder specifications — SV-NVR1P4-N

Model	SV-NVR1P4-N
Included Storage	4TB surveillance-grade hard drive, preinstalled
Decoding
Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	Ultra 265/H.265: 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30 H.264: 2 × 16MP(4800×2688)@30, 2 × 12MP@30, 2 × 4K@30, 4 × 5MP@30
Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio Compression	G.711A, G.711U
Network
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	64 Mbps
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video / Audio Input
IP Video Input	4-ch
RCA Audio Input	1-ch
Video / Audio Output
HDMI Output	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output	1-ch
Liveview Display	1 / 4
Corridor Mode Screen	3 / 4
Two-Way Audio
Two-Way Audio	1-ch, RCA (using the audio input and output)
Snapshot
FTP / Schedule / Event Snapshot	4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution	16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Smart
Smart by IPC	Total 4-ch (Face Detection, SIP, UMD)
VCA Search	Face Snapshot Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Alarm
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
Languages	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	1 SATA Interface
Included Hard Drive	1 × 4TB surveillance-grade hard drive, preinstalled
Capacity	Up to 20TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size. The environment temperature for use should not exceed 40°C.)
External Interface
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet Interface
RS485	N/A
RS232	N/A
Alarm In	N/A
Alarm Out	N/A
Power Supply	DC 48 V / 1.35 A
PoE
PoE Interface	4 RJ45 10 M/100 M self-adaptive Ethernet PoE Interface
Max Power	Max 30 W for single port, Max 50 W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature	-10 C to 55 C (14 F to 131 F)
Working Humidity	<= 90% RH (non-condensing)
Power Consumption (without HDD)	<= 10W
Weight (without HDD)	<= 1.1Kg (2.43lb)
Dimensions	260mm × 222mm × 47mm (10.2"×8.7"×1.8")
Certification
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B
