SureVision NVR Features Video
Protect what you’ve built. Stay connected to what matters.
You worked hard to build it. We help you keep it. Put professional cameras with durable metal housings, dependable recording and free viewing tools to work for the home and business that mean so much to you.
Coverage around your property.
Keep entrances, interior spaces and outdoor areas in view. Want to change a camera? Build a system around your property.
Leave with confidence.
Check your home while you travel or your shop after closing. Free remote viewing lets you stay connected from your phone.
Know what happened.
Review a delivery or unexpected activity. Find the recording and save the video you need. Explore the built-in tools.
Professional security. Made easy. Straightforward connections and help from our USA team—from planning your camera views to setting up remote viewing.
No Monthly Fees for remote viewing · Free viewing software and software updates · 3 Year Warranty · Unlimited USA Technical Support
SureVision • SV-4IPT5IR-N

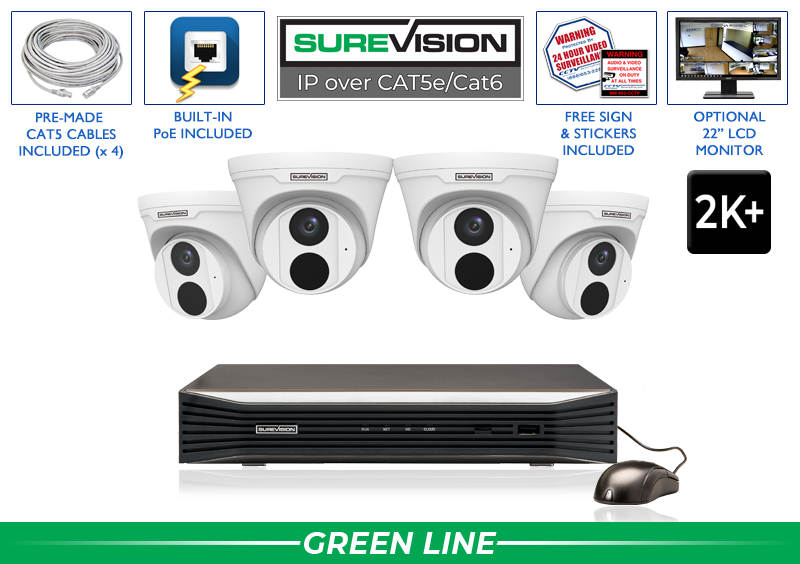

4 Camera 5MP 2K+ PoE Dome Security Camera System with Audio & Night Vision
See your property in detailed 2K+ video. Cover a wide area. Record sound with your video.
See your property in 5MP 2K+ with 4 SureVision turret cameras. Each has a 2.8mm wide-angle lens, infrared night vision up to 100 feet in total darkness, and a built-in microphone for audio recording. Your system includes an 8-channel recorder, 4TB of storage, and free remote viewing with no monthly fees.
Connect all 4 included cameras now and add up to 4 more as your coverage needs grow. Your system includes 4TB of pre-installed surveillance storage.
Your cameras and recorder
Wide-angle coverage for everyday security
The included 2.8mm wide-angle cameras are a popular choice for rooms, lobbies, retail floors, and broad outdoor areas. 4 cameras give you multiple views across your property.
Choose the view you need
- 2.8mm wide-angle lens: This lens gives you a wide view of rooms, entrances, retail floors, and broad outdoor areas.
What makes this system a practical choice?
5MP 2K+ definition
See faces, clothing, and everyday activity more clearly with 5MP 2K+ video. All 4 cameras record at up to 2592 × 1944 resolution.
Night vision up to 100 feet
See activity up to 100 feet away in total darkness with built-in infrared night vision.
Built-in microphone
Hear what happened as you review your video. Each camera has a built-in microphone that records sound.
Digital zoom
Take a closer look at activity with digital zoom. Enlarge part of the live view or recorded video when you need to review a detail.
PoE installation
Connect each camera to the recorder with 1 network cable. PoE carries power and video through that cable, so you do not need a separate power outlet at each camera.
Indoor and outdoor cameras
Use the weatherproof cameras indoors or outdoors. Monitor entrances, rooms, parking areas, and building exteriors with the same system.
Local recording and free remote viewing
Keep your recordings on the included 4TB hard drive. Watch live video and review recordings from your phone or computer with an internet connection. Remote viewing has no monthly fees.
Room for 4 more cameras
Start with 4 cameras and add up to 4 more later. The included 8-channel recorder gives you room to expand without replacing it.
What’s included
- 4 SureVision 5MP 2K+ turret cameras (SV-T5IR-N)
- 1 SureVision 8-channel NVR — free recorder upgrade
- 4TB pre-installed surveillance hard drive
- 4 × 100-foot Cat5 camera cables
- Free remote-viewing app and software
- Unlimited U.S.-based technical support
Storage upgrades, cables, and other configuration choices follow the product options selected when ordering.
Professional equipment, backed by people who can help
Your system includes a 3-year product warranty and a 30-day money-back guarantee. Our U.S.-based team can help with camera placement, setup, and remote viewing.
Need help planning your coverage? Call 888-653-2288.Common questions before you choose
Do I need internet for the system to record?
The cameras record locally to the NVR’s hard drive. An internet connection is needed for viewing your system remotely from outside the property.
Does this system record audio?
Yes. Each included camera has a built-in microphone for audio recording.
How long will the included 4TB hard drive keep footage?
Recording time depends on the number of cameras, video settings, and recording schedule. Tell us how much video history you want to keep and we can help you choose the storage.
See the SureVision recorder in action
Complete technical specifications
| Feature | Specification |
|---|---|
| Camera Model | SureVision SV-T5IR-N |
| Camera Type | 5MP 2K+ fixed-lens IP turret security camera |
| Maximum Resolution | 5MP, 2592 × 1944 |
| Image Sensor | 1/3-inch progressive-scan CMOS |
| Minimum Illumination | Color: 0.02 Lux at F2.1 with AGC on; 0 Lux with IR on |
| Day / Night | IR-cut filter with automatic switching |
| Shutter | Auto / Manual, 1 to 1/100000 second |
| Adjustment | Pan: 0° to 360°; Tilt: 0° to 80°; Rotate: 0° to 360° |
| Signal-to-Noise Ratio | Greater than 56 dB |
| Wide Dynamic Range | Digital WDR |
| Noise Reduction | 2D / 3D digital noise reduction |
| Lens & Viewing Angle | |
| Lens | 2.8mm fixed lens, F2.1 aperture |
| Horizontal Field of View | 89.1° |
| Vertical Field of View | 47.3° |
| Diagonal Field of View | 94.3° |
| Approximate Viewing Distances | |
| Detect | 63.0 m / 206.7 ft. |
| Observe | 25.2 m / 82.7 ft. |
| Recognize | 12.6 m / 41.3 ft. |
| Identify | 6.3 m / 20.7 ft. |
| Night Vision, Video & Audio | |
| Night Vision | Smart infrared up to 30 m / approximately 98 ft., marketed as up to 100 ft. |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Main Stream | 5MP 2592 × 1944 up to 20 fps; 4MP and 3MP up to 20 fps; 1080p and 720p up to 30 fps |
| Image Features | HLC, BLC, digital defog, privacy masking, ROI, OSD |
| Audio | Built-in microphone; G.711 audio compression; 8 kHz sampling |
| Network, Power & Environment | |
| Network | 1 × RJ45 10/100 Mbps Ethernet |
| Integration | ONVIF Profiles S and T; API |
| Onboard MicroSD Storage | Not supported |
| Power | 12V DC ±25% or PoE |
| Maximum Power Consumption | 4.5 W |
| Weather Protection | IP67 indoor / outdoor rated |
| Operating Temperature | -30°C to 60°C / -22°F to 140°F |
| Surge Protection | 4 kV |
| Dimensions | Ø118 × 97 mm / Ø4.6 × 3.8 in. |
| Feature | Specification |
|---|---|
| Model | SV-NVR2P8-N |
| Recorder Type | SureVision 8-channel PoE Network Video Recorder |
| IP Video Input | 8 IP camera channels |
| Camera Capacity Used | 4 cameras included / 4 channels available for expansion |
| Decoding Format | Ultra 265, H.265 and H.264 |
| Recording Resolution | Supports high-resolution IP recording including 5MP and 4K-class camera formats |
| Display, Recording & Playback | |
| HDMI Output | Up to 4K monitor output |
| VGA Output | HD monitor output supported |
| Recording Modes | Continuous, scheduled, motion-triggered and event-based recording |
| Playback | Live viewing, timeline playback, recorded video search and evidence review |
| Video Export | Recorded video evidence export supported |
| Storage, PoE & Remote Viewing | |
| Included Storage | 4TB surveillance-grade hard drive |
| Storage Expansion | Expandable internal surveillance storage |
| PoE Camera Connections | Built-in PoE ports for compatible IP cameras |
| Remote Viewing | Compatible iPhone, Android, PC and Mac remote access |
| Mobile App | Free SureVision mobile viewing app |
| Desktop Software | Free desktop surveillance management software |
| Compatibility | SureVision and compatible ONVIF IP cameras |
| Monthly Recording Fees | None required for local recording |
