SureVision NVR Features Video
Complete Security Camera System with Cameras and Recorder
A professional 8 camera security camera system gives homes and businesses a complete wired surveillance package built for stable recording, easier installation, and long-term reliability. This system combines eight SureVision SV-T5IR-N 5MP 2K+ turret security cameras with built-in microphones, a 16-channel network video recorder, Cat5e camera cables, free remote viewing software, and professional monitoring tools in one dependable package.
Unlike consumer-grade wireless kits that depend on unstable Wi-Fi or paid cloud plans, these systems use direct PoE wiring from camera to recorder. That means cleaner installation, more dependable video transmission, and local recording you control. Each camera simply snaps into the recorder with a Cat5e cable, making the setup much easier than most buyers expect while still delivering professional performance.
Every package on this 8-camera page is designed around buyer-intent features that matter most: smart motion detection, perimeter monitoring, mobile alerts, built-in software tools, and no monthly fees for core recording. Looking for more options? Browse all security camera systems, compare IP security cameras, or view compatible NVR recorders to build the right solution for your property.
Why Professionals Choose This System
- Plug-and-play installation with one Cat5e cable per camera
- Smart motion detection, perimeter monitoring, and mobile alerts
- Free remote viewing for iPhone, Android, PC, and Mac
- No monthly fees or cloud plan required for core recording
- High-resolution 5MP 2K+ video with built-in microphones
- 3-year warranty, money-back protection, and lifetime support

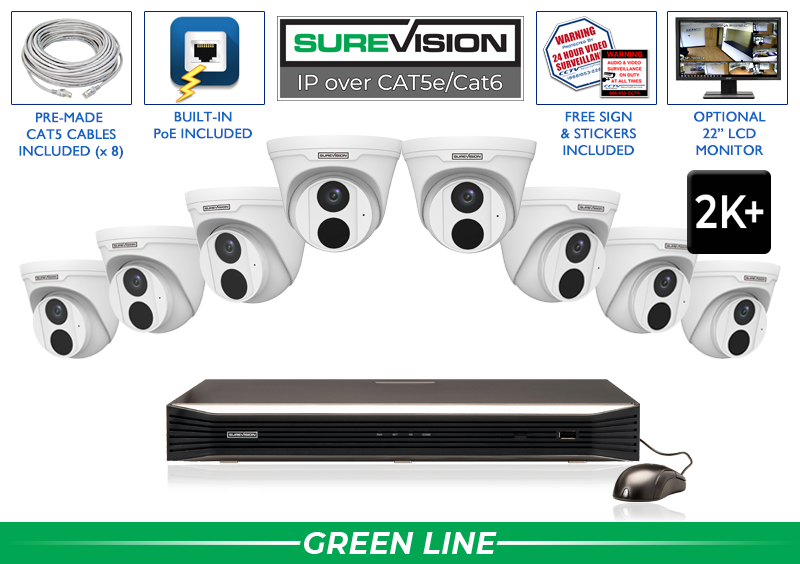

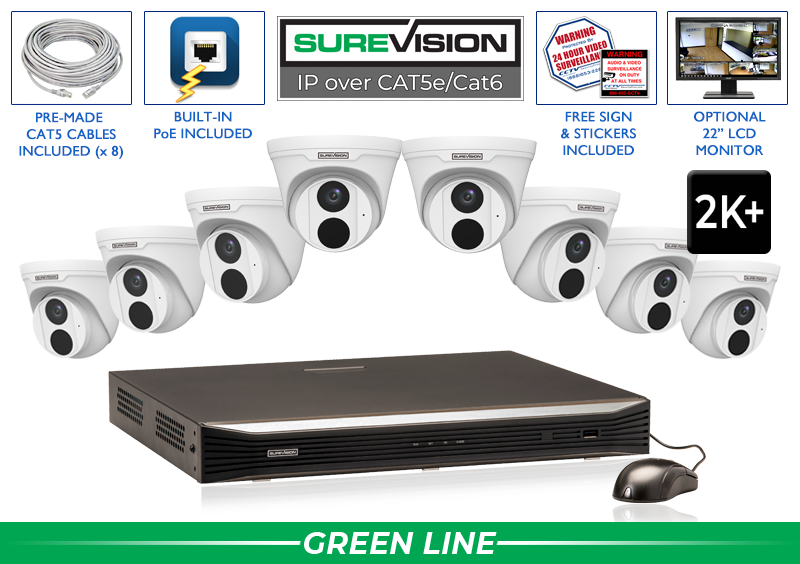

8 Camera 5MP Turret Security Camera System
This 8 camera PoE security camera system is built for buyers who want dependable professional surveillance, high-resolution image quality, and a better long-term ownership experience than typical consumer kits. It is a strong fit for larger homes, offices, retail stores, warehouses, service businesses, churches, restaurants, apartment properties, and mixed indoor/outdoor locations that need broad coverage from one recorder.
Because the recorder supports up to 16 channels, this package gives you eight cameras now while preserving future expansion headroom. That makes it especially attractive for customers who may want to add cameras later instead of replacing the recorder. The included software and mobile apps also make it practical for owners, managers, and installers who want live view, playback, alerts, and search tools without extra monthly charges.

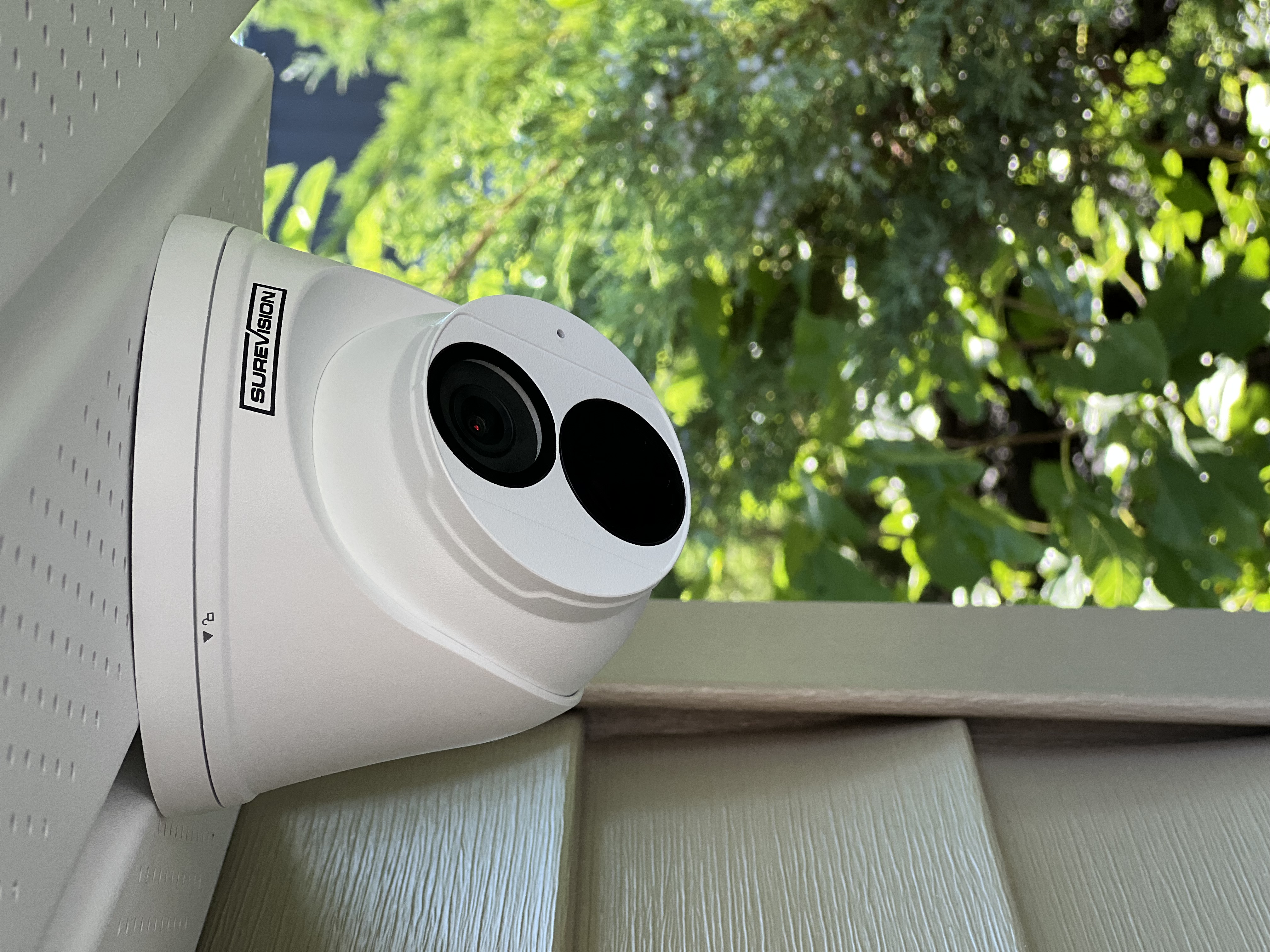

The included SureVision SV-T5IR-N cameras deliver high-resolution 5MP 2K+ video, use a 2.8mm fixed lens, include a built-in microphone, and provide up to 100 feet of Smart IR night vision. Their clean turret design combines the low-profile appearance of a dome with flexible three-axis aiming for wall, ceiling, soffit, and overhang installations. The cameras are IP67-rated for dependable indoor or outdoor use and connect through PoE, allowing power and video to travel through one Cat5e cable per camera. This system is ideal for monitoring entrances, driveways, retail floors, hallways, offices, parking areas, warehouses, loading zones, and building exteriors while maintaining local ownership of recorded footage and room to expand on the included 16-channel recorder.

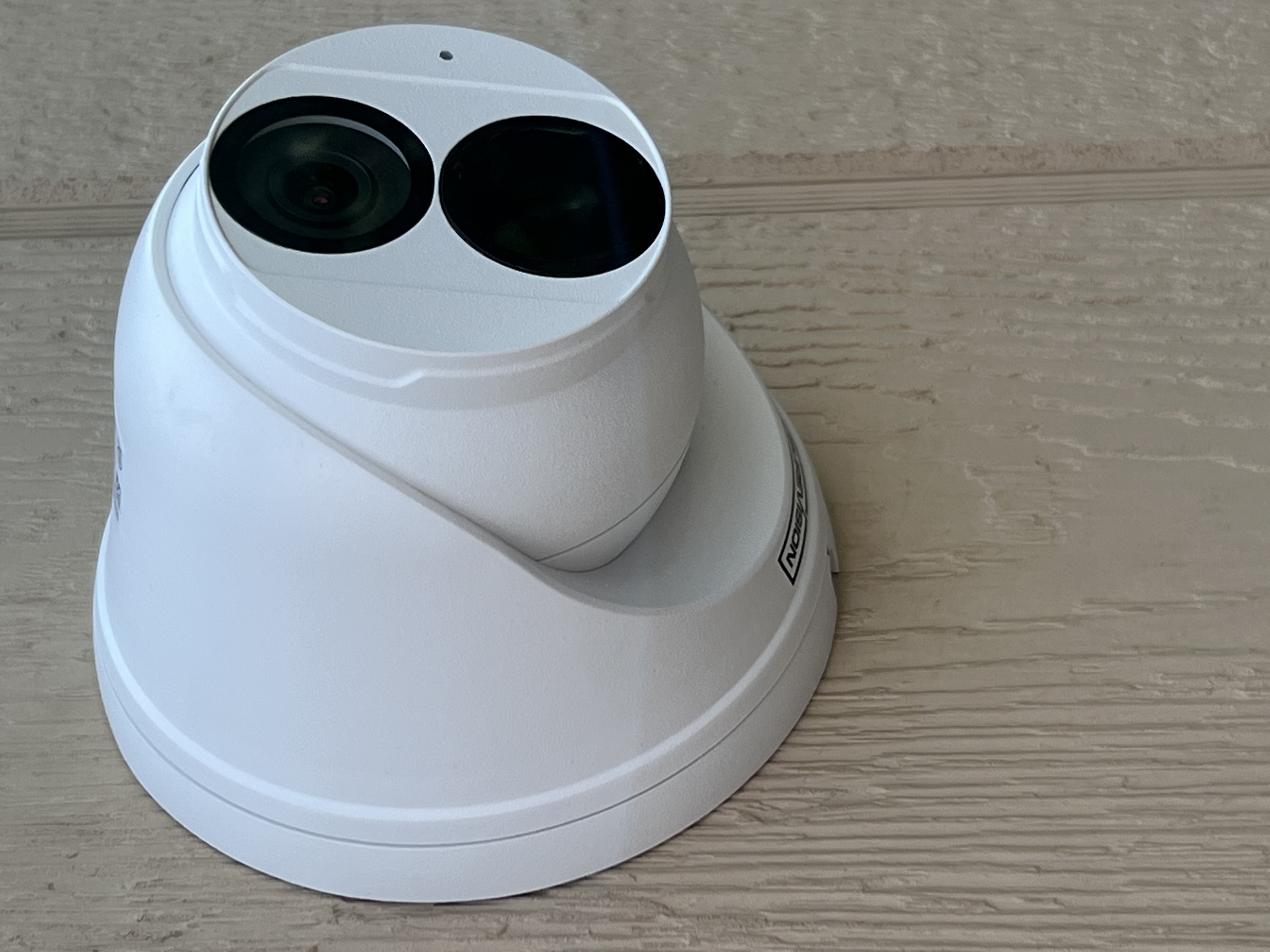

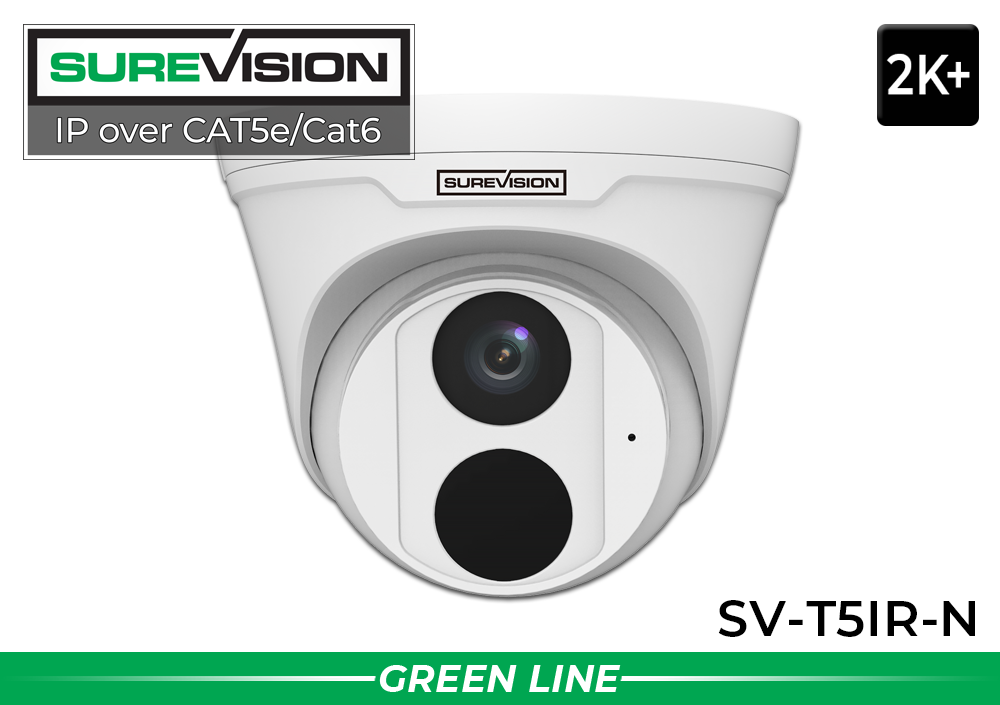

High-Resolution SV-T5IR-N 5MP Turret Security Cameras
This complete system includes eight SureVision SV-T5IR-N 5MP turret security cameras engineered to provide sharp 2K+ video, dependable day-and-night surveillance, and excellent long-term value. Each camera combines a 5MP image sensor, built-in microphone, 2.8mm fixed lens, Smart IR illumination up to approximately 100 feet, and weather-resistant IP67 construction for reliable indoor or outdoor monitoring.
The SV-T5IR-N records at up to 2592 × 1944 resolution, delivering greater detail than standard 1080p cameras. This additional resolution helps produce clearer images of people, clothing, packages, vehicles, and activity throughout the scene, especially when reviewing recorded footage or digitally enlarging an important area.
A built-in microphone allows each camera to capture audio with video when enabled and legally permitted. The fixed 2.8mm lens provides an approximately 89.1° horizontal field of view, while the three-axis turret design makes aiming simple after installation. PoE connectivity carries power and video through a single Cat5e network cable, creating a cleaner and more dependable installation than battery-powered or Wi-Fi-only cameras.
Network Video Recorder (NVR)
The included 16-channel network video recorder is the core of every system in this file. It provides local recording, PoE power for the cameras, 4K-class output, remote access, and the built-in tools that make a professional wired system easier to manage over the long term. Because video is stored locally on the recorder, you keep full control of your footage and avoid recurring subscription costs. This recorder family supports up to 16 camera inputs, so even when you start with an 8-camera package, you still have room to expand later. It also supports live view, playback, motion and analytics-based search, HDMI/VGA display output, mobile and desktop remote viewing, alarm handling, and dual hard-drive bays for larger storage options. For customers who want a premium system rather than a throwaway consumer kit, the recorder is one of the biggest reasons these packages perform like real surveillance systems instead of simple app gadgets.
What’s Included with This System
- 8 professional SureVision SV-T5IR-N 5MP 2K+ IP turret security cameras
- 16-channel network video recorder
- 2TB surveillance-grade hard drive (base included on product page family)
- Cat5e camera cables for each camera
- Free remote viewing apps and desktop software
- Smart motion detection and perimeter monitoring tools
- No monthly fees for core local recording
- 3-year warranty and lifetime technical support
SV-T5IR-N Camera Technical Specifications
| Feature | Specification |
|---|---|
| Camera Model | SureVision SV-T5IR-N |
| Camera Type | 5MP 2K+ fixed-lens IP turret security camera |
| Maximum Resolution | 5MP, 2592 × 1944 |
| Image Sensor | 1/3-inch progressive-scan CMOS |
| Minimum Illumination | Color: 0.02 Lux at F2.1 with AGC on; 0 Lux with IR on |
| Day / Night | IR-cut filter with automatic switching |
| Shutter | Auto / Manual, 1 to 1/100000 second |
| Adjustment | Pan: 0° to 360°; Tilt: 0° to 80°; Rotate: 0° to 360° |
| Signal-to-Noise Ratio | Greater than 56 dB |
| Wide Dynamic Range | Digital WDR |
| Noise Reduction | 2D / 3D digital noise reduction |
| Lens | 2.8mm fixed lens, F2.1 aperture |
| Field of View | Horizontal: 89.1°; Vertical: 47.3°; Diagonal: 94.3° |
| DORI Distances | Detect: 63.0 m (206.7 ft.); Observe: 25.2 m (82.7 ft.); Recognize: 12.6 m (41.3 ft.); Identify: 6.3 m (20.7 ft.) |
| Night Vision | Smart infrared up to 30 m / approximately 98 ft., marketed as up to 100 ft. |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Main Stream | 5MP 2592 × 1944 up to 20 fps; 4MP and 3MP up to 20 fps; 1080p and 720p up to 30 fps |
| Image Features | HLC, BLC, digital defog, privacy masking, ROI, OSD |
| Audio | Built-in microphone; G.711 audio compression; 8 kHz sampling |
| Network | 1 × RJ45 10/100 Mbps Ethernet |
| Integration | ONVIF Profiles S and T; API |
| Onboard MicroSD Storage | Not supported |
| Power | 12V DC ±25% or PoE |
| Maximum Power Consumption | 4.5 W |
| Weather Protection | IP67 indoor / outdoor rated |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Surge Protection | 4 kV |
| Dimensions | Ø118 × 97 mm (Ø4.6 × 3.8 in.) |
Recorder (NVR) Technical Specifications
| Feature | Specification |
|---|---|
| IP Video Input | 16-channel |
| Two-way Audio Input | 1-channel RCA |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | Up to 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6 |
| Video Output | HDMI and VGA |
| HDMI Resolutions | Up to 4K (3840x2160)@30 plus 1080p, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-channel RCA; G.711A / G.711U |
| Synchronous Playback | 16-channel |
| Live View Layouts | 1 / 4 / 6 / 8 / 9 / 16 |
| Snapshot | FTP / schedule / event snapshot |
| Decoding Format | Ultra 265, H.265, H.264 |
| Drive Bays | 2 SATA bays |
| Drive Capacity | Up to 20TB per HDD |
| Smart Analytics | Vehicle detection, intrusion, cross line, enter/leave area, UMD, metadata, people counting support |
| Alarm I/O | 8 alarm inputs / 2 alarm outputs |
| Network Interface | 1 RJ45 10/100/1000 self-adaptive Ethernet |
| PoE Ports | 16 x RJ-45 10/100 PoE interfaces |
| PoE Budget | 30W max per port / 240W total |
| Supported Standard | IEEE 802.3af/at |
| Power Supply | 100–240V AC |
| Recorder Size | 380 x 315 x 53mm (15.0" x 12.4" x 2.1") |
| Operating Environment | -10°C to +55°C, ≤90% RH non-condensing |
| Certifications | CE, FCC, UL, RoHS, WEEE |
Shop Professional Security Camera Systems by Camera Count
CCTV Security Pros offers complete security camera systems for properties of every size. Browse nearby system sizes, compare compatible IP security cameras, or view matching NVR recorders to build the right solution for your property.
How many security cameras do you need?
Choosing the right security camera system size depends on the number of entrances, exits, hallways, parking areas, and outdoor zones you want to monitor. Smaller properties may only need 2 or 4 cameras, while larger homes and businesses often need 8, 16, 24, 32, or even 64 camera systems for complete coverage. If you are unsure, our team can help size the right cameras, recorder, and storage for your layout.
