SureVision Camera Features Video
SureVision NVR Features Video
Protect what you’ve built. Stay connected to what matters.
You worked hard to build it. We help you keep it. Put professional cameras with durable metal housings, dependable recording and free viewing tools to work for the home and business that mean so much to you.
Coverage around your property.
Keep entrances, interior spaces and outdoor areas in view. Want to change a camera? Build a system around your property.
Leave with confidence.
Check your home while you travel or your shop after closing. Free remote viewing lets you stay connected from your phone.
Know what happened.
Review a delivery or unexpected activity. Find the recording and save the video you need. Explore the built-in tools.
Professional security. Made easy. Straightforward connections and help from our USA team—from planning your camera views to setting up remote viewing.
No Monthly Fees for remote viewing · Free viewing software and software updates · 3 Year Warranty · Unlimited USA Technical Support
SureVision • SV-16IPWAD8-N
16 Camera 4K Ultimate Crime Stopper Security Camera System
More than surveillance. Intelligent detection. Active deterrence.
We call it the Ultimate Crime Stopper because its cameras add extra security features to professional 4K recording: red-and-blue warning lights, intelligent people and vehicle detection, two-way audio and dual-light night vision. See activity clearly, speak through your cameras and use the warning lights to draw attention to unwanted activity around your home or business.
This complete system includes sixteen SureVision SV-WAD8-N 4K (8MP) dome cameras, a 16-channel PoE network video recorder with a pre-installed 4TB surveillance hard drive, and a free 22-inch SureVision monitor. Each camera features a wide-angle 2.8mm lens, powerful infrared illumination, optional warm LED lighting, built-in microphone and speaker, and intelligent detection technology that distinguishes people and vehicles from many common sources of false alarms.
Whether monitoring a residence, retail store, office, warehouse, parking area, or commercial property, the Ultimate Crime Stopper delivers professional surveillance with the added advantage of active security deterrence.
Record locally, monitor your cameras remotely, and review recorded video without mandatory monthly viewing fees.
Your package also includes a free 22-inch SureVision monitor for local live viewing and playback.
Protect your property with sixteen Ultimate Crime Stopper cameras, all connected to one central 16-channel recorder.
Your Cameras and Recorder
What Makes This the Ultimate Crime Stopper?
Brilliant 4K Ultra HD Resolution
Capture exceptionally detailed video with 8MP (3840 × 2160) resolution at up to 30 frames per second. See important details across entrances, driveways, parking lots, and other critical areas.
Wide-Angle 2.8mm Lens
The fixed 2.8mm lens provides a wide 106.5° horizontal viewing angle, making it ideal for covering large areas while minimizing blind spots.
Optional Red-and-Blue Warning Lights
Take security beyond traditional video recording. Built-in red-and-blue warning lights can provide an additional visual deterrent when configured for supported security events. These attention-grabbing lights help make suspicious individuals aware that the property is protected.
Dual-Light Night Vision
Choose powerful infrared night vision for discreet nighttime monitoring or activate warm LED lighting for color nighttime images. Both infrared and warm-light illumination reach up to 98 feet, depending on conditions.
Two-Way Audio
A built-in microphone and speaker allow you to hear activity and communicate through the camera using compatible remote-viewing software. Speak with visitors, provide instructions, or verbally address suspicious activity.
Ultra Motion Detection
Advanced motion detection and intelligent intrusion prevention help identify important events while reducing unnecessary alerts. Human and vehicle classification helps distinguish relevant activity from leaves, birds, and changing lighting conditions.
Intelligent Perimeter Protection
Configure cross-line detection, intrusion detection, enter-area detection, and leave-area detection to help monitor restricted areas, property boundaries, and important access points.
130 dB True WDR
Advanced wide dynamic range technology helps maintain image detail in challenging lighting conditions, including entrances with strong backlighting and scenes containing bright and dark areas.
Built for Indoor and Outdoor Security
Durable metal construction and an IP67 weather-resistant rating make these cameras suitable for indoor and outdoor installations. Operating temperatures range from -22°F to 140°F.
Simple PoE Installation
Power over Ethernet technology allows each camera to receive power and transmit video through a single network cable connected to the compatible PoE recorder.
Local Recording and Remote Viewing
Store video on the included NVR hard drive and remotely access live or recorded footage through compatible mobile and desktop applications. Internet access is required for remote viewing, but not for normal local recording.
Advanced Video Compression
Ultra 265, H.265, and H.264 video compression help optimize recording efficiency and hard drive utilization without sacrificing important image quality.
What's Included
- 16 SureVision SV-WAD8-N 4K Ultimate Crime Stopper dome cameras
- 1 SureVision SV-NVR2P16-N 16-channel PoE network video recorder
- 1 pre-installed 4TB surveillance hard drive

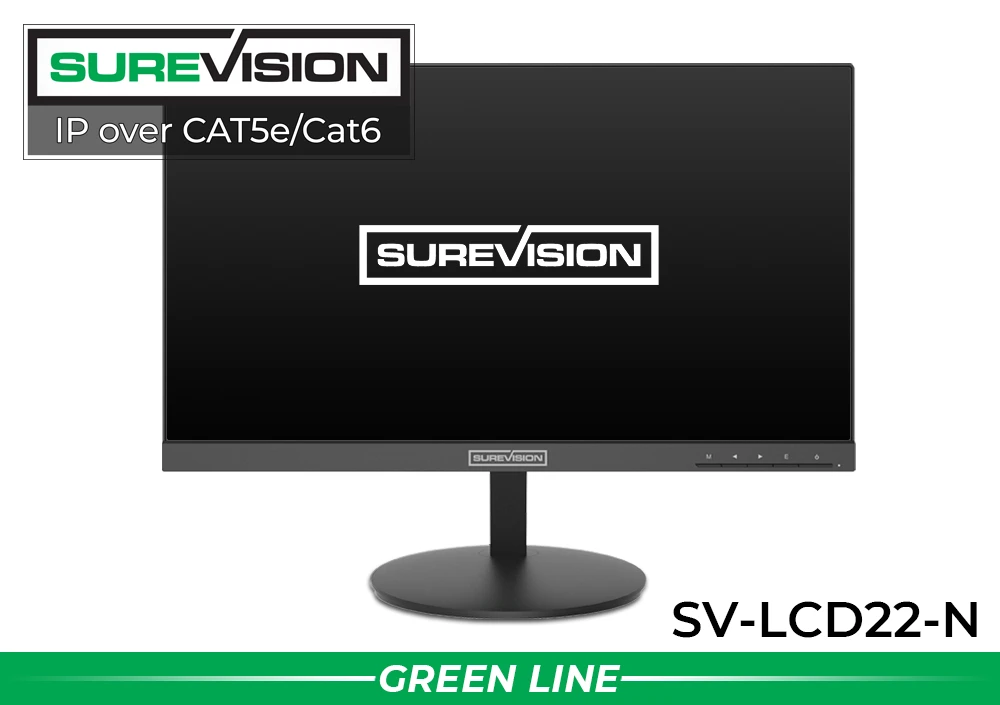

- 1 free 22-inch SureVision monitor (SV-LCD22-N)
- 16 × 100-foot premade Cat5 camera cables
- Free compatible remote-viewing application and desktop software
- Unlimited U.S.-based technical support
Available storage upgrades, cable options, monitor options, and accessories depend on the configuration selected when ordering.
Professional Security Equipment, Backed by People Who Can Help
The SureVision Ultimate Crime Stopper combines professional-grade surveillance technology with the convenience of a complete wired security camera system.
This NDAA-compliant system includes a 3-year limited warranty, a money-back guarantee subject to applicable terms, and unlimited U.S.-based technical support. Our knowledgeable team can assist with camera placement, installation, configuration, and remote viewing.
Call 888-653-2288 for help planning your security system.
Common Questions
What makes this camera different from traditional security cameras?
The Ultimate Crime Stopper combines 4K video surveillance with intelligent intrusion detection, optional red-and-blue warning lights, dual-light night vision, and two-way audio. These features provide additional ways to detect, observe, and respond to suspicious activity.
Can I turn the red-and-blue lights off?
Yes. The warning lights are optional and can be configured according to your security preferences and supported event settings.
Can the camera record in complete darkness?
Yes. Built-in infrared illumination provides nighttime surveillance without requiring visible lighting. Optional warm LED lighting can be used when color nighttime images are preferred.
Can I speak through the cameras?
Yes. Each camera has a built-in microphone and speaker supporting two-way audio through compatible software.
Does the system need internet access to record?
No. The recorder stores footage locally on its hard drive. Internet access is needed for remote viewing outside the property.
Can I add additional cameras later?
The included recorder supports up to sixteen compatible IP cameras. All sixteen channels are occupied by the cameras included with this system.
What is the included monitor used for?
The free 22-inch SureVision monitor can be connected to the recorder for convenient on-site live viewing and playback.
Full Camera Specifications — SV-WAD8-N (2.8mm)
| Camera | |
| Model | SV-WAD8-N (2.8mm) |
| Maximum Resolution | 8MP (3840 × 2160) |
| Sensor | 1/2.8" CMOS |
| Minimum Illumination | Color: 0.001 Lux (F1.0, AGC ON); 0 Lux with light |
| Day/Night | IR-cut filter with automatic switching (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000s |
| Adjustment Angle | Pan: 0° to 360°; Tilt: 0° to 80°; Rotate: 0° to 360° |
| Signal-to-Noise Ratio | >56 dB |
| Wide Dynamic Range | 130 dB True WDR |
| Lens | |
| Focal Length | 2.8mm |
| Lens Type | Fixed |
| Iris | F1.0 |
| Horizontal Field of View | 106.5° |
| Vertical Field of View | 57.9° |
| Diagonal Field of View | 132° |
| DORI Distance | |
| Detect | 86.9m (285.1 ft.) |
| Observe | 34.8m (114.2 ft.) |
| Recognize | 17.4m (57.1 ft.) |
| Identify | 8.7m (28.5 ft.) |
| Illumination and Deterrence | |
| Supplemental Light | Dual light: infrared and warm LED illumination |
| Infrared Distance | 30m (98.4 ft.) |
| Warm Light Distance | 30m (98.4 ft.) |
| Warning Lights | Optional red-and-blue warning lights |
| IR Control | Auto/Manual |
| Light Control | Auto/Manual |
| IR Wavelength | 850nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Profile | Baseline, Main, High |
| Main Stream | 8MP (3840 × 2160), 5MP (3072 × 1728), 4MP (2560 × 1440), 1080P (1920 × 1080), 720P (1280 × 720); up to 30 fps |
| Sub Stream | 720P, D1, 640 × 360, 2CIF, CIF; up to 30 fps |
| Third Stream | D1, 640 × 360, 2CIF, CIF; up to 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Video Streams | Triple streams |
| U-Code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Supported |
| Image Processing | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Auto Scene Match | Supported (WDR only) |
| Image Flip | Normal, Vertical, Horizontal, 180°, 90° Clockwise, 90° Counterclockwise |
| Highlight Compensation | Supported |
| Backlight Compensation | Supported |
| Defog | Digital Defog |
| Intelligent Detection | |
| Smart Intrusion Prevention | Cross-line, intrusion, enter-area, and leave-area detection |
| Target Classification | Human, motor vehicle, non-motor vehicle |
| False Alarm Filtering | Supported |
| People Counting | People flow counting and crowd density detection |
| Color Retrieval | Supported with Smart Intrusion Prevention |
| Basic Detection | Motion detection, Ultra Motion Detection, tampering alarm, audio detection, object removed, object left behind |
| Audio | |
| Built-In Microphone | Yes |
| Built-In Speaker | Yes |
| Two-Way Audio | Supported |
| Audio Compression | G.711U, G.711A, AAC-LC |
| Audio Bit Rate | G.711: 64 Kbps; AAC-LC: 128 Kbps |
| Audio Sampling | G.711: 8 kHz; AAC-LC: 8, 16, 48 kHz |
| Audio Suppression | Supported |
| Storage and Network | |
| Edge Storage | MicroSD up to 512GB |
| Network Storage | ANR, NAS (NFS) |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| ONVIF | Profiles S, G, T, M |
| Integration | API, SDK, ONVIF |
| Users | Up to 32 users; administrator, common user, operator |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Interfaces | |
| Audio Input/Output | 1 input / 1 output |
| Alarm Input/Output | 1 input / 1 output |
| Wi-Fi | Not supported |
| Reset Button | Supported |
| General | |
| Power | DC 12V ±25%, PoE (IEEE 802.3af) |
| Maximum Power Consumption | 10W |
| Dimensions | 129mm diameter × 118mm height (5.1" × 4.7") |
| Weight | 0.69kg (1.53 lb.) |
| Material | Metal |
| Weather Protection | IP67 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | Up to 95% RH, non-condensing |
| Surge Protection | 4kV |
Recorder Specifications — SV-NVR2P16-N
| General Recorder Specifications | |
| Model | SV-NVR2P16-N |
| Recorder Type | Network Video Recorder (NVR) |
| IP Camera Channels | 16 |
| Included Storage | Pre-installed 4TB surveillance hard drive |
| Video Compression | Ultra 265, H.265, H.264 |
| Recording | Local hard drive recording |
| Remote Viewing | Compatible mobile app and desktop software |
| Remote Viewing Fees | No mandatory monthly viewing fees |
| Power over Ethernet | 16 integrated PoE camera ports (IEEE 802.3af/at); up to 30W per port, 240W total |
| System Expansion | Supports up to 16 compatible IP cameras |
| Additional SV-NVR2P16-N Recorder Specifications | |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Network Interface | 1 × RJ45 10/100/1000 Mbps Ethernet |
| HDMI Output | Up to 4K (3840 × 2160) at 30Hz |
| VGA Output | Up to 1920 × 1080 at 60Hz |
| Synchronous Playback | 16 channels |
| Recording Resolutions | 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| SATA Interfaces | 2 |
| HDD Support | Up to 24TB per drive, subject to operating conditions |
| RAID | RAID 1 |
| Alarm Input / Output | 8 inputs / 2 outputs |
| Power Supply | AC 100 to 240V |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Dimensions | 380 × 322 × 53mm |
| Weight (without HDD) | 2.6kg (5.73 lb.) or less |
Camera specifications apply to the SV-WAD8-N 2.8mm version. Product features and specifications are subject to change. Recorder storage capacity, recording duration, and supported features depend on configuration and operating settings.
