Pan Tilt Zoom - Auto Tracking - Active Deterrence - 2 Way Audio - 164ft IR

$649.99 after 20% promo after 20% promo $519.99
(You save $130.00)
Model: SV-PTZ5X-N
Pan Tilt Zoom - Auto Tracking - Active Deterrence - 2 Way Audio - 164ft IR

Select your options:

superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100

SureVision Camera Features Video

SureVision NVR Features Video

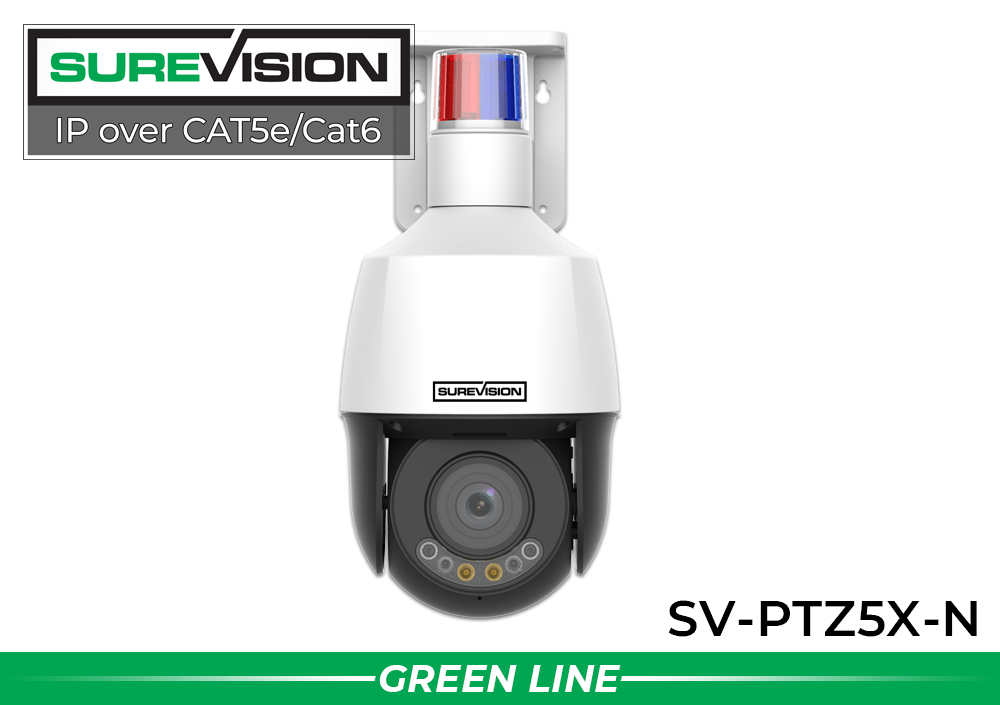

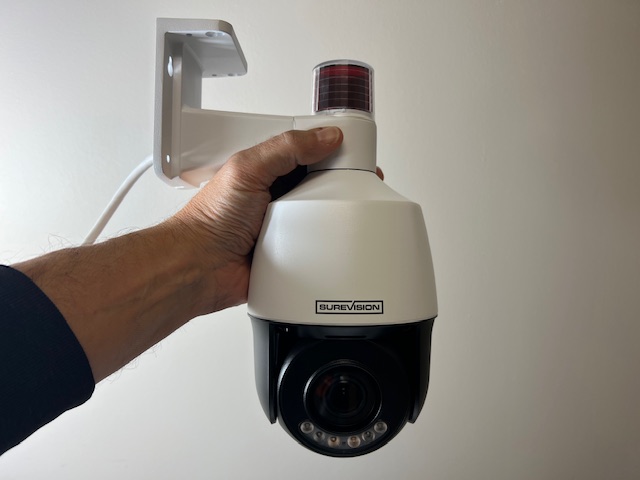

Pan Tilt Zoom Camera

Capture Every Detail, Even in the Darkest Nights

With our SureVision 5MP IP Pan Tilt Zoom security camera, you can ensure that your space is protected day and night. Equipped with exceptional 164-foot night vision capabilities, this camera captures crystal-clear video in the darkest of settings. Don't let the darkness compromise your security anymore – our infrared technology ensures that every nook and cranny is monitored, giving you the peace of mind you deserve.

Seamless Interaction and Enhanced Security

Introducing the power of two-way audio integration to bolster your security measures. Our SureVision PTZ camera not only provides top-notch video surveillance but also features integrated two-way audio. The built-in microphone and speaker allow you to communicate with visitors or potential intruders effortlessly. Whether it's issuing warnings or greeting guests, you can easily engage with your surroundings using your smartphone, tablet, or computer. Experience true surveillance that goes beyond just visual monitoring.

360° Panning and Impressive Zooming Abilities

Get a full view of your surroundings with our IP Pan Tilt Zoom security camera's 360-degree panning capabilities. No blind spots, no missed details – you can monitor every angle with ease. What's more, the camera also offers a remarkable 4x optical zoom, allowing you to focus on even the tiniest of details from afar. Whether you need to survey a large area or zoom in for a closer look, this camera is the embodiment of comprehensive surveillance.





Looking for a complete IP camera system?  Click Here to check out our "Green Line" Series IP Security Camera Systems.

Looking for a network video recorder for this camera?  Click Here to check out our compatible "Green Line" Network Video Recorders.

Shop Green Line Series Cameras

Looking for a complete IP camera system?

Check out our Green Line Series
IP Security Camera Systems.

SHOP NOW

Shop Green Line Network Video Recorders

Looking for a network video recorder for this camera?

Check out our compatible
Green Line Network
Video Recorders.

SHOP NOW





TECHNICAL SPECIFICATIONS
Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Min. Illumination Color: 0.002 Lux (F1.6, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
Lens
Lens type 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 5
Iris Fixed; F1.2
Angle of View (H) 106.9°~30.6°
Angle of View (V) 56°~17.7°
Angle of View (O) 131.5°-36.1°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.7 71 (232.5ft) 28 (93ft) 14 (47ft) 7 (23ft)
13.5 248 (812ft) 99 (325ft) 50 (162ft) 25 (81ft)
Illuminator
IR Range Up to 50m (164ft)
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate

Main Stream: 5MP (2880*1620), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps
Third Stream: D1 (720*576), Max 30fps

Video Bit Rate 128 Kbps~16 Mbps
ROI Support
U-Code Support
Video Stream Triple streams
OSD Up to 8 OSDs
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip

Normal, Flip Vertical, Flip Horizontal, 180°

HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection

Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change, Defocus Detection

Auto Tracking Support
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication
Exception Detection

Object Removed, Object Left Behind, Scene Change, Defocus Detection

People Counting

Support People Flow Counting and Crowd Density Monitoring

Auto Tracking

Support, target filtering: human only

Smart Intrusion Prevention

Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

Audio
Audio Compression G.711U,G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 16 kHz
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR,NAS(NFS)
Network
Protocols

TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK

User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client

GuardStation
SVTools

Web Browser

Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above

Pan & Tilt
Pan Range 0° ~ 345°
Pan Speed 1°/s ~ 50°/s
Preset speed: 50°/s
Tilt Range –10° ~ 100°
Tilt Speed 1°/s ~ 40°/s
Preset speed: 40°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Patrol Stay Time   120s~1800s
Home Position Support
Interface
Audio I/O

1 Input: impedance 1kΩ; amplitude 2.5V [p-p], 1 Output: impedance 600Ω; amplitude 2.5V [p-p]

Alarm I/O 1/1
Serial Port N/A
Built-in Mic Supported
Built-in Speaker Supported
Network 1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMC

CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021)

Safety

CE LVD (EN 62368-1: 2020+A11: 2020)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment

CE-ROHS (2011/65/EU;(EU)2015/863)

Protection

IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power


DC12V(±25%), PoE(IEEE 802.3at)

Power consumption: MAX 18W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H)

185 x 133 x 286mm (7.3" x 5.2" x 11.3") (L x W x H)

Weight

1.32 kg

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Storage Environment

-40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Surge Protection 2KV
Reset Button Support
Web Client Language 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
SECURITY CAMERA FEATURES
  • Security Camera - 5 MP PTZ (2880 x 1620)
  • 2.7-13.5mm Motorized Lens - 5X Optical Zoom
  • Up to 164ft Infrared Night Vision with White LED
  • Active Deterrence (Siren and Lights)
  • Easy Auto Tracking
  • Built-in Microphone and Speaker
  • Starlight - low light performance
  • H.265 Video Compression
  • Weatherproof IP66
  • Wide Dynamic Range (120dB)
  • Measurement: 11.3" H x 5.2" D
Approximate Distances:
Identify (Up to 81ft)
Recognize (Up to 163ft)
Detect (Up to 812ft)
