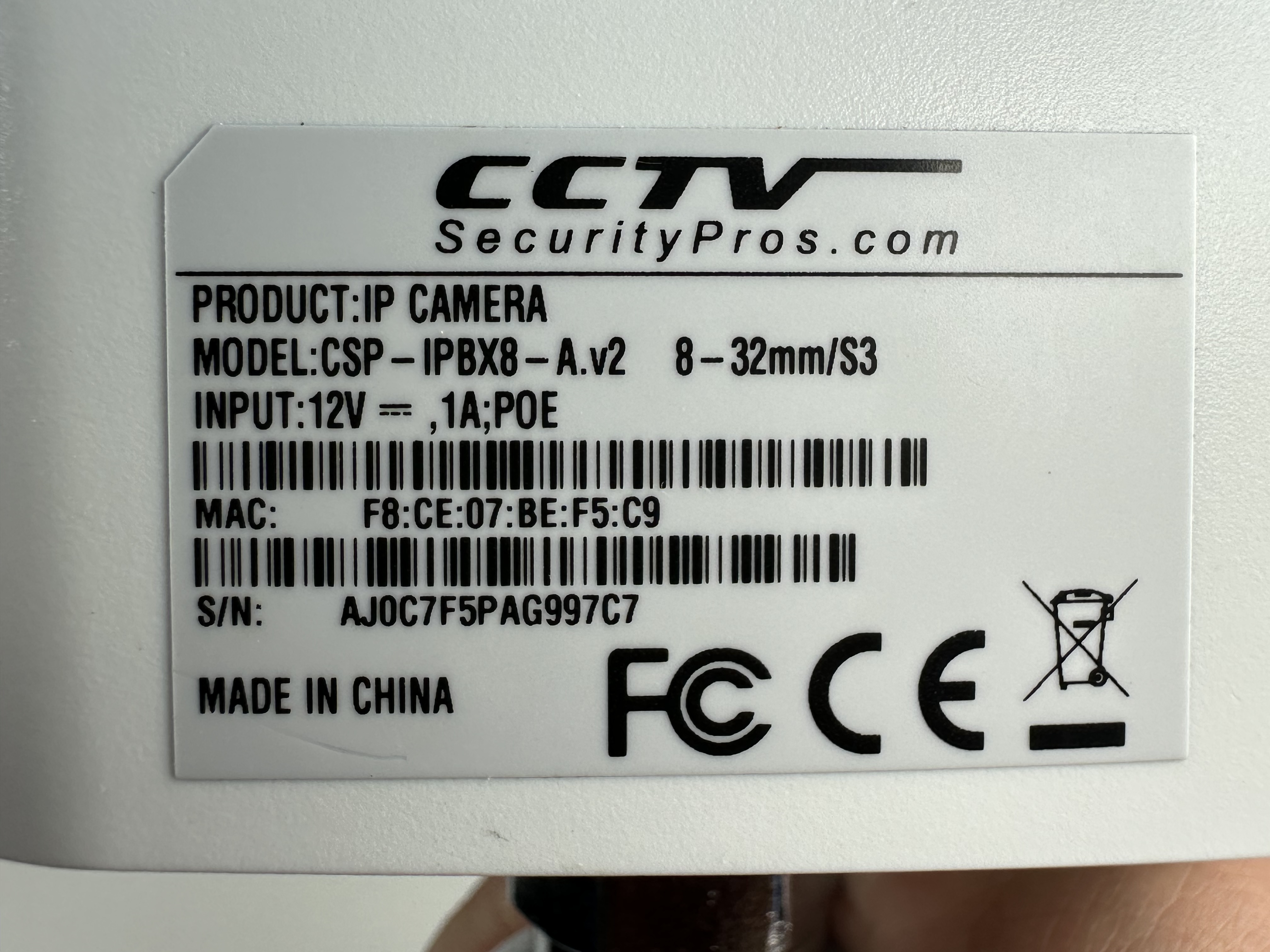

Name: (CSP-IPBX8-A) Blue Line - 4K Long Range Bullet with 8-32mm Lens and Night Vision / BS1028
SKU: BS1028
Price: 349.99 USD
Availability: InStock

Technical Specification
Camera
Image Sensor	1/1.8" 8 Megapixel CMOS
Effective Pixels	3840 (H) × 2160 (V)
RAM/ROM	1 GB/128 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3 s–1/100000 s
Minimum Illumination	0.004 lux@F1.4 (Color, 30 IRE) 0.0004 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)
IR Distance	Distance up to 120 m (394 ft)
IR On/Off Control	Auto/Manual
IR LEDs	4
Lens
Lens Type	Motorized vari-focal
Mount Type	Module
Focal Length	8 mm–32 mm
Max. Aperture	F1.4 (Constant)
Angle of View	Horizontal: 42°–14.9° Vertical: 23.3°–8.6° Diagonal: 48.5°–16.9°
Iris Control	Auto
Close Focus Distance	W: 3.0 m (9.84 ft) T: 5.5 m (18.04 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	7001ft	280ft	43ft	22ft
	T	1879ft	752ft	376ft	188ft
Pan/Tilt/Rotation
Pan/Tilt/Rotation	Pan: 0°-360° ;Tilt: 0°-90° ;Rotation: 0°-360°
Artificial Intelligence
Face Detection	Face detection; track; snapshot optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: realtime snapshot, optimized snapshot, quality priority snapshot; face angle filter; optimization time setting
Face Attributes	Support 6 kinds of face attributes extraction: Age, Gender,Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard
Perimeter Protection	Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
People Counting	Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
Event Trigger	Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
Video
Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H.265+/H.264+
Streaming Capability	3 Streams
Resolution	3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3 MB (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate	Main stream: 3840× 2160 (1 fps–25/30 fps) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 3 Kbps–20480 Kbps H.265: 13 Kbps–20480 Kbps
Day/Night	Auto (ICR)/Color/B/W
BLC Mode	BLC/HLC/WDR (120 dB)
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
WDR	120 dB
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	Off/On (4 Zone, Rectangle)
Region of Interest	Off/On (4 Zone)
Electronic Image Stabilization (EIS)	Yes
Smart IR	Yes
Defog	Yes
Flip	0°/90°/180°/270° (Support 90°/270° with 4 M resolution and lower)
Mirror	Off/On
Privacy Masking	Off/On (8 Areas)
Audio
Compression	PCM; G.711a; G.711Mu; G.726; G.723
Network
Ethernet	RJ-45 (10/100 Base-T)
Protocols	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Streaming Method	Unicast/Multicast
Max. User Access	20 (Total bandwidth: 80 M)
Edge Storage	FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Web Viewer	IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)
Management Software	Smart PSS, DSS, DMSS
Smart Phone	iOS, Android
Certifications
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1- 07
Interface
Audio Interface	1/1 channel In/Out RCA
RS485	N/A
Alarm	2 channel In: 5mA 3V- 5V DC 1 channel Out: 300mA 12V DC 2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC
Electrical
Power Supply	12 VDC (±30%)/PoE (802.3af)/ePoE
Power Consumption	Basic power consumption: 6.4 W (12 VDC); 6.9W (PoE) Max. power consumption (H.265 + max. stream + intelligent function + IR LED + focus): 7.7 W (12 VDC); 7.9 W (PoE)
Environmental
Operating Conditions	-30° C to +60° C (-22° F to +140° F)/Less than 95% RH
Storage Conditions	-30° C to +60° C (-22° F to +140° F)
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal, plastic
Dimensions	273.2 mm × 95.0 mm × 95.0 mm (10.76" × 3.74" × 3.74")
Net Weight	1.11 kg (2.44 lb)
Gross Weight	1.51 kg (3.33 lb)

SECURITY CAMERA FEATURES

8 Megapixel IP Security Camera (3840×2160)
8-32mm 5x Motorized Adjustable Lens
Up to 390ft Infrared Night Vision
H.265 Video Compression
STARVIS - low light performance
Weatherproof, Vandalproof (IP67, IK10)
Wide Dynamic Range (120dB)
Power Over Ethernet - PoE
Audio Input/Output
Measurement: 10.76" L x 3.74" W x 3.74" H

Approximate Distances:
Identify (Up to 70-188ft)
Recognize (Up to 140-376ft)
Detect (Up to 700-1879ft)
