What Is an HD Over Coax CCTV Camera System?
An HD over coax system is a modern version of traditional closed-circuit television. Each camera sends high-definition video over coaxial cable to a compatible CCTV DVR recorder. The DVR processes the camera signals, stores footage on an internal hard drive, provides live and recorded playback, and connects to your network when remote phone or computer viewing is needed.
This architecture is different from a PoE IP system. IP cameras communicate with an NVR over Cat5e or Cat6 Ethernet cable, while HD CCTV cameras normally use coax cable with BNC-style video connectors and separate camera power. Both can provide professional wired recording. The advantage of HD over coax is the ability to modernize many older CCTV installations without abandoning usable wiring already inside walls, ceilings or conduit.
Replacing an older analog system? Do not assume every old camera, DVR and cable can be mixed. Camera signal format, maximum resolution, cable condition, connector quality, power requirements and DVR compatibility all matter. Call 888-653-2288 before ordering and we will help identify the safest upgrade path.
Why CCTV Systems Are Still a Strong Professional Choice
- Proven wired reliability: Camera video does not depend on Wi-Fi coverage, batteries or cloud upload speed.
- Local video ownership: Footage records to your DVR instead of requiring a paid cloud-storage account.
- Remote viewing included: Connect the DVR to the internet for authorized live view, playback and notifications from compatible mobile and desktop software.
- Flexible resolution: Choose cost-effective 2MP systems or sharper 8MP 4K CCTV camera systems.
- Camera-style flexibility: Mix compatible bullet, turret, vandal dome and motorized-lens cameras to match each view.
- Practical upgrade path: Existing coax runs may save time and labor when upgrading from older analog equipment.
Starter and Small-Property Systems

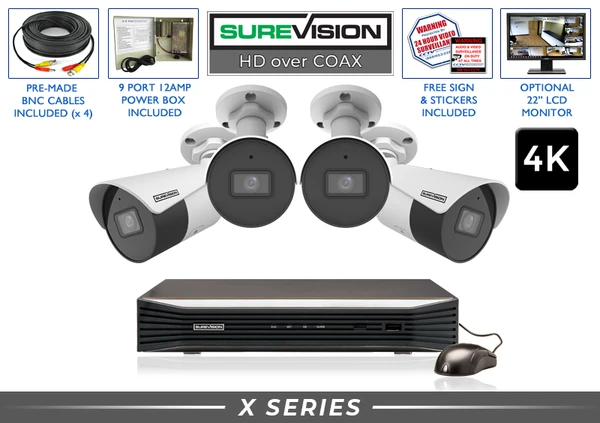

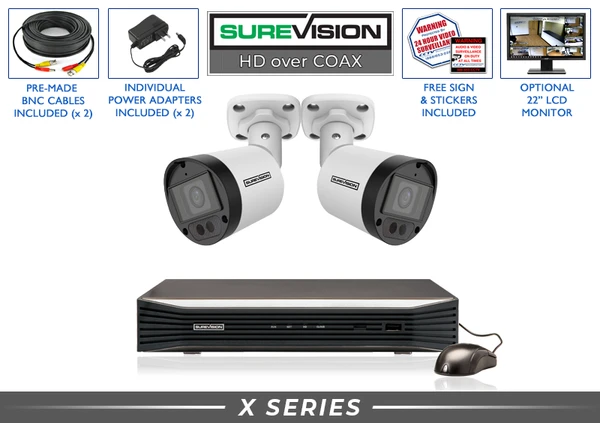

Focused 2-Camera Coverage or a Sharper 4K Upgrade
Start with two essential views or cover four key areas in true 4K. Both systems include local DVR storage and free remote viewing with no required monthly fees.
Choosing Between 2MP HD and 8MP 4K CCTV Systems
Choose 2MP for Dependable General Coverage
A 2MP 1080p CCTV system can be an excellent value for general observation at doors, hallways, small offices, garages and areas where the subject is reasonably close to the camera. It reduces storage and bandwidth demands while still providing a substantial improvement over old standard-definition analog video.
Compare 2-camera CCTV systems or browse the complete category above.
Choose 4K for More Playback Detail
An 8MP 4K CCTV camera records four times the pixel count of 1080p. That additional detail can improve playback review at entrances, registers, loading zones, driveways and parking approaches. It also provides more digital-zoom flexibility, although lens choice, lighting and camera placement remain essential.
Bullet, Turret or Vandal Dome CCTV Cameras?
The best complete system is not always the package with identical cameras. CCTV Security Pros can help customize compatible camera styles around the actual property. Use the housing that matches the job each view must perform.

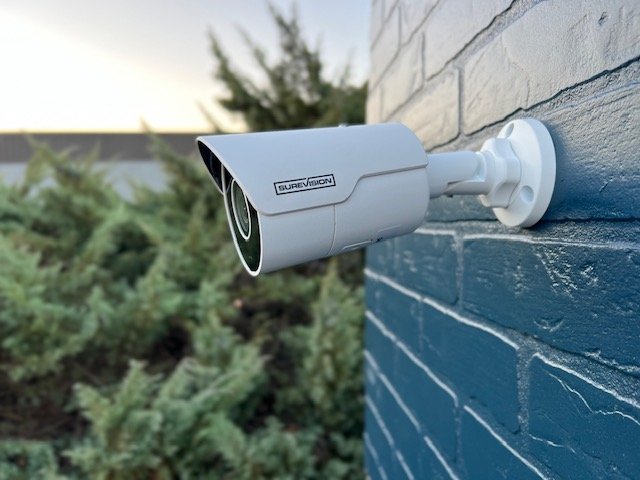

- Bullet CCTV cameras are visible, simple to aim and well suited to driveways, parking areas, loading docks, gates and building perimeters. Their obvious shape can provide an additional deterrent effect.
- Turret CCTV cameras provide a clean, compact appearance for entrances, soffits, offices, retail locations and residential exteriors. Their ball-and-socket design offers flexible aiming without a traditional dome bubble.
- Vandal dome CCTV cameras use a protected dome-style housing that is useful in lobbies, hallways, schools, storefronts and areas where a lower-mounted camera may be within reach.
- Motorized-lens CCTV cameras allow the field of view to be adjusted during setup. They are useful when a fixed wide-angle lens would show too much scene and not enough detail at the target.
Browse individual HD over coax security cameras if you want to mix camera housings, replace older cameras or expand a compatible DVR system.
Business and Whole-Property Coverage

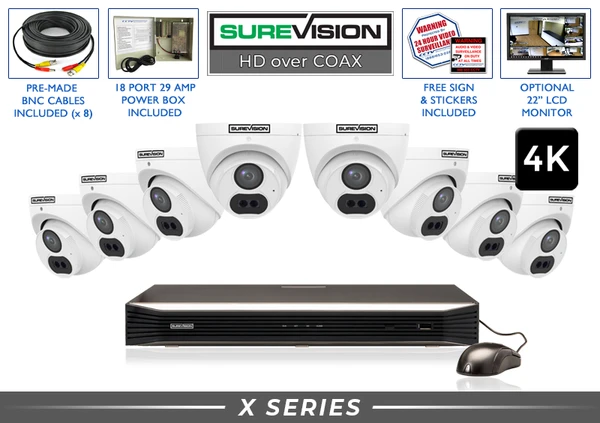

Expandable 8- and 16-Camera 4K CCTV Systems
These system sizes fit larger homes, retail stores, restaurants, offices, churches, warehouses and commercial buildings that need coordinated indoor and outdoor coverage.
How DVR Recording Works Without Monthly Fees
The DVR is the center of a CCTV system. It accepts camera signals through BNC inputs, encodes and stores video on a surveillance hard drive, sends video to a local monitor and provides search and export tools for recorded incidents. When connected to a router and configured correctly, it also provides remote viewing from compatible phones, tablets and computers.
Local DVR recording means you do not need to pay a monthly cloud-storage fee to keep ordinary surveillance footage or unlock basic playback. Your recording duration is determined by the hard-drive capacity and system settings—not a provider’s subscription tier. When the drive becomes full, the recorder can automatically overwrite the oldest footage so recording continues.
How Much Storage Does a CCTV System Need?
There is no single accurate “days of recording” number for every DVR. Retention depends on camera count, resolution, frame rate, bit rate, video compression, recording schedule and scene activity. Eight continuously recording 4K cameras consume substantially more storage than two 1080p cameras recording only scheduled motion events. Start by deciding how many days or weeks of footage the property must retain, then size the DVR storage around that goal.
For longer retention, compare surveillance hard drives and video storage, or call for a storage recommendation based on your exact camera settings.
Shop HD Over Coax Systems by Camera Count
Count the views your property needs—not simply the number of rooms. Critical areas commonly include entrances, driveways, gates, parking approaches, registers, loading docks, stockrooms, hallways and building perimeters. Leave expansion room when additional cameras may be needed later.
Large Commercial and Multi-Area Systems

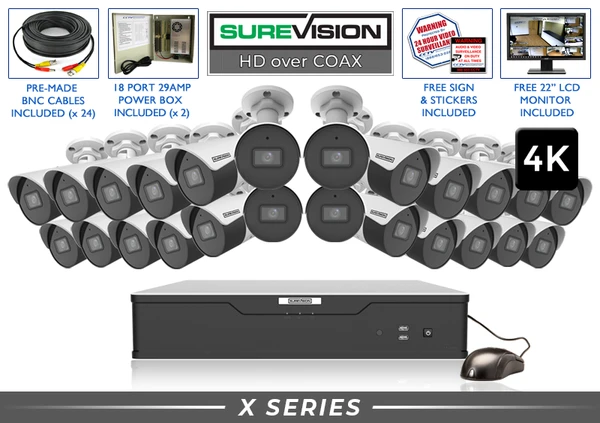

24- and 32-Camera 4K CCTV Systems
Use large systems for warehouses, schools, churches, apartment communities, distribution facilities and multi-building properties that require many coordinated views and centralized DVR recording.
Upgrading an Existing Analog CCTV System
One of the main reasons to choose HD over coax is the possibility of retaining existing camera-wire paths. A restaurant, school, store, office or warehouse may already have coax cable running from each camera position to a central recorder. If those runs are in good condition and suitable for the intended resolution, a new DVR and HD cameras may deliver a major improvement without pulling Ethernet to every location.
Before replacing equipment, inspect and confirm:
- Cable type and condition: Damaged, poorly terminated or low-quality cable can cause image problems, especially at higher resolutions or longer distances.
- Camera signal format: The DVR and cameras must support compatible TVI, AHD, CVI or CVBS formats and resolutions.
- Power: HD over coax cameras generally use separate power. Confirm voltage, amperage, polarity, power-distribution capacity and connector condition.
- DVR resolution: An old analog DVR cannot automatically record a new 4K camera at 4K. Recorder input capabilities must match the planned cameras.
- Connector quality: Re-terminate loose, corroded or poorly installed BNC connectors before blaming the camera or recorder.
- Storage goal: Higher-resolution cameras consume more hard-drive space. Size storage for the required retention period.
Need replacement cable, BNC connectors or related installation components? Browse security camera cables and connections.
CCTV DVR Systems vs. PoE IP Camera Systems
Both technologies can deliver professional wired surveillance and local recording without monthly fees. The right choice depends primarily on the existing wiring and the features required—not on the assumption that one format is always better.
| Comparison | HD Over Coax CCTV System | PoE IP Security Camera System |
|---|---|---|
| Best fit | Existing coax/BNC installations and DVR upgrades | New network-based installations and advanced IP builds |
| Recorder | DVR | NVR |
| Video cable | Coaxial cable with BNC connections | Cat5e or Cat6 Ethernet |
| Camera power | Normally separate 12V DC power | Power and video can share one cable through PoE |
| Available resolution | 1080p and 4K options | 2K, 4K and other supported IP resolutions |
| Remote viewing | Included when the DVR is networked and configured | Included when the NVR is networked and configured |
| Monthly fees | No required monthly fees | No required monthly fees |
If you are wiring a new property and want one-cable power plus video, compare SureVision PoE IP security camera systems. If the property already has usable coax, an HD CCTV system can be the more practical upgrade.
Where HD CCTV Security Camera Systems Work Best
Retail Stores
Cover entrances, registers, aisles, stockrooms, delivery doors and parking approaches with dependable local DVR recording.
Warehouses
Monitor inventory, loading docks, overhead doors, work areas, equipment and building perimeters from one recorder.
Homes
Protect doors, driveways, garages, side gates, backyards and detached structures without a monthly cloud-storage plan.
Offices
Add visibility to reception, entrances, hallways, supply rooms, exterior doors and employee-only areas.
Schools and Churches
Coordinate camera views across entrances, gathering spaces, offices, walkways, parking lots and playground areas.
Legacy CCTV Upgrades
Replace aging standard-definition cameras and recorders while retaining compatible coax wiring paths.
Why Buy a CCTV System from CCTV Security Pros?
CCTV Security Pros has helped more than 75,000 customers protect homes, businesses, government properties, schools, churches, warehouses and commercial facilities since 2008. We sell professional systems that customers own and control, with real guidance before and after the purchase.
- Customized systems: Mix compatible camera styles, cable lengths, storage and accessories around the property instead of settling for a generic box.
- No required monthly fees: Own the cameras, DVR and local recording storage.
- Lifetime U.S.-based support: Get help setting up, operating and maintaining equipment purchased from CCTV Security Pros.
- 3-year warranty: Professional equipment is backed by longer warranty protection.
- 30-day money-back guarantee: Purchase with added confidence before installation.
- Expert compatibility help: Confirm older coax wiring, DVR inputs, camera formats, power and expansion requirements before buying.
CCTV Security Camera System FAQs
What is an HD over coax CCTV security camera system?
It is a wired surveillance system that sends HD or 4K camera video over coaxial cable to a compatible DVR. The DVR provides local recording, playback, video export and remote access when connected to a network.
Can I reuse the coax cable from my old analog cameras?
Often, but not automatically. Cable type, length, condition, connector quality, camera resolution, signal format and power all affect compatibility. Have the planned cameras and DVR checked against the existing installation before ordering.
Do CCTV systems require monthly fees?
No. CCTV Security Pros systems record locally to a DVR and do not require a monthly cloud-storage subscription for normal recording, playback or compatible remote viewing.
Does a DVR need the internet to record?
No. A properly connected DVR and its cameras can record locally without internet service. Internet access is generally required for off-site phone or computer viewing, remote notifications and certain network features.
What is the difference between a DVR and an NVR?
A DVR normally records compatible CCTV cameras connected by coax and BNC inputs. An NVR records IP cameras connected over a network. DVR systems are often chosen for coax upgrades; NVR systems are commonly selected for new PoE installations.
Should I buy a 2MP or 4K CCTV system?
Choose 2MP for cost-effective general observation where subjects are reasonably close. Choose 4K when additional playback detail and digital-zoom flexibility are important. Lighting, lens, distance and mounting position still determine whether a face or vehicle detail is usable.
Can CCTV cameras record audio?
Many of the systems featured on this page include cameras with built-in microphones and audio-over-coax support. Audio capability varies by camera and DVR, and recording laws vary by location. Confirm equipment specifications and local consent requirements.
How many CCTV cameras do I need?
Count every entrance, vehicle approach, high-value area, blind spot and critical interior view. Smaller properties often use 2 to 8 cameras, while businesses and large facilities may require 16, 24 or 32. Choosing extra DVR channels provides room to expand.
How long does a CCTV DVR store video?
Retention depends on camera count, resolution, frame rate, compression, recording schedule, scene activity and installed storage. Define the desired retention period first, then size the hard drive using the planned camera settings.
Can I mix bullet, turret and dome cameras on one DVR?
Yes, when the camera models, resolutions and signal formats are compatible with the DVR. Mixing camera styles is often the best design because each area has different coverage, mounting and deterrence requirements.
