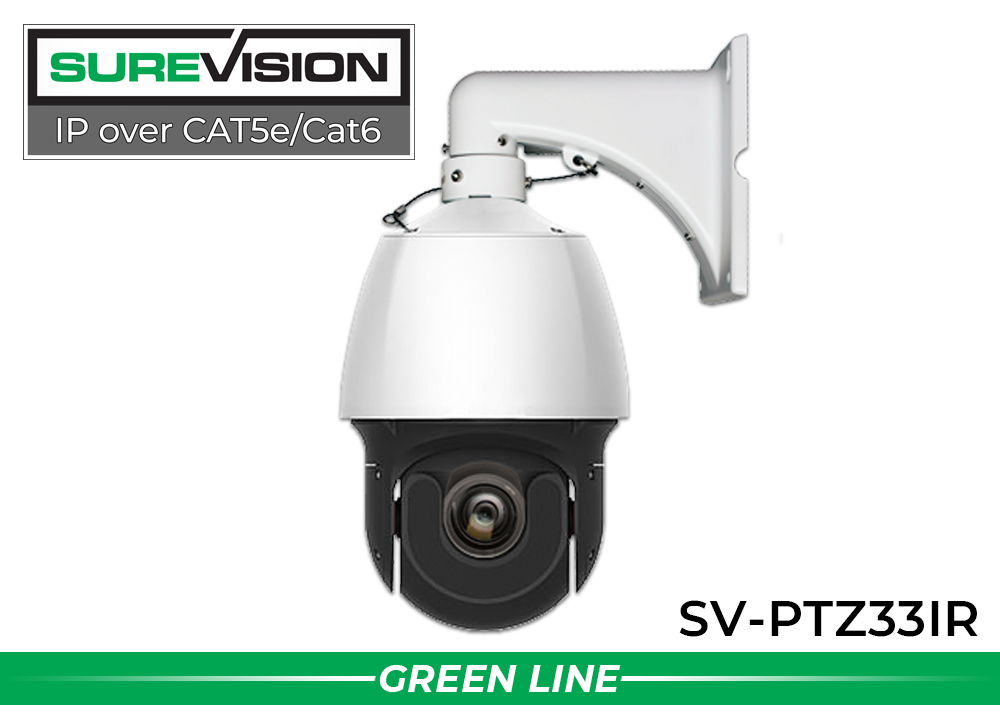

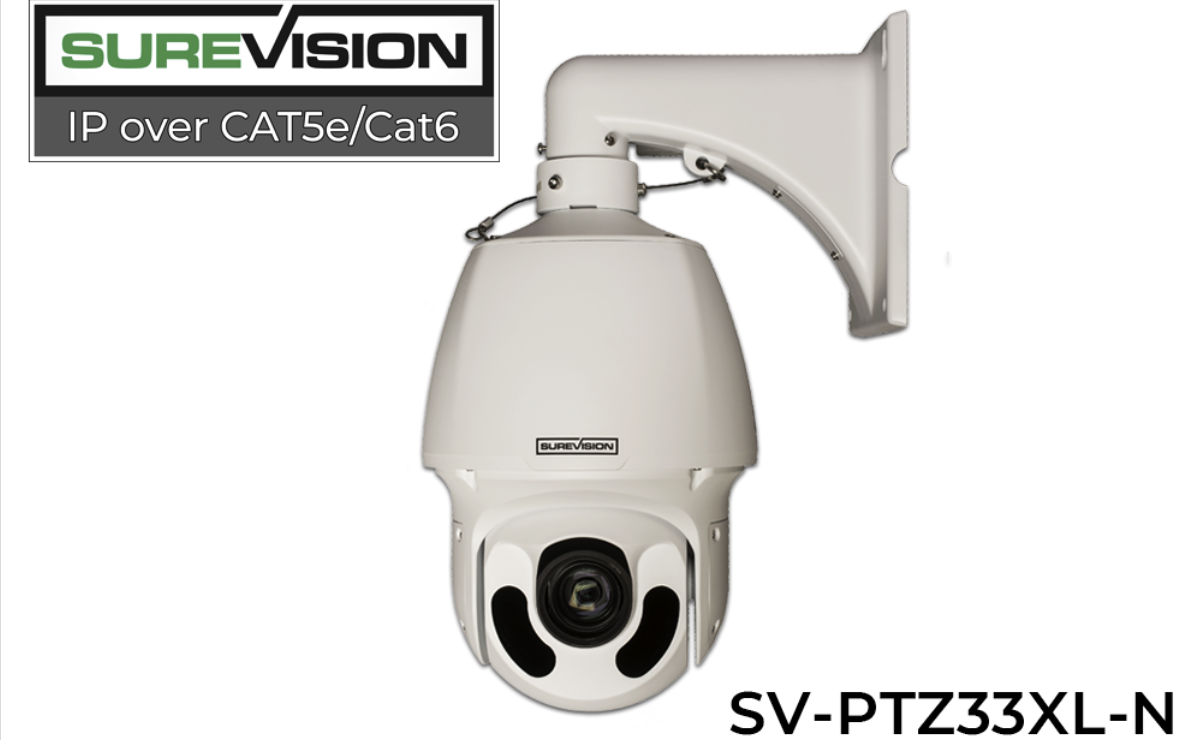

A PTZ camera—short for pan-tilt-zoom camera—uses motorized movement and an adjustable optical lens to provide flexible surveillance over large areas. Instead of permanently watching one fixed field of view, an operator or supported automation can reposition a PTZ security camera toward activity and zoom in for a closer look.

This makes professional PTZ cameras particularly useful for parking lots, warehouses, loading docks, campuses, industrial properties, equipment yards, gates, large commercial properties and other locations where surveillance requirements extend well beyond a single fixed viewing angle.

The newest PTZ security cameras can combine remote pan, tilt and optical zoom with intelligent video analytics and auto tracking. When properly configured, select models can identify supported human or vehicle activity and reposition the camera to keep the target in view.

How Do PTZ Cameras Work?

The three primary functions of a PTZ camera are built directly into its name: pan, tilt and zoom.

What Is an Auto Tracking PTZ Camera?

An auto tracking PTZ camera combines motorized PTZ movement with supported video analytics. Instead of requiring someone to manually steer the camera whenever activity occurs, compatible models can automatically reposition themselves to follow qualifying movement through the surveillance area.

Depending on the specific PTZ camera and configuration, supported analytics may distinguish people or vehicles from other types of motion. This can make auto tracking especially useful for monitoring parking lots, equipment yards, property perimeters and other open areas.

After tracking ends, a compatible PTZ security camera can return to a saved home position or resume a programmed patrol. This provides automated movement while still allowing the camera to maintain an organized surveillance routine.

Benefits of PTZ Security Cameras

5X vs. 10X vs. 25X PTZ Cameras

The best PTZ camera is not necessarily the model with the largest zoom number. The correct optical zoom depends on the size of the property, mounting position, distance to important subjects and the detail you need to capture.

Optical Zoom vs. Digital Zoom on PTZ Cameras

Optical zoom is one of the most important advantages of a professional PTZ security camera. The lens physically changes focal length before the image is captured, allowing the camera to obtain a narrower and closer view of a distant subject.

Digital zoom enlarges pixels from an image that has already been captured. It can be useful during playback, but it cannot replace the additional optical reach of a motorized zoom lens. For long-distance surveillance, compare the PTZ camera's actual optical zoom and lens range.

Best Places to Use PTZ Security Cameras

PTZ cameras are most valuable when the surveillance area is large enough to benefit from motorized movement or when operators need the ability to inspect distant activity.

PTZ Cameras for Business & Commercial Surveillance

Commercial properties are among the strongest applications for PTZ security cameras. A warehouse can use fixed cameras at entrances, docks and aisles while installing a PTZ camera higher on the building to inspect the parking lot, equipment yard or perimeter.

Retail centers, office properties, campuses and industrial sites can use the same approach: fixed cameras maintain continuous coverage of critical areas while PTZ cameras provide wide-area control and optical zoom when activity requires closer inspection.

Outdoor PTZ Cameras with Night Vision

Many professional PTZ cameras are used outdoors where nighttime performance is critical. Infrared illumination can help a compatible PTZ security camera monitor areas after dark, while optical zoom allows the camera to inspect distant activity.

Actual night-vision performance depends on more than the published infrared distance. Mounting position, nearby walls, reflective surfaces, ambient lighting, weather and the distance to the subject can all affect real-world nighttime video.

PoE PTZ Cameras & NVR Recording

Professional IP PTZ cameras can be integrated with compatible SureVision NVR recorders for centralized local recording, playback, video export and system management.

PoE or PoE+ can carry supported network data and power through Ethernet cabling, simplifying wiring compared with providing separate network and power connections. Because PTZ cameras can require more power than fixed cameras, always confirm the power requirements of the specific model and the capacity of the NVR, PoE switch or injector.

Local NVR recording also means a professional surveillance system can retain video on site without requiring a monthly cloud-storage subscription for standard recording.

PTZ Camera Installation & Placement Tips

A PTZ camera should be positioned where its movement and optical zoom provide a useful advantage. Mounting too low can limit the overview, while mounting extremely high can produce a steep viewing angle that reduces useful detail.

• Use a structurally secure mounting surface.
• Keep trees, signs, roof edges and other obstructions out of the main viewing path.
• Plan the viewing distance before choosing 5X, 10X or 25X optical zoom.
• Check PoE or PoE+ power requirements before installation.
• Consider nighttime lighting and possible infrared reflections.
• Configure useful home positions, presets and patrols.
• Maintain fixed-camera coverage of critical evidence points.

How to Choose the Best PTZ Camera

1. Determine the viewing distance. Measure how far the PTZ camera needs to inspect.
2. Select the optical zoom. Choose 5X, 10X or 25X based on actual surveillance distance rather than simply selecting the highest number.
3. Evaluate resolution. Resolution, lens selection and viewing distance all affect usable recorded detail.
4. Check auto-tracking requirements. Confirm that the specific PTZ security camera supports the tracking features needed for the application.
5. Evaluate night vision. Compare infrared range with the actual nighttime scene.
6. Confirm recorder compatibility. Match resolution, PTZ controls, analytics and power requirements with the NVR.
7. Plan the complete camera layout. Use PTZ cameras alongside compatible fixed cameras where continuous coverage is important.

Adding PTZ Cameras to a Security Camera System

PTZ cameras can become an important part of a larger professional security camera system . Rather than using PTZ cameras everywhere, a well-planned system can combine several camera styles.

Fixed bullet and dome cameras can continuously monitor entrances, registers, gates, loading docks and other critical locations. Wide-angle cameras can provide overview coverage, while PTZ cameras monitor large outdoor spaces and provide optical zoom when activity needs closer examination.

Compatible SureVision IP security cameras can be mixed within a properly designed system so each part of the property receives the camera style best suited to the surveillance objective.
