4-Camera 5MP Motorized Bullet CCTV System with DVR

SureVision • SV-4HDXBV5-N

4 Camera 5MP HD-over-Coax CCTV Security Camera System

The choice is clear. Professional wired security, useful detail and no monthly viewing fees.

Protect your business or home with 4 SureVision SV-XBV5-N 5MP motorized bullet cameras and an SV-DVR8-N 8-channel digital video recorder. This complete HD-over-Coax package gives you a dependable way to watch entrances, work areas and outdoor spaces, then review what happened from your own recorder. It is also a practical upgrade path for a property with compatible existing coax wiring.

The standard package includes a preinstalled 4TB surveillance hard drive, 4 premade 100-foot BNC camera cables and one CSP-9DC12 nine-port power supply. The recorder has room for 4 additional compatible BNC cameras, so you can expand coverage without replacing the included DVR.

CCTV Security Pros has served government, business and residential customers since 2008. Your SureVision equipment is backed by a three-year product warranty, a 30-day money-back guarantee and unlimited U.S.-based technical support, subject to the applicable terms. From choosing camera positions to remote viewing, our team can help you get more from your system.

Your cameras and recorder

4 5MP bullet cameras • SV-XBV5-N

8-channel DVR • SV-DVR8-N

Frame the view around your property

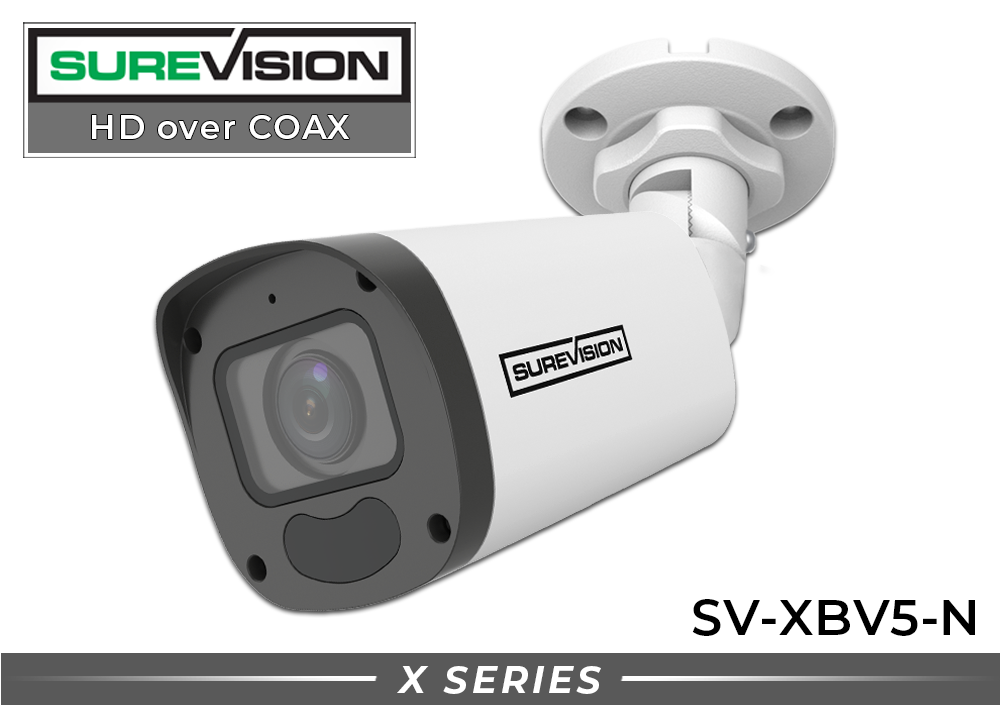

Each SureVision SV-XBV5-N camera captures 5-megapixel video through a motorized 2.8–12mm varifocal lens. Adjust from a broad 102.4-degree horizontal view to a tighter 31.4-degree view using compatible recorder controls. This is useful for framing a doorway, an approach or a specific area without relying only on digital enlargement. The included DVR records 5MP coax video at up to 12 frames per second.

Smart infrared illumination reaches up to 50 meters, approximately 164 feet, under specified conditions. Infrared produces black-and-white viewing in darkness; color viewing needs sufficient available light. True 120 dB wide dynamic range helps balance bright and shaded areas, and the IP67-rated metal housing supports indoor or outdoor installation.

Motorized control and audio support

Compatible DVR controls let you adjust the motorized lens and focus to suit the scene. Audio support depends on the camera and recorder signal mode; our team can confirm the supported configuration. The cameras use BNC video connections and separate power rather than PoE network connections.

A recorder that keeps your footage on site

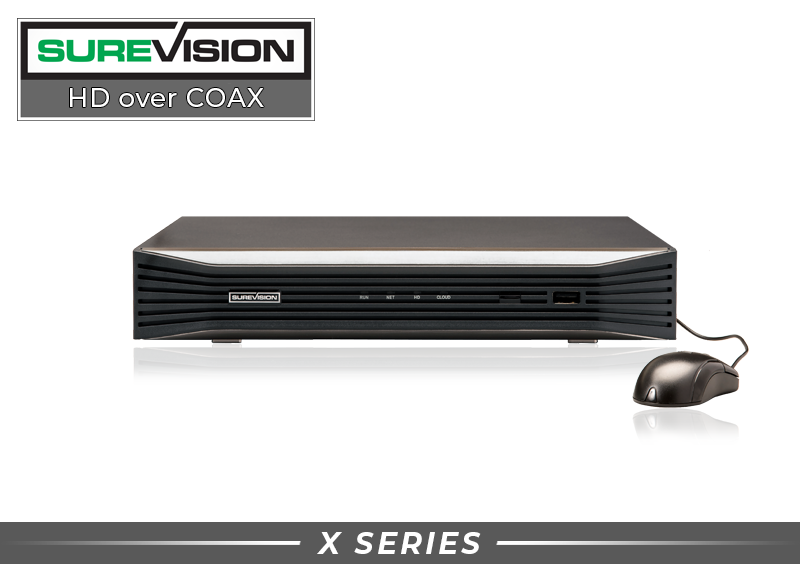

The 8-channel SV-DVR8-N brings the included cameras together for local recording, multi-camera live viewing and playback. Connect a monitor through HDMI or VGA to check several areas at once, then open the camera you want to review. A monitor is optional for this package.

With the cameras and included power equipment connected, the recorder is preset to record 24/7. Local recording does not require an internet connection. Your footage stays on the surveillance hard drive in your DVR.

Find the recording you need

Review a camera and time period, use supported motion and event search tools to narrow the search, and export useful recordings through USB for later review or sharing. This gives you a practical way to check a delivery, investigate an after-hours incident or review daily operations. Digital zoom helps you inspect part of an image more closely, although it cannot create detail that was not captured.

Check in when you are away

Connect the recorder to your router for remote viewing from a compatible phone or computer. Check live activity and review recordings without required monthly viewing fees. Remote access requires an internet connection and the appropriate account setup. Keep everyday viewing convenient while retaining local control of your recorded footage.

Surveillance storage included

One 4TB surveillance hard drive comes preinstalled. Recording time depends on the number of cameras, resolution, frame rate, compression and recording schedule. Choose a storage upgrade from the available product options if you need a different configuration; our team can help you plan around the video history you want to keep.

Premade cables and camera power included

The 4 included 100-foot CSP-100HD camera cables provide BNC video connections to the DVR and power connections for the cameras. The package supplies one CSP-9DC12 nine-port power supply. Choose your camera positions, run each cable, connect video to the DVR and connect camera power. Premade connectors keep the installation straightforward. Allow a little extra cable length for routing and slack.

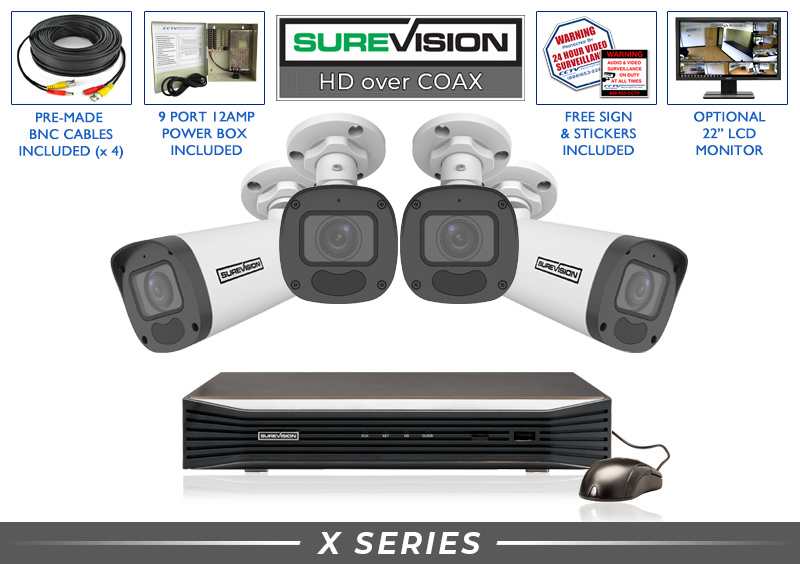

What comes with the system

• 4 SureVision SV-XBV5-N 5MP motorized bullet cameras with audio support
• One SV-DVR8-N 8-channel DVR — free recorder upgrade
• One preinstalled 4TB surveillance hard drive
• 4 premade 100-foot CSP-100HD BNC camera cables
• one CSP-9DC12 nine-port power supply
• Quick-start setup guide
• Access to compatible remote-viewing app and software

The standard included configuration is shown. Storage, cables and other selections follow the product options chosen when ordering.

A few helpful answers

Can I add more cameras?

Yes. The 8-channel DVR leaves 4 inputs available for additional compatible BNC cameras.

Does recording need internet?

No. The DVR records locally. Internet is needed to view the system remotely while away.

Can I reuse existing coax wiring?

Compatible existing coax wiring can often be reused. Contact our team with your current equipment details for help confirming a suitable upgrade.

Explore your system

Browse HD over coax systems
Browse compatible DVRs

Complete technical specifications

Camera and recorder specifications are listed separately below. Available recording modes depend on the combination of camera format, resolution, frame rate, and DVR settings.

Camera specifications • SV-XBV5-N

Recorder specifications • SV-DVR8-N
