SureVision • SV-8HDXBV5-N
8 Camera 5MP HD Over Coax Security Camera System
5MP video. Motorized lens control. Reliable wired recording.
This 8-camera 5MP security camera system pairs bullet cameras with a 16-channel DVR for business or home surveillance. Each camera has a 2.8–12mm motorized lens and infrared night vision up to 164 feet. Record locally and view remotely using the included software and apps, with no monthly viewing fees.
Connect the 8 included cameras and leave 8 BNC inputs available for additional compatible cameras.
Your cameras and recorder
8 5MP bullet cameras • SV-XBV5-N
16-channel DVR • SV-DVR16-N
Adjustable security camera coverage for business and home
Use 8 matching cameras to cover entrances, parking areas, walkways, workspaces, and property boundaries. A wired HD over coax system is also a practical upgrade where suitable coax cabling is already installed.
Choose the view you need
- 2.8–12mm motorized lens: Adjust the scene from a broader overview to a tighter view using compatible recorder controls. Horizontal field of view: 102.4° to 31.4°.
Why choose this 5MP security camera system?
5MP camera detail
View 5MP video from all 8 cameras. The recorder supports 5MP recording at up to 12 fps.
Night vision up to 164 feet
Infrared illumination provides black-and-white video in darkness. Color video needs sufficient available light.
Audio support
Audio operation depends on the supported camera format and recorder mode.
Reuse compatible coax wiring
Connect cameras over suitable coax cable using BNC connections. Camera power uses a separate power connection.
Motorized lens adjustment
Adjust zoom and focus through compatible recorder controls to frame entrances, longer approaches, and other areas of interest.
Digital zoom
Take a closer look at areas of interest in live video or recorded footage.
Indoor and outdoor cameras
IP67 metal housing for indoor and outdoor installation. Protect cable connections from weather.
Clearer backlit views
120dB WDR helps balance brighter and darker areas in the scene.
Local recording and free remote viewing
Store recordings on the DVR and use the included apps for remote viewing. Internet is required for remote access, but local recording works without it.
Motion detection and playback
Use supported motion detection, recording schedules, and playback tools to find events and review footage.
What’s included
- 8 × 5MP bullet security cameras (SV-XBV5-N)
- 16-channel digital video recorder (SV-DVR16-N)
- 4TB surveillance hard drive, preinstalled
- 8 × 100-foot power/video cables (CSP-100HD)
- 18-port power supply (CSP-18DC29)
- Quick-start setup guide
- Free remote viewing software and apps
- USA technical support
Review the system options above for storage, cabling, and monitor selections before ordering.
Professional equipment, backed by people who can help
Your system includes a 3-year product warranty and a 30-day money-back guarantee. Our U.S.-based team can help with camera placement, setup, remote viewing, and future expansion.
Need help planning your coverage? Call 888-653-2288.
Common questions before you choose
Can I use existing coax cables?
Yes, when the cable, connectors, power supply, and cable length support the selected camera resolution and format.
How do the cameras connect?
Each camera connects to a BNC video input on the DVR. Siamese cable carries video and power on separate conductors.
Does this system have microphones?
The cameras support audio with a compatible DVR mode. Contact our team to confirm your recording configuration.
Do I need internet for recording?
No. Local recording uses the DVR hard drive. Internet is required for viewing remotely and receiving supported remote alerts.
Can I add more cameras?
The recorder has 8 unused BNC inputs for additional compatible coax cameras.
How long is footage stored?
Retention depends on hard-drive capacity, resolution, frame rate, compression, camera count, and recording schedule. Ask our team to help size storage for your required retention period.
Explore your system
Browse HD over coax systems
Browse compatible DVRs
Complete technical specifications
Camera and recorder specifications are listed separately below. Available recording modes depend on the combination of camera format, resolution, frame rate, and DVR settings.
Camera specifications • SV-XBV5-N
| Model | SV-XBV5-N |
| Maximum Resolution | 5MP, 2880 × 1620 |
| Image Sensor | 5MP CMOS |
| Lens | Motorized 2.8–12mm varifocal lens |
| Optical Zoom | 4× |
| Horizontal Field of View | 102.4° to 31.4° |
| Minimum Illumination | 0.005 lux in color; 0 lux with IR on |
| Illumination | Smart IR |
| IR Distance | Up to 50m / 164 ft. |
| Video Output | TVI, AHD, CVI and CVBS |
| Frame Rate | 5MP at 20 fps; 4MP at 30 fps; 1080p at 30 fps |
| Wide Dynamic Range | True 120dB WDR |
| Noise Reduction | 3D DNR |
| Digital Defog | Supported |
| Power | 12V DC ±25% |
| Housing | Weatherproof metal housing |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Audio | Product is sold with audio support; confirm the compatible DVR's audio-over-coax mode |
| Motorized Control | Compatible DVR required for supported remote zoom and focus |
| Recorder Match | Confirm 5MP resolution, frame rate, video format and audio support before installation |

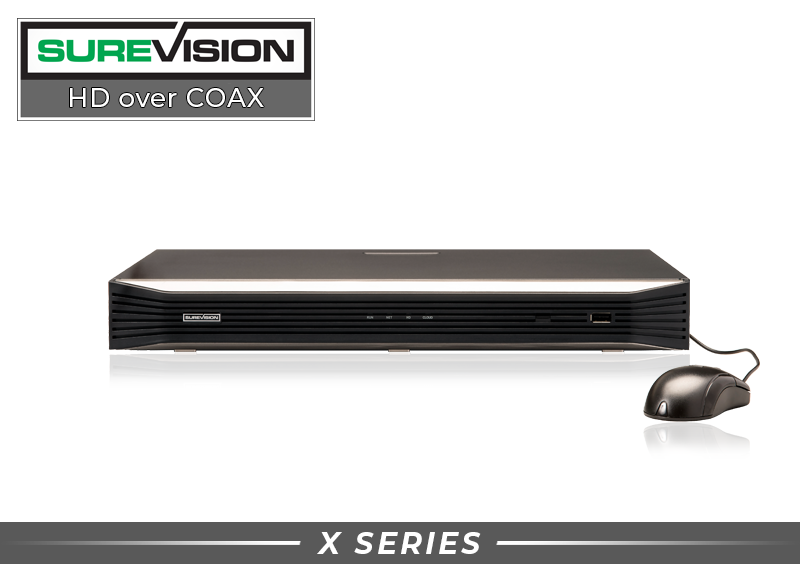

Recorder specifications • SV-DVR16-N
| Model | SV-DVR16-N |
| Included Storage | 4TB preinstalled with this system |
| Video / Audio Input | |
| IP Video Input | 16-ch |
| Analog Video Input | 16-ch, BNC |
| Max IP Video Input | 32-ch, 720P@30fps, CVBS supported |
| BNC Audio Input | 16-ch, channel audio |
| RCA Audio Input | 4-ch |
| Video / Audio Output | |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| BNC Video Output | 1-ch |
| RCA Audio Output | 1-ch |
| Live View Display | 1 / 4 / 6 / 8 / 9 / 25 / 32 |
| Encoding / Decoding | |
| Recording Resolution | 8MP / 5MP / 4MP / 1080P / 720P / D1 |
| Recording Frame Rate | 8MP@8fps, 5MP@12fps, 4MP@15fps, 1080P@25fps, 720P@30fps; sub stream D1 |
| Audio Sample Rate | 8 kHz, 16 bit per channel |
| Audio Bit Rate | 64 Kbps per channel |
| Decoding Capability | Analog: 8 × 8MP@8, 8 × 5MP@12, 8 × 4MP@15, 8 × 1080P@25, 16 × 720P@30; IP: 2 × 8MP@30, 4 × 4MP@30, 8 × 1080P@30, 16 × 720P@30 |
| Coaxial Cable | |
| Audio over Coaxial Cable | 16-ch, one-way audio (TVI) |
| Two-Way Audio | |
| Two-Way Audio | 1-ch, RCA (using the audio input and output) |
| Snapshot | |
| FTP / Schedule / Event Snapshot | 16-ch snapshot, up to 704 × 576 resolution |
| Network | |
| Incoming Bandwidth | 80 Mbps (up to 112 Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 160 Mbps |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Smart | |
| Analog Smart by XVR | Ultra Motion Detection (UMD), SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection |
| IP Smart by IPC | Face Detection, SIP, Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking |
| VCA Search | Face Search, Behavior Search |
| Smart Functions by XVR | 16-ch (UMD), 8-ch (SIP), 2-ch (Face Detection) |
| Alarm | |
| General Alarm | Motion |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording / Snapshot Abnormal |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Included Hard Drive | 4TB preinstalled with this system |
| Capacity | Up to 16 TB for each HDD |
| External Interface | |
| Network Interface | 1 RJ45 10 M / 100 M / 1000 M self-adaptive Ethernet interface |
| RS232 | N/A |
| Alarm In | 8-ch |
| Alarm Out | 4-ch |
| Power Supply | DC 12 V / 5 A |
| Working Environment | |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 38W |
| Weight (without HDD) | ≤ 2.3 kg (5.07 lb) |
| Dimensions | 380 mm × 326 mm × 53 mm (15.0" × 12.8" × 2.1") |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
